| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.13 - 0.4mm |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Insulation Mate: | PET | Performance: | Reinforced Insulation |
|---|---|---|---|
| Conductor: | Round Copper | Color: | Yellow/blue/red |
| Product Name: | Ultra Fine TIW Triple Insulated Wire Magnet Wire 0.13 - 0.4mm For Industrial | Key Word: | Ultra Fine TIW Triple Insulated Wire Magnet Wire 0.13 - 0.4mm For Industrial |
| Highlight: | insulated magnet wire,tiw wire |
||

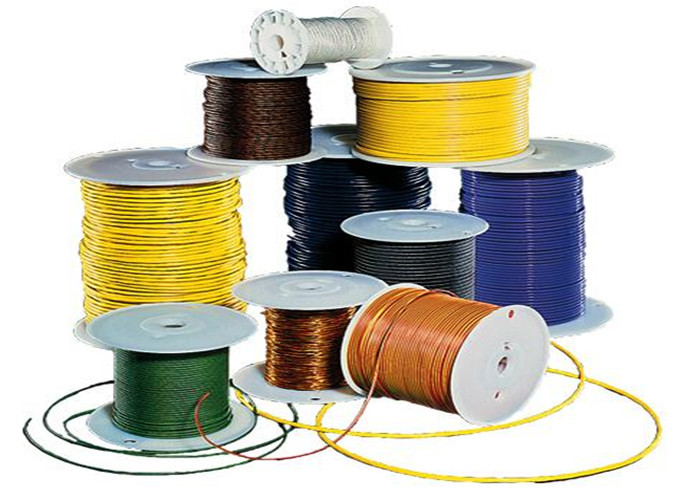

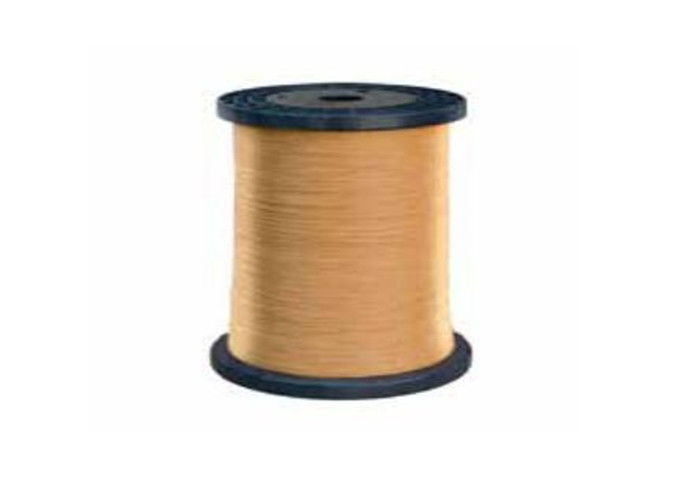

Ultra Fine TIW Triple Insulated Wire Magnet Wire 0.13 - 0.4mm For Industrial
The main advantage of the TIW wires is relatively high electric strength of the insulation, with breakdown voltage min. 6kV. Obtaining such a high resistance was possible by the use of a reinforced, three-layer conductor insulation. Third external insulation made of polyamide gives excellent flexibility and high mechanical resistance of the wire. Normally, TIW wires are produced in thermal class B. Fully automated manufacturing process provides a central position of conductor and the same thickness of insulation at any point of the wire.
FEATURES AND BENEFITS
The integration of a special thin-film conductor into the transformer’s conductor reduces eddy-current losses generated inside the conductor, thereby resulting in low overall losses.
Space saving is achieved due to the high performance of Litz-type wires. Winding wires is easier due to excellent flexibility.
While retaining excellent ease of peeling, which is a major feature of the TIW series, peeling from the conductor is facilitated by the improved specifications of the tape material.
Direct soldering can be done without stripping off the insulation.
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,UL Approved, RoHS Directive Met
APPLICATIONS
SPECIFICATION
|
|
Outside Diameter(mm) |
Max Conductor |
Standard Weight (g/m) |
||
|
Insulation Type |
Reinforced Insulation |
Reinforced Insulation |
|||
|
Conductor Size (mm) |
TIW-2 |
TIW-3 |
TIW-2 |
TIW-3 |
|
|
0.33 |
0.53 ±0.04 |
0.53 ±0.04 |
284.3 |
0.76 |
0.76 |
|
0.36 |
0.55 ±0.04 |
0.56 ±0.04 |
236.6 |
0.94 |
0.94 |
|
0.41 |
0.60 ±0.04 |
0.61 ±0.04 |
179.8 |
1.19 |
1.19 |
|
0.46 |
0.64 ±0.04 |
0.64 ±0.04 |
143.8 |
1.48 |
1.48 |
|
0.51 |
0.69 ±0.04 |
0.69 ±0.04 |
114.8 |
1.78 |
1.78 |
|
0.56 |
0.73 ±0.04 |
0.74 ±0.04 |
94.3 |
2.13 |
2.13 |
|
0.61 |
0.78 ±0.04 |
0.78 ±0.04 |
79.5 |
2.52 |
2.52 |
|
0.65 |
0.82 ±0.04 |
0.82 ±0.04 |
69.6 |
2.78 |
2.78 |
|
0.71 |
0.88 ±0.04 |
0.88 ±0.04 |
57.9 |
3.29 |
3.29 |
|
0.81 |
0.96 ±0.04 |
0.98 ±0.04 |
44.4 |
4.31 |
4.31 |
|
0.91 |
1.10 ±0.04 |
1.10 ±0.04 |
34.9 |
5.52 |
5.52 |
