| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2*7 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100000/week |
| Product Name: | CLASS B / F Triple Insulated Litz Wire 0.2*7 Mm High Purity Copper YellowCustom Triple Insulated Litz Wire 7 Strands High Voltage Litz Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Diameter: | 0.2mm | Conductor Material: | Copper |
| Key Word: | Custom Triple Insulated Litz Wire 7 Strands High Voltage Litz Wire | Strands: | 7 |
| Highlight: | 7 Strands Triple Insulated Litz Wire,Custom Triple Insulated Litz Wire,High Voltage Triple Insulated Litz Wire |
||

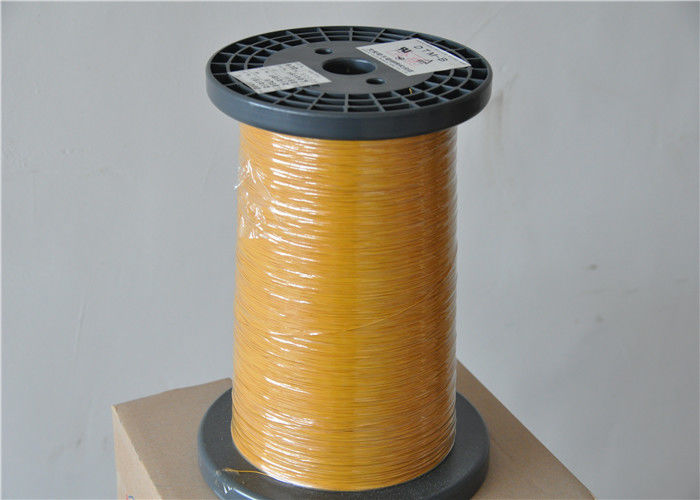

Custom Triple Insulated Litz Wire 7 Strands High Voltage Litz Wire
Ruiyuan understands that customization is key in today's market. That's why we offer a wide range of color options for our triple-insulated wires, allowing you to choose from traditional yellow as well as blue, pink, green, black, red, and more. This color flexibility not only helps with organization and identification, but also allows you to consider aesthetics in your projects. In addition, we offer both single-strand and multi-strand wire options, ensuring you have the right solution for your application. Our team is dedicated to working with you to customize the wire to your specifications, ensuring you receive exactly what you want.
|
Characteristics
|
Test Standard
|
Conclusion
|
|
Package
|
Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete
|
OK
|
|
Bare Wire Diameter
|
0.20±0.01MM
|
0.194-0.197
|
|
Overall Diameter
|
0.83-0.920MM
|
0.860-0.879
|
|
Conductor Resistance
|
MAX: 88.50Ω/KM
|
85.60Ω/KM
|
|
Breakdown voltage of straight wire
|
The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV
|
OK
|
|
Breakdown voltage of bending wire
|
The length of wire 305mm , Test condition:1mA/60S/4.5KV
|
OK
|
|
Breakdown voltage of twist wire
|
The length of wire 125mm , Test condition: 50HZ/1mA/60S/AC10KV
|
OK
|
|
Elongation
|
MIN:20%
|
23.8-26.9%
|
|
Solder ability
|
430 3-4 Secs
|
OK
|
|
Conclusion
|
Qualified
|
|
