| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2*7 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100000/week |
| Product Name: | CLASS B / F Triple Insulated Litz Wire 0.2*7 Mm High Purity Copper Yellow | Thermal Rating: | 130 |
|---|---|---|---|
| Diameter: | 0.2mm | Conductor Material: | Copper |
| Key Word: | CLASS B / F Triple Insulated Litz Wire 0.2*7 Mm High Purity Copper Yellow | Strands: | 7 |
| Highlight: | Yellow Triple Insulated Wire,0.2*7 Mm Triple Insulated Wire,High Purity Copper Triple Insulated Wire |
||

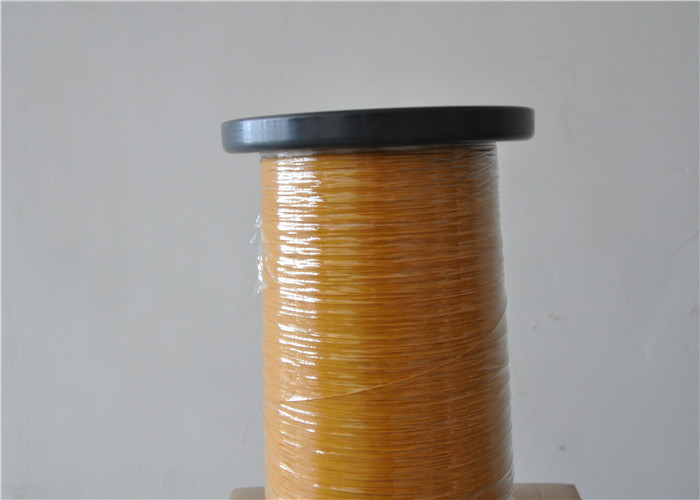

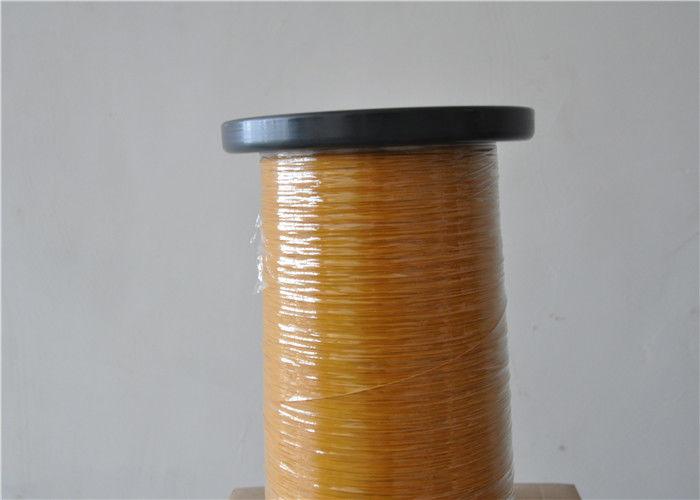

CLASS B / F Triple Insulated Litz Wire 0.2*7 Mm High Purity Copper Yellow
One of the outstanding features of our triple insulated wire is its superior voltage resistance, capable of withstanding voltages of over 6,000 volts. This high voltage resistance makes it ideal for high-voltage transformers, where safety and efficiency are top priorities. Triple insulation not only increases the durability of the wire, but also minimizes the risk of electrical failure, making it the preferred choice for engineers and manufacturers in the high-voltage field. Whether you are working in power generation, distribution or industrial applications, our TIW wire can meet your specific needs.
|
Characteristics
|
Test Standard
|
Conclusion
|
|
Package
|
Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete
|
OK
|
|
Bare Wire Diameter
|
0.20±0.01MM
|
0.194-0.197
|
|
Overall Diameter
|
0.83-0.920MM
|
0.860-0.879
|
|
Conductor Resistance
|
MAX: 88.50Ω/KM
|
85.60Ω/KM
|
|
Breakdown voltage of straight wire
|
The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV
|
OK
|
|
Breakdown voltage of bending wire
|
The length of wire 305mm , Test condition:1mA/60S/4.5KV
|
OK
|
|
Breakdown voltage of twist wire
|
The length of wire 125mm , Test condition: 50HZ/1mA/60S/AC10KV
|
OK
|
|
Elongation
|
MIN:20%
|
23.8-26.9%
|
|
Solder ability
|
430 3-4 Secs
|
OK
|
|
Conclusion
|
Qualified
|
|
