| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.4 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100000/week |
| Product Name: | 0.4mm TIW Wire Triple Insulated Wire Copper Conductor For High Voltage Transformer | Thermal Rating: | 130 |
|---|---|---|---|
| Diameter: | 0.4mm | Conductor Material: | Copper |
| Key Word: | 0.4mm TIW Wire Triple Insulated Wire Copper Conductor For High Voltage Transformer | ||
| Highlight: | Copper Conductor Triple Insulated Wire,0.4mm Triple Insulated Wire,High Voltage Transformer Triple Insulated Wire |
||

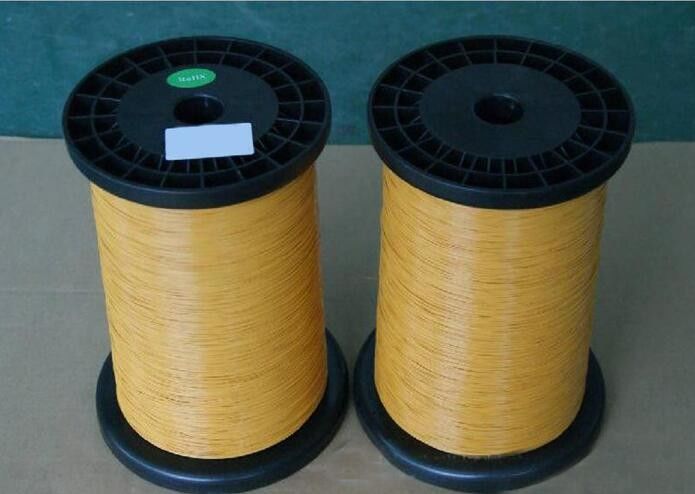

0.4mm TIW Wire Triple Insulated Wire Copper Conductor For High Voltage Transformer
The triple insulated wire is the ultimate solution for high-voltage applications, offering superior performance, customization options, and cross-industry versatility. With our commitment to quality and innovation, you can trust that our TIW wire will meet your needs and exceed your expectations. Whether you are in the renewable energy sector, the automotive industry, or any other field that requires high-voltage solutions, Ruiyuan will support you every step of the way. Choose Ruiyuan's triple-insulated wire for your next project and experience the difference in quality and performance.
|
Characteristics |
Test Standard |
Conclusion |
|
Bare Wire Diameter |
0.40±0.010MM |
0.399 |
|
Overall Diameter |
0.60±0.020MM |
0.599 |
|
Conductor Resistance |
MAX: 145.3Ω/KM |
136.46Ω/KM |
|
Breakdown voltage |
AC 6KV/60S no crack |
OK |
|
Elongation |
MIN:20% |
33.4 |
|
Solder ability |
420±10℃ 2-10Secs |
ok |
|
Conclusion |
Breakdown voltage |
OK |
