| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.4 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100000/week |
| Product Name: | ISO/UL Certificated Three-Layer Insulated Winding Wire For High Frequency Transformer | Thermal Rating: | 130 |
|---|---|---|---|
| Diameter: | 0.4mm | Conductor Material: | Copper |
| Key Word: | ISO/UL Certificated Three-Layer Insulated Winding Wire For High Frequency Transformer | ||
| Highlight: | Transformer Three Layer Insulated Winding Wire,High Frequency Transformer Winding Wire,Three-Layer Insulated Winding Wire |
||

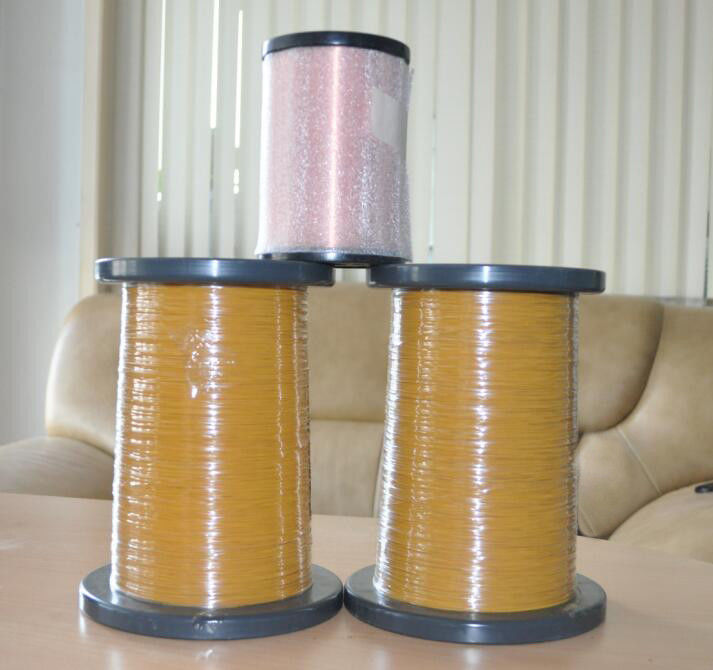

ISO/UL Certificated Three-Layer Insulated Winding Wire For High Frequency Transformer
we pride ourselves on our commitment to quality and innovation. Our triple-insulated wire is manufactured using the latest technology and adheres to strict quality control standards. This ensures that every meter of wire produced meets the highest performance standards, giving you peace of mind during your project. Our experienced team is always available to provide technical support and guidance to help you select the right product for your specific application.
|
Characteristics |
Test Standard |
Conclusion |
|
Bare Wire Diameter |
0.40±0.010MM |
0.399 |
|
Overall Diameter |
0.60±0.020MM |
0.599 |
|
Conductor Resistance |
MAX: 145.3Ω/KM |
136.46Ω/KM |
|
Breakdown voltage |
AC 6KV/60S no crack |
OK |
|
Elongation |
MIN:20% |
33.4 |
|
Solder ability |
420±10℃ 2-10Secs |
ok |
|
Conclusion |
Breakdown voltage |
OK |
