| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.4 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100000/week |
| Product Name: | Triple Insulated Wire TIW -B ISO/UL 0.4mm Copper Motor Winding Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Diameter: | 0.4mm | Conductor Material: | Copper |
| Key Word: | Triple Insulated Wire TIW -B ISO/UL 0.4mm Copper Motor Winding Wire | ||
| Highlight: | Copper Motor Winding Triple Insulated Wire,0.4mm Triple Insulated Wire,Copper Motor Winding Wire |
||

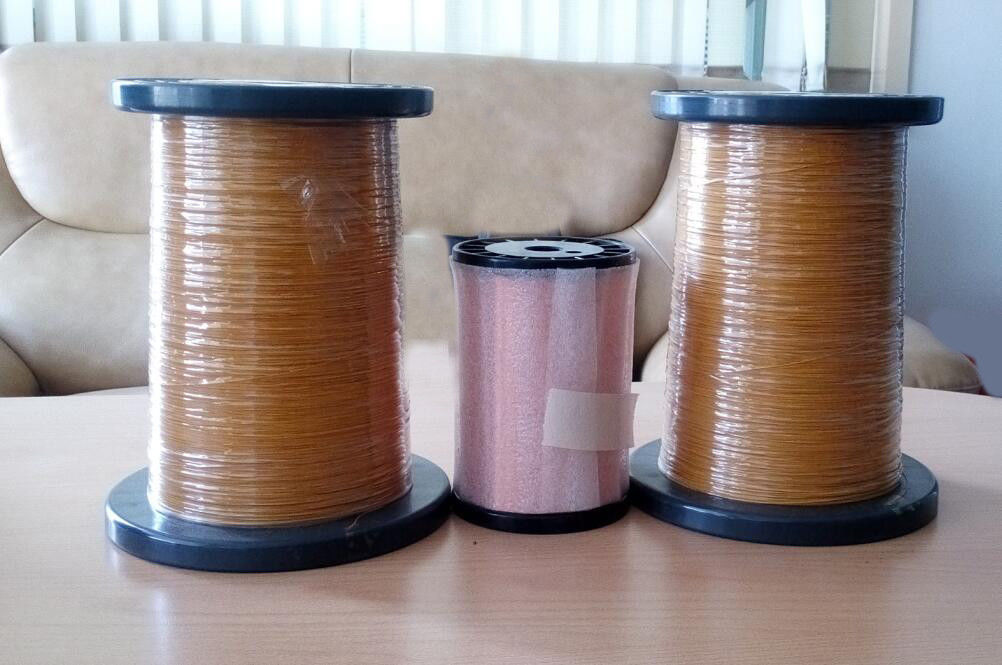

Triple Insulated Wire TIW -B ISO/UL 0.4mm Copper Motor Winding Wire
we offer a variety of insulation materials, including ETFE and PTFE. These advanced insulation options provide enhanced heat and chemical resistance, making our TIW wire suitable for a wide range of industrial applications. Whether you are dealing with extreme temperatures, corrosive environments, or high-frequency signals, our triple-insulated wire will perform reliably under pressure. This versatility makes it an excellent choice for industries such as renewable energy, automotive, aerospace, and telecommunications.
|
Characteristics
|
Test Standard
|
Conclusion
|
|
Bare Wire Diameter
|
0.40±0.010MM
|
0.399
|
|
Overall Diameter
|
0.60±0.020MM
|
0.599
|
|
Conductor Resistance
|
MAX: 145.3Ω/KM
|
136.46Ω/KM
|
|
Breakdown voltage
|
AC 6KV/60S no crack
|
OK
|
|
Elongation
|
MIN:20%
|
33.4
|
|
Solder ability
|
420±10℃ 2-10Secs
|
ok
|
|
Conclusion
|
Breakdown voltage
|
OK
|
