| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Ultrafine 0.09mm Hot Wind Self-bonding Enameled Copper Wire Solid Conductor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | Ultrafine 0.09mm Hot Wind Self-bonding Enameled Copper Wire Solid Conductor |
| Highlight: | Hot Wind Enameled Copper Wire,0.09mm Enameled Copper Wire,Solid conductor Enameled Copper Wire |
||

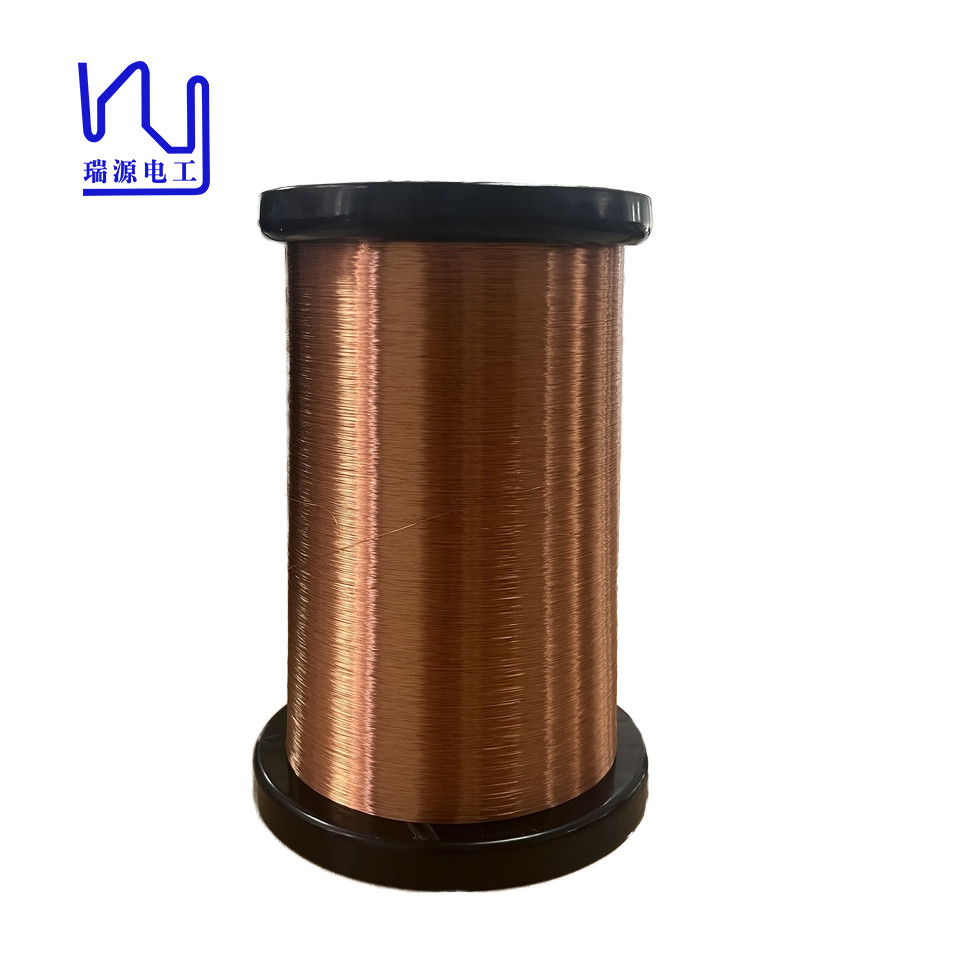

Ultrafine 0.09mm Hot Wind Self-bonding Enameled Copper Wire Solid conductor
This self-bonding enameled copper wire represents a significant advancement in magnet wire technology. With its self-bonding properties, high temperature resistance, and versatility in application, it is poised to become a staple material in the production of coils and other electromagnetic components. Whether you are in the automotive industry, consumer electronics, or any field that requires reliable and efficient wiring solutions, our self-bonding enameled copper wire is the perfect choice for you.
|
Test Item |
Unit |
Standard Value |
Reality Value |
|||
|
|
|
|
Min |
Ave |
Max |
|
|
Conductor dimensions |
mm |
0.090±0.002 |
0.090 |
0.090 |
0.090 |
|
|
(Basecoat dimensions) Overall dimensions |
mm |
Max. 0.116 |
0.114 |
0.1145 |
0.115 |
|
|
Insulation Film Thickness |
mm |
Min0.010 |
0.014 |
0.0145 |
0.015 |
|
|
Bonding Film Thickness |
mm |
Min0.006 |
0.010 |
0.010 |
0.010 |
|
|
(50V/30m) Continuity of covering |
pcs. |
Max.60 |
Max.0 |
|||
|
Flexibility |
|
/ |
/ |
|||
|
Adherence |
|
|
Good |
|||
|
Breakdown Voltage |
V |
Min.3000 |
Min.4092 |
|||
|
Resistance to Softening (Cut Through) |
℃ |
Continue 2 times pass |
200℃/Good |
|||
|
(390℃±5℃) Solder test |
s |
/ |
/ |
|||
|
Bonding Strength |
g |
Min.9 |
19 |
|||
|
(20℃) Electrical Resistance |
Ω /Km |
Max.2834 |
2717 |
2718 |
2719 |
|
|
Elongation |
% |
Min.20 |
24 |
25 |
25 |
|
|
Breaking Load |
N |
Min |
/ |
/ |
/ |
|
|
Surface appearance |
|
Smooth coloury |
Good |
|||
