| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Hot Air/Solevent Self Bonding Enameled Copper Wire For Voice Coils | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | Hot Air/Solevent Self Bonding Enameled Copper Wire For Voice Coils |
| Type: | Hot Air/Solevent Self Bonding Enameled Copper Wire For Voice Coils | ||
| Highlight: | Solevent Self Bonding Enameled Copper Wire,Hot Air self bonding copper wire,Voice Coils self bonding copper wire |
||

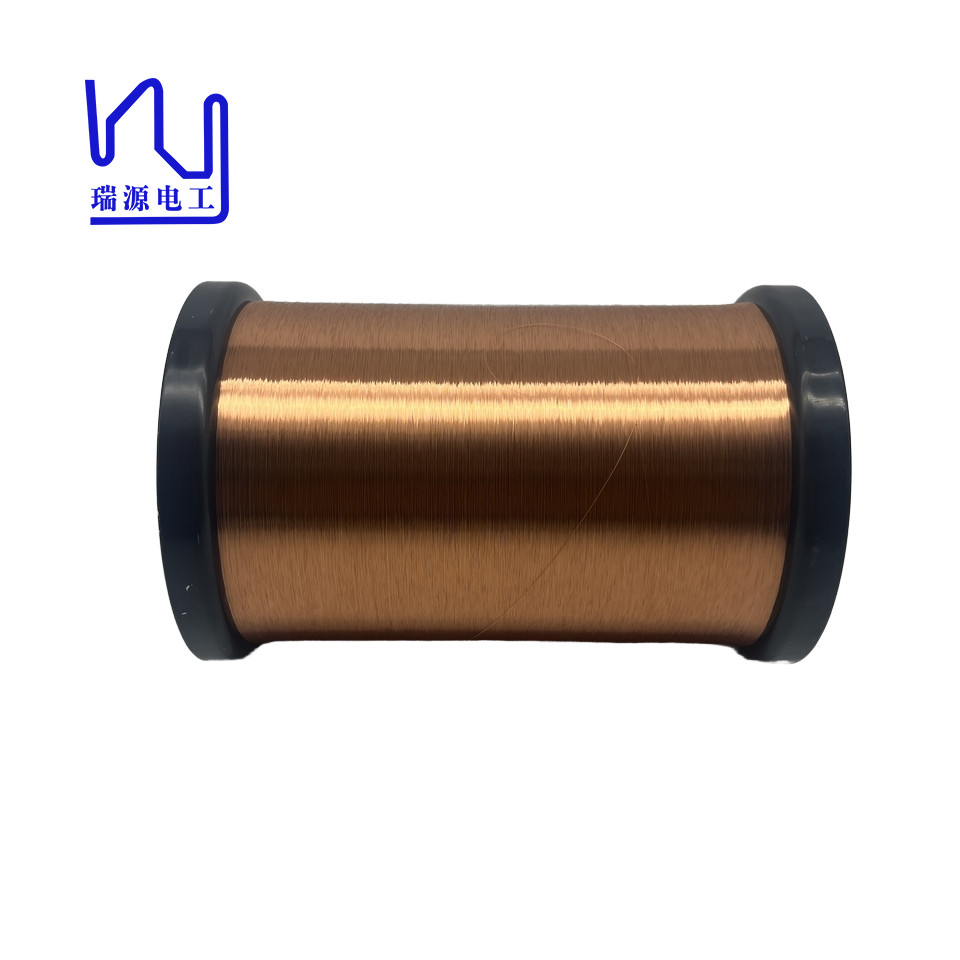

Hot air/Solevent Self Bonding Enameled Copper Wire for Voice Coils
There is a big variety of self bonding wire types available. The different base coats and self bonding overcoats are described in different standards.
These super self bonding wire can be applied to stepping motors for quartz watches, instrument coils, voice coils, Sensors, Transponders, etc.
| Test Item | Unit | Technical requests | Reality Value | ||
| Min. | Ave | Max | |||
| Conductor dimensions | mm | 0.090±0.002 | 0.090 | 0.090 | 0.090 |
| (Basecoat dimensions) Overall dimensions | mm | Max.0.116 | 0.114 | 0.1145 | 0.115 |
| Insulation Film Thickness | mm | Min. 0.010 | 0.014 | 0.0145 | 0.015 |
| Bonding Film Thickness | mm | Min. 0.006 mm | 0.010 | 0.010 | 0.010 |
| Continuity of covering(50V/30m) | pcs | Max.60 | Max.0 | ||
| Adhesive | Coating layer is good | Good | |||
| Conductor Resistance(20℃) | Ω/km | Max.2834 | 2717 | 2718 | 2719 |
| Elongation | % | Min.20 | 24 | 25 | 25 |
| Breakdown Voltage | V | Min.3000 | Min.4092 | ||
| Bonding Strength | g | Min.9 | 19 | ||
