| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.09mm Hot Wind Self Bonding Self Adhesive Enameled Coated Copper Wire For Coils | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | 0.09mm Hot Wind Self Bonding Self Adhesive Enameled Coated Copper Wire For Coils |
| Type: | 0.09mm Hot Wind Self Bonding Self Adhesive Enameled Coated Copper Wire For Coils | ||
| Highlight: | Hot Wind Self Bonding Wire,Coils Self Bonding Wire,0.09mm Self Bonding Wire |
||

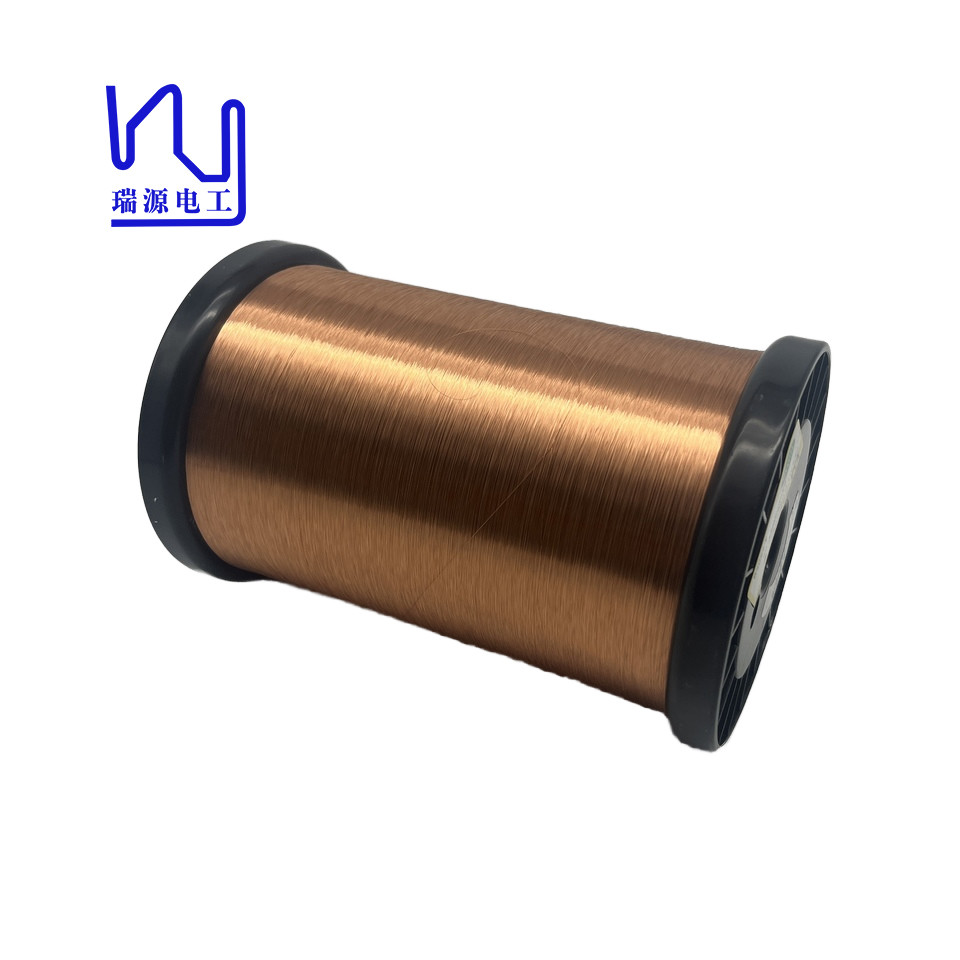

0.09mm Hot Wind Self Bonding Self Adhesive Enameled Coated Copper Wire For Coils
In the world of electronics and audio engineering, precision and reliability are crucial. We are proud to introduce our latest innovation: self-adhesive enameled copper wire.
With a diameter of only 0.09 mm and a temperature rating of 155 degrees Celsius, the wire is designed to meet the demanding needs of a variety of applications, including voice coil wire, speaker wire and instrument pickup winding wire.
| Test Item | Unit | Technical requests | Reality Value | ||
| Min. | Ave | Max | |||
| Conductor dimensions | mm | 0.090±0.002 | 0.090 | 0.090 | 0.090 |
| (Basecoat dimensions) Overall dimensions | mm | Max.0.116 | 0.114 | 0.1145 | 0.115 |
| Insulation Film Thickness | mm | Min. 0.010 | 0.014 | 0.0145 | 0.015 |
| Bonding Film Thickness | mm | Min. 0.006 mm | 0.010 | 0.010 | 0.010 |
| Continuity of covering(50V/30m) | pcs | Max.60 | Max.0 | ||
| Adhesive | Coating layer is good | Good | |||
| Conductor Resistance(20℃) | Ω/km | Max.2834 | 2717 | 2718 | 2719 |
| Elongation | % | Min.20 | 24 | 25 | 25 |
| Breakdown Voltage | V | Min.3000 | Min.4092 | ||
| Bonding Strength | g | Min.9 | 19 | ||
