| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | PU Super Thin 0.09mm Self-bonding Enameled Copper Wire Winding | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | PU Super Thin 0.09mm Self-bonding Enameled Copper Wire Winding |
| Highlight: | 0.09mm Self Bonding Wire,PU Self Bonding Wire,Winding Self Bonding Wire |
||

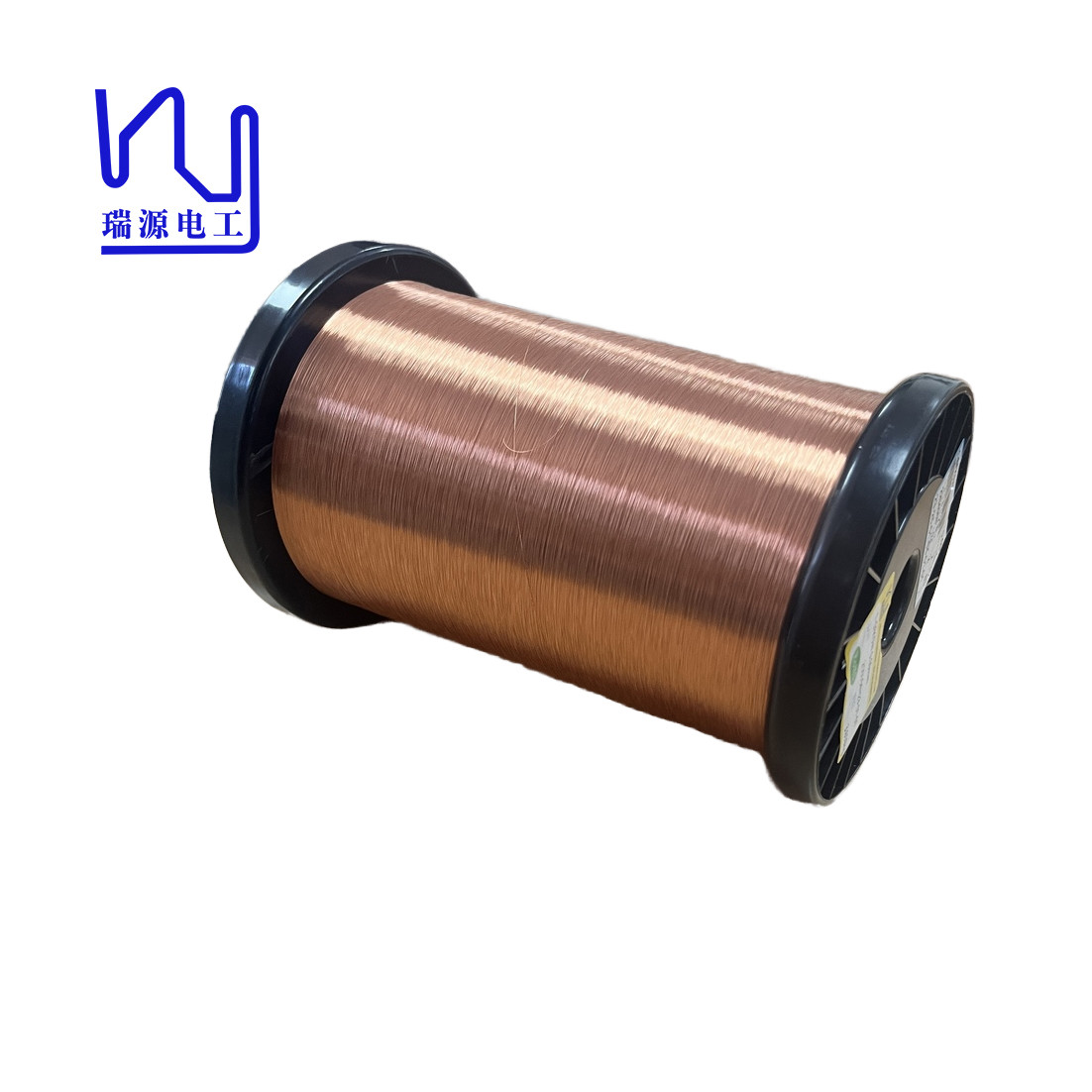

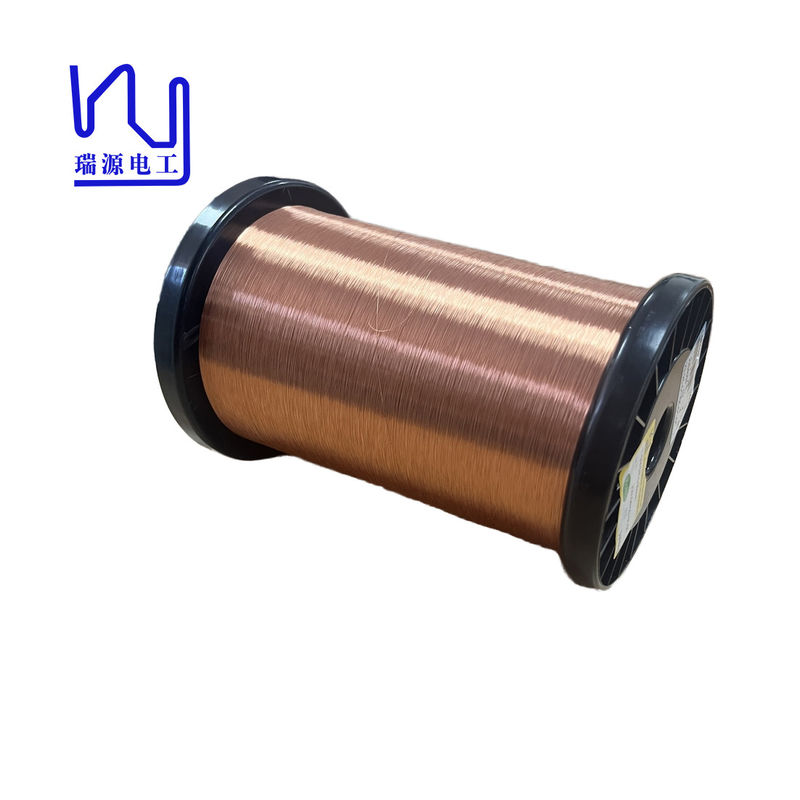

PU Super thin 0.09mm Self-bonding Enameled Copper Wire Winding
In addition to hot air type, we also offer solvent self-bonding enameled copper wire to meet a wider range of applications and preferences. For those who need more versatility, we offer 180 degree wire option, allowing for greater flexibility in design and implementation. This adaptability makes our self-bonding enameled copper wire suitable for a variety of industries, including automotive, consumer electronics, and industrial machinery.
|
Test Item |
Unit |
Standard Value |
Reality Value |
|||
|
|
|
|
Min |
Ave |
Max |
|
|
Conductor dimensions |
mm |
0.090±0.002 |
0.090 |
0.090 |
0.090 |
|
|
(Basecoat dimensions) Overall dimensions |
mm |
Max. 0.116 |
0.114 |
0.1145 |
0.115 |
|
|
Insulation Film Thickness |
mm |
Min0.010 |
0.014 |
0.0145 |
0.015 |
|
|
Bonding Film Thickness |
mm |
Min0.006 |
0.010 |
0.010 |
0.010 |
|
|
(50V/30m) Continuity of covering |
pcs. |
Max.60 |
Max.0 |
|||
|
Flexibility |
|
/ |
/ |
|||
|
Adherence |
|
|
Good |
|||
|
Breakdown Voltage |
V |
Min.3000 |
Min.4092 |
|||
|
Resistance to Softening (Cut Through) |
℃ |
Continue 2 times pass |
200℃/Good |
|||
|
(390℃±5℃) Solder test |
s |
/ |
/ |
|||
|
Bonding Strength |
g |
Min.9 |
19 |
|||
|
(20℃) Electrical Resistance |
Ω /Km |
Max.2834 |
2717 |
2718 |
2719 |
|
|
Elongation |
% |
Min.20 |
24 |
25 |
25 |
|
|
Breaking Load |
N |
Min |
/ |
/ |
/ |
|
|
Surface appearance |
|
Smooth coloury |
Good |
|||
