| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.09mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Self Bonding Fine Round 0.02 Mm Enamelled Copper Speaker Voice Coil Winding Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.09mm |
| Conductor Material: | Copper | Key Word: | Self Bonding Fine Round 0.02 Mm Enamelled Copper Speaker Voice Coil Winding Wire |
| Type: | Self Bonding Fine Round 0.02 Mm Enamelled Copper Speaker Voice Coil Winding Wire | ||
| Highlight: | Self Bonding Enamelled Copper Wire,Fine Round Enamelled Copper Wire,0.02 mm Enamelled Copper Wire |
||

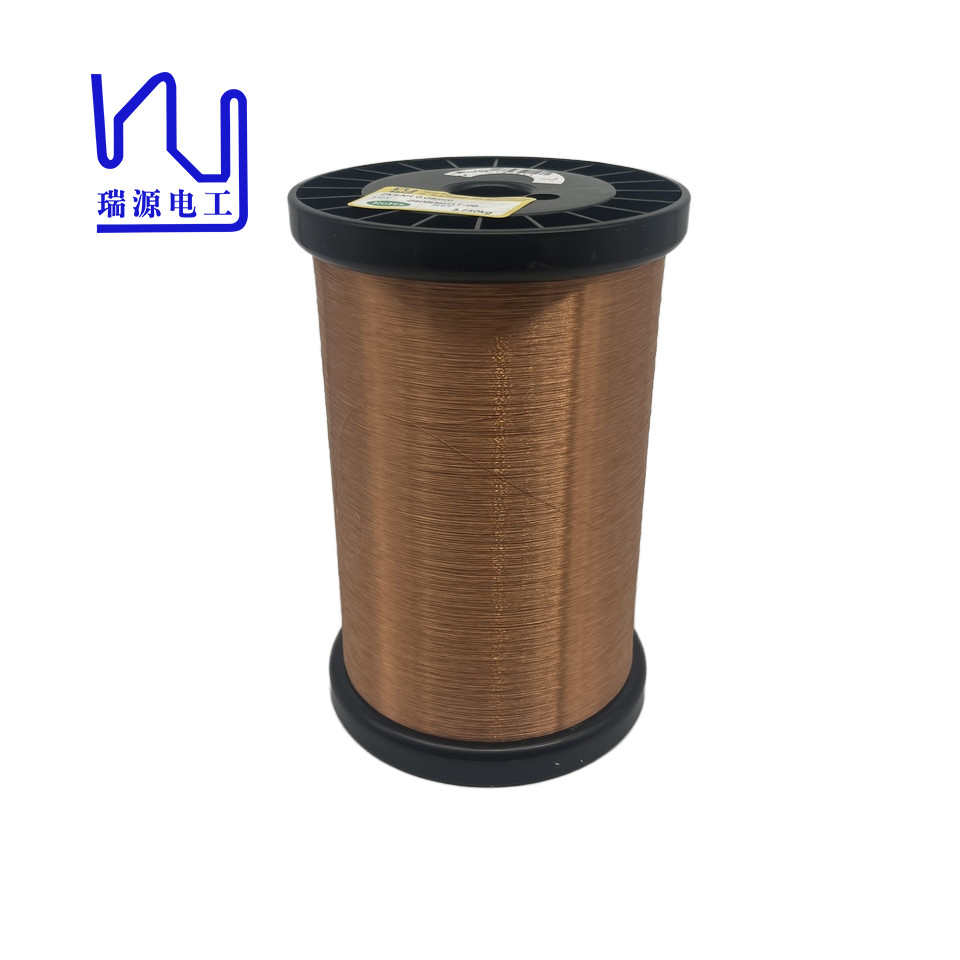

Self Bonding Fine Round 0.02 mm Enamelled Copper Speaker Voice Coil Winding Wire
Our self-adhesive enamelled copper wire not only provides superior performance, it also simplifies the assembly process, making it an essential component for professionals in the field.
This enameled copper wire is designed for optimal performance. The hot air self-adhesive type can achieve a seamless bonding effect after being activated by a heat gun. The wire's thin diameter ensures it can be used in tight spaces without compromising conductivity or performance.
| Test Item | Unit | Technical requests | Reality Value | ||
| Min. | Ave | Max | |||
| Conductor dimensions | mm | 0.090±0.002 | 0.090 | 0.090 | 0.090 |
| (Basecoat dimensions) Overall dimensions | mm | Max.0.116 | 0.114 | 0.1145 | 0.115 |
| Insulation Film Thickness | mm | Min. 0.010 | 0.014 | 0.0145 | 0.015 |
| Bonding Film Thickness | mm | Min. 0.006 mm | 0.010 | 0.010 | 0.010 |
| Continuity of covering(50V/30m) | pcs | Max.60 | Max.0 | ||
| Adhesive | Coating layer is good | Good | |||
| Conductor Resistance(20℃) | Ω/km | Max.2834 | 2717 | 2718 | 2719 |
| Elongation | % | Min.20 | 24 | 25 | 25 |
| Breakdown Voltage | V | Min.3000 | Min.4092 | ||
| Bonding Strength | g | Min.9 | 19 | ||
