Product Name: | 0.09mm 0.08mm Bondable Copper Magnetic Wire For Speaker Coil | Thermal Rating: | 155 |
---|---|---|---|
Insulation Material: | Polyurethane | Diameter: | 0.09mm |
Conductor Material: | Copper | Key Word: | 0.09mm 0.08mm Bondable Copper Magnetic Wire For Speaker Coil |
Type: | 0.09mm 0.08mm Bondable Copper Magnetic Wire For Speaker Coil | ||
Highlight: | 0.08mm Bondable Copper Magnetic Wire,0.09mm Bondable Copper Magnetic Wire,Speaker Coil Bondable Copper Magnetic Wire |

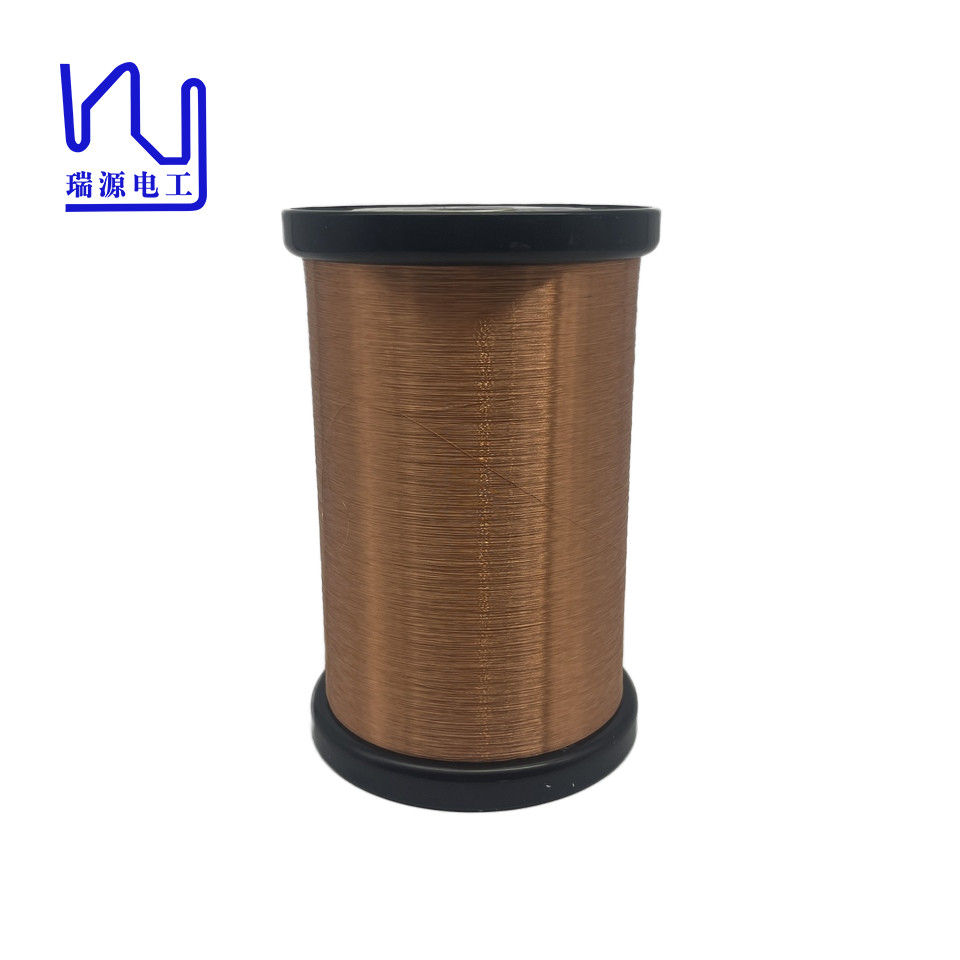

0.09mm 0.08mm Bondable Copper Magnetic Wire for Speaker Coil
We are capable of providing enameled copper wires with size range from 0.011mm-0.8mm, class 155/ class 180. They are widely used in transformer, motor and other electric devices.
We are one of the pioneers in producing super thin enameled wires below 0.03mm in China. We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. If you need sample, just leave us message or contact us directly.
Test Item | Unit | Technical requests | Reality Value | ||
Min. | Ave | Max | |||
Conductor dimensions | mm | 0.090±0.002 | 0.090 | 0.090 | 0.090 |
(Basecoat dimensions) Overall dimensions | mm | Max.0.116 | 0.114 | 0.1145 | 0.115 |
Insulation Film Thickness | mm | Min. 0.010 | 0.014 | 0.0145 | 0.015 |
Bonding Film Thickness | mm | Min. 0.006 mm | 0.010 | 0.010 | 0.010 |
Continuity of covering(50V/30m) | pcs | Max.60 | Max.0 | ||
Adhesive | Coating layer is good | Good | |||
Conductor Resistance(20℃) | Ω/km | Max.2834 | 2717 | 2718 | 2719 |
Elongation | % | Min.20 | 24 | 25 | 25 |
Breakdown Voltage | V | Min.3000 | Min.4092 | ||
Bonding Strength | g | Min.9 | 19 |
