| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08x1700 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Triple Insulated Wire TIW Litz Wire 0.08mm*1700 Copper Conductor | Thermal Rating: | 155 |
|---|---|---|---|
| Diameter: | 0.08mm | Conductor Material: | Copper |
| Key Word: | Triple Insulated Wire TIW Litz Wire 0.08mm*1700 Copper Conductor | Strands: | 1700 |
| Highlight: | 0.08mm*1700 Copper conductor TIW litz wire,0.08mm*1700 TIW litz wire,Triple Insulated Wire TIW litz wire |
||

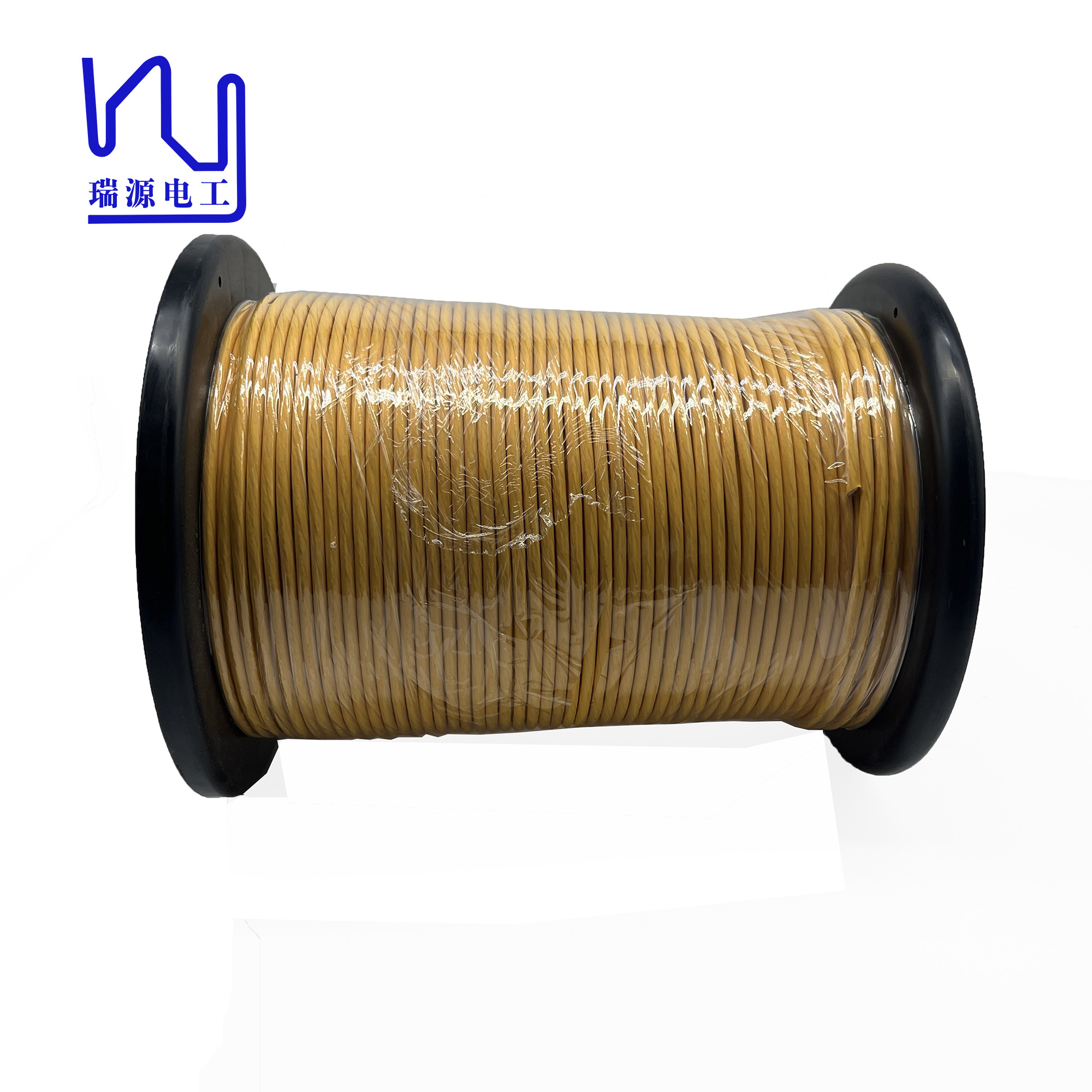

triple insulated wire TIW litz wire 0.08mm*1700 Copper conductor
Our products should be used in High frequency transformers, toroidal coil and special transformers which can withstand high voltage or thin thickness as power transformers of cell phone charger, laptop and special medical equipments.
Comparison table of dimensional parameters of insulated wire (table C)
| FTIW-F-Y 0.08*1700 | |||||
|
Specification (nominal diameter of conductor * number of strands) |
Single line [mm] | LITZ WIRE | |||
|
Conductor tolerance |
Min.paint film thickness |
Finished outside diameter |
molding |
Twist [MM] |
|
|
0.08*1700 |
0.08±0.003 |
0.003 |
0.086-0.097 |
0.08*68 | S1=45±3 |
| 0.08*68*5 | S2=45±3 | ||||
| 0.08*68*5*5 | S3=66±5 | ||||
| 0.08*1700 Finished product line | |||||
|
Temperature resistance grade ℃ |
Straight weldability [s] (430℃±10℃) Max. |
resistance [Ω/m] (20℃) Max. |
Withstand voltage AC to stranded wire (Leakage current 5mA) Min. |
Thickness of single insulating layer(mm) |
Max.finished outside diameter[mm] |
|
155 |
6 |
2.29 |
6000 |
0.11±0.01 |
4.80 |
