| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08x1700 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Litz Wrie Triple Insulated Wire 0.08mm*1700 Copper Conductor | Thermal Rating: | 155 |
|---|---|---|---|
| Diameter: | 0.08mm | Conductor Material: | Copper |
| Key Word: | Litz Wrie Triple Insulated Wire 0.08mm*1700 Copper Conductor | Strands: | 1700 |
| Highlight: | 0.08mm triple insulated copper wire,0.08mm Triple Insulated Wire,Copper conductor Triple Insulated Wire |
||

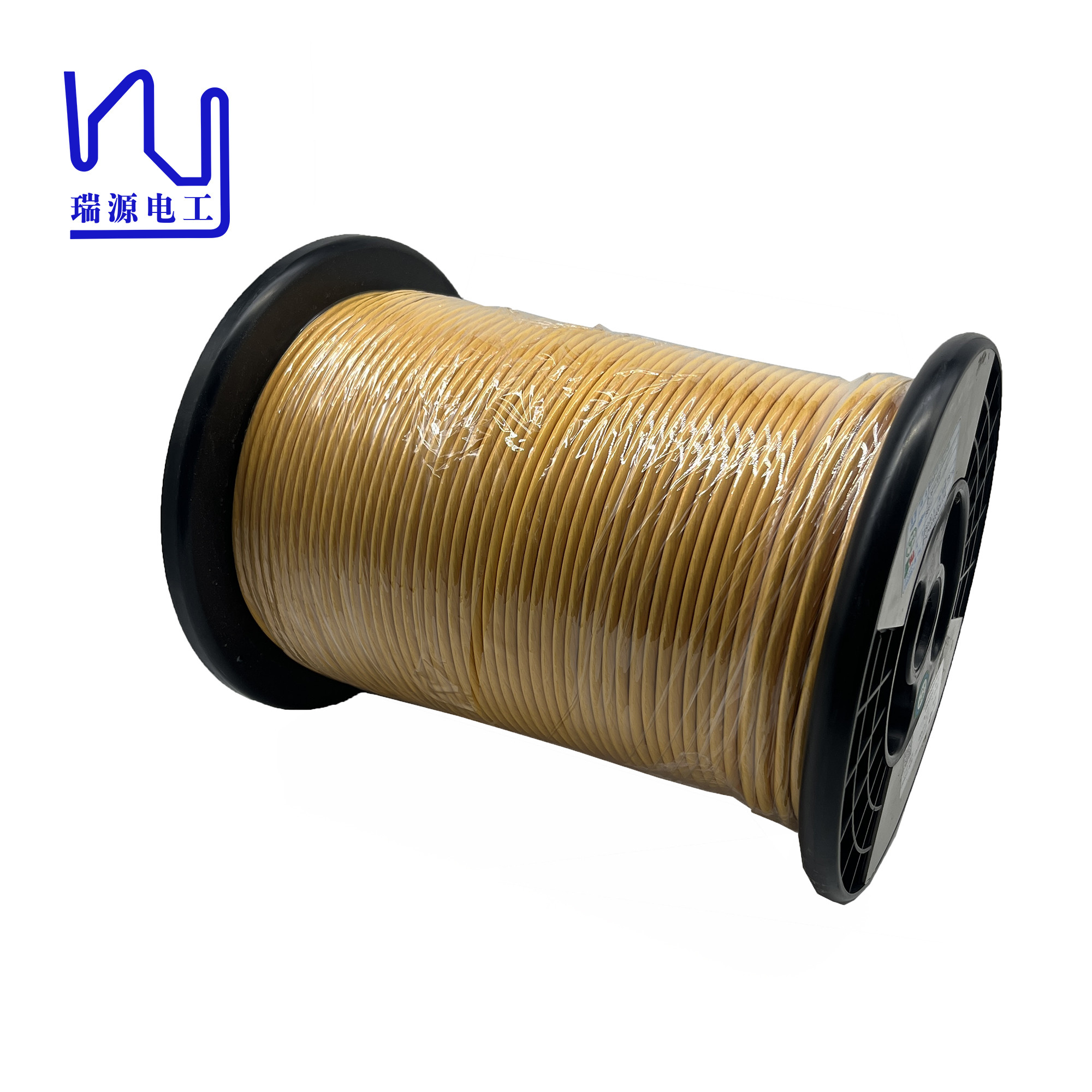

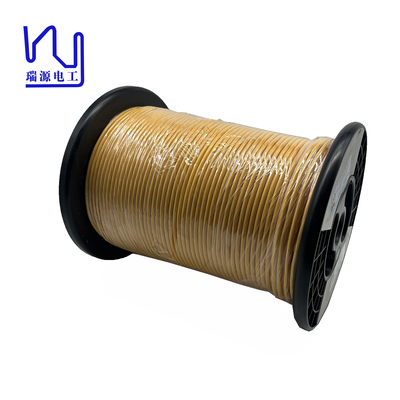

litz wrie triple insulated wire 0.08mm*1700 Copper conductor
ETFE triple insulated wire is engineered to perform well in a wide range of applications from the aerospace and automotive industries to medical devices and consumer electronics. Its excellent insulation properties make it an excellent choice for high-frequency signal transmission, power distribution and control systems.
The triple-insulated design provides enhanced protection against electrical breakdown, ensuring reliable performance even in the most challenging conditions. Whether in harsh industrial environments or critical medical equipment, our ETFE triple insulated wire provides unparalleled reliability and durability.
Comparison table of dimensional parameters of insulated wire (table C)
| FTIW-F-Y 0.08*1700 | |||||
|
Specification (nominal diameter of conductor * number of strands) |
Single line [mm] | LITZ WIRE | |||
|
Conductor tolerance |
Min.paint film thickness |
Finished outside diameter |
molding |
Twist [MM] |
|
|
0.08*1700 |
0.08±0.003 |
0.003 |
0.086-0.097 |
0.08*68 | S1=45±3 |
| 0.08*68*5 | S2=45±3 | ||||
| 0.08*68*5*5 | S3=66±5 | ||||
| 0.08*1700 Finished product line | |||||
|
Temperature resistance grade ℃ |
Straight weldability [s] (430℃±10℃) Max. |
resistance [Ω/m] (20℃) Max. |
Withstand voltage AC to stranded wire (Leakage current 5mA) Min. |
Thickness of single insulating layer(mm) |
Max.finished outside diameter[mm] |
|
155 |
6 |
2.29 |
6000 |
0.11±0.01 |
4.80 |
