| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08x1700 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | ETFE Muti- Strands Triple Insulated Wire 0.08mm*1700 TIW Litz Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Diameter: | 0.08mm | Conductor Material: | Copper |
| Key Word: | ETFE Muti- Strands Triple Insulated Wire 0.08mm*1700 TIW Litz Wire | Strands: | 1700 |
| Highlight: | Muti Strands triple insulated litz wire,0.08mm Triple Insulated Wire,ETFE Triple Insulated Wire |
||

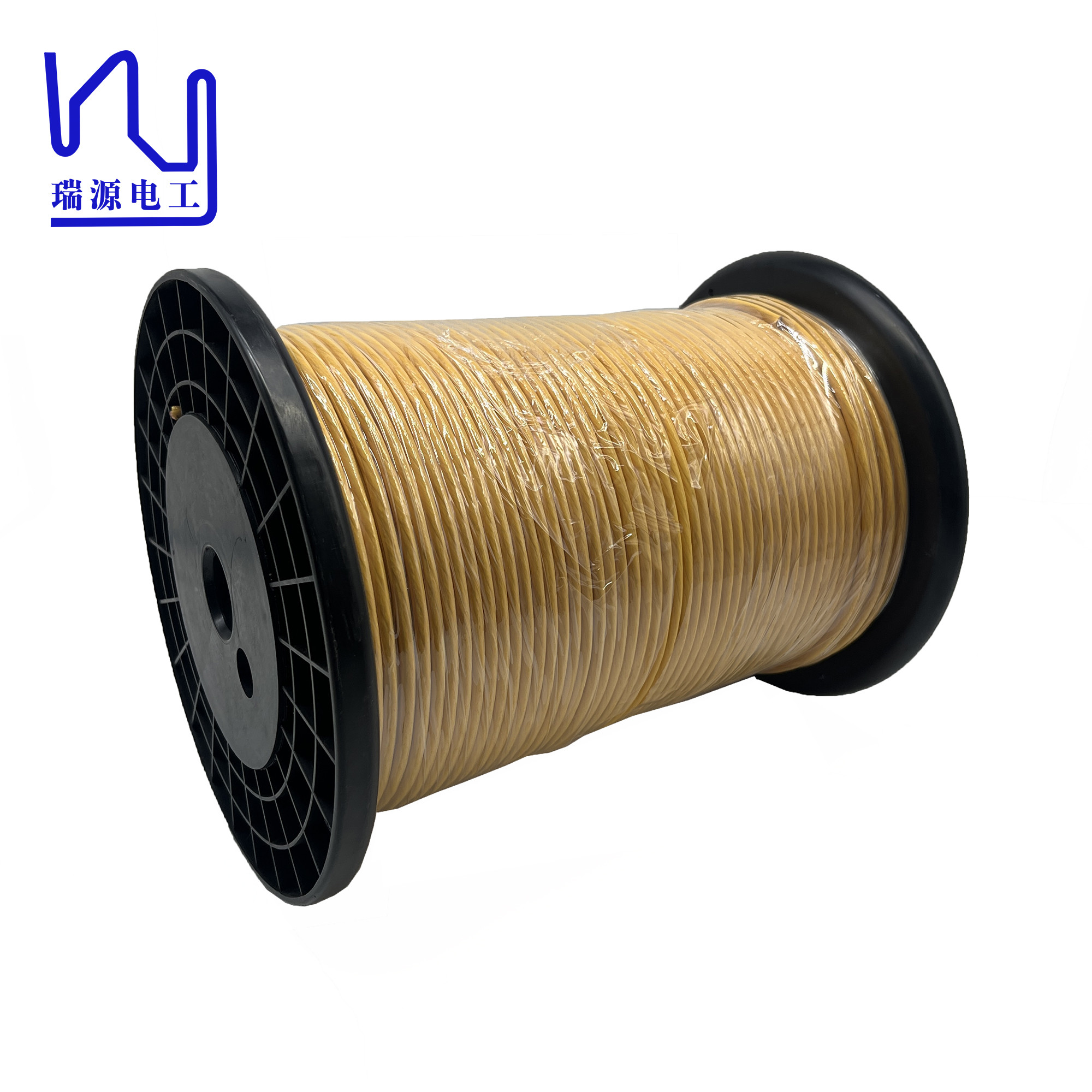

ETFE Muti- strands triple insulated wire 0.08mm*1700 TIW litz wire
This triple insulated litz wire has a single wire diameter of 0.08mm and consists of 1700 strands, all wrapped in ETFE insulation. But what exactly is ETFE insulation? What are its advantages? ETFE, or ethylene tetrafluoroethylene, is a fluoropolymer with excellent thermal, mechanical and chemical properties. Its high dielectric strength and ability to withstand harsh environments make it ideal for demanding applications.
Comparison table of dimensional parameters of insulated wire (table C)
| FTIW-F-Y 0.08*1700 | |||||
|
Specification (nominal diameter of conductor * number of strands) |
Single line [mm] | LITZ WIRE | |||
|
Conductor tolerance |
Min.paint film thickness |
Finished outside diameter |
molding |
Twist [MM] |
|
|
0.08*1700 |
0.08±0.003 |
0.003 |
0.086-0.097 |
0.08*68 | S1=45±3 |
| 0.08*68*5 | S2=45±3 | ||||
| 0.08*68*5*5 | S3=66±5 | ||||
| 0.08*1700 Finished product line | |||||
|
Temperature resistance grade ℃ |
Straight weldability [s] (430℃±10℃) Max. |
resistance [Ω/m] (20℃) Max. |
Withstand voltage AC to stranded wire (Leakage current 5mA) Min. |
Thickness of single insulating layer(mm) |
Max.finished outside diameter[mm] |
|
155 |
6 |
2.29 |
6000 |
0.11±0.01 |
4.80 |
