| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.15mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Copper Stranded Litz Wire Triple Insulated Wire For High Voltage Transformer | Thermal Rating: | 130 |
|---|---|---|---|
| Diameter: | 0.15mm | Conductor Material: | Copper |
| Key Word: | Copper Stranded Litz Wire Triple Insulated Wire For High Voltage Transformer | ||
| Highlight: | 0.3mm Triple Insulated Wire,0.15mm Triple Insulated Wire,0.2mm Triple Insulated Wire |
||

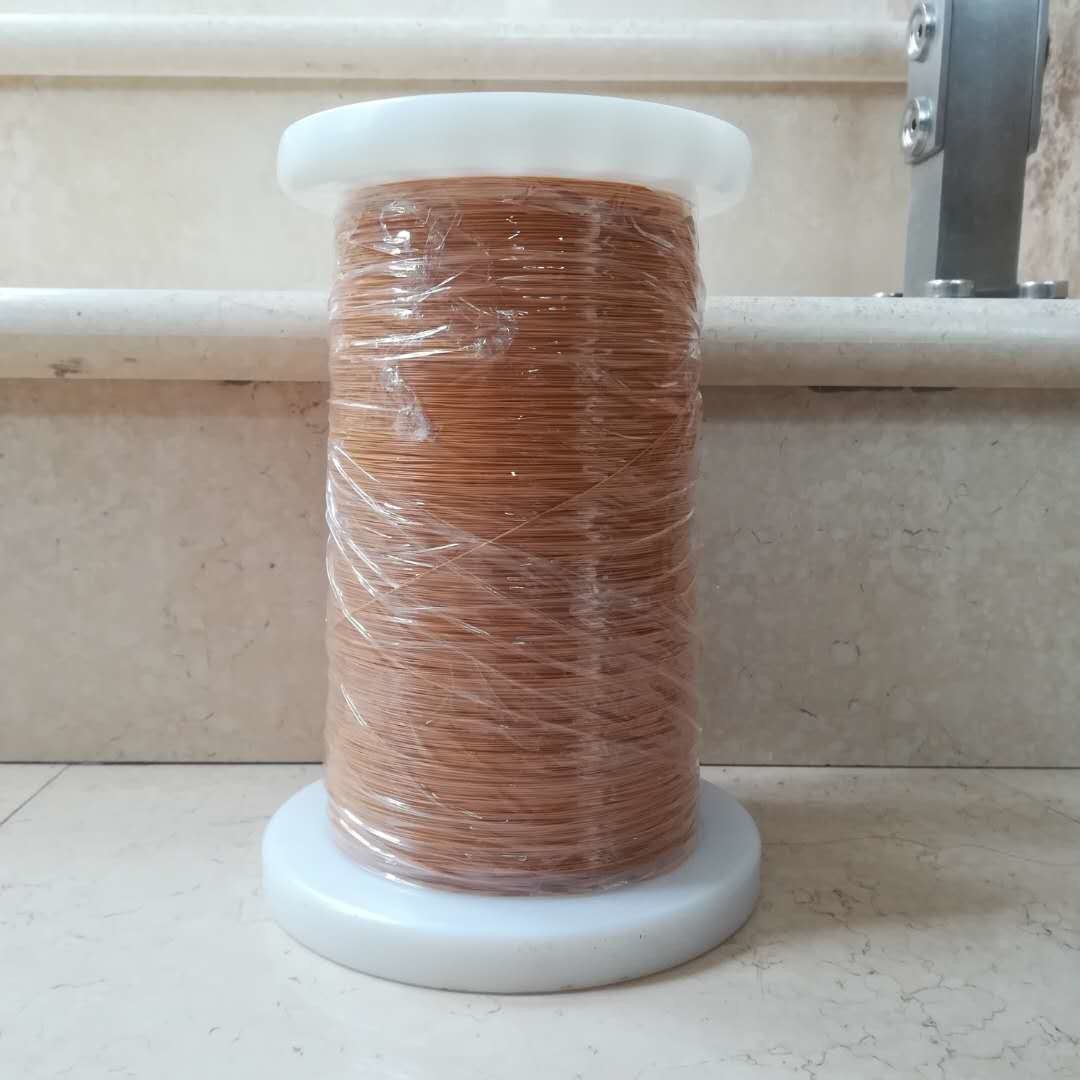

TIW -B ISO/UL 0.15mm 0.2mm 0.3mm TIW wire ETFE/PET Triple Insulated Wire
Triple insulated wire is specifically designed to withstand and safely handle high voltages. The multiple layers of insulation in triple insulated wire provide enhanced protection and insulation properties, making it suitable for use in high voltage applications.
The combination of the base insulation, reinforced insulation, and barrier insulation in triple insulated wire helps to prevent electrical leakage, reduce the risk of short circuits, and improve the overall safety and reliability of the wire. These layers of insulation are chosen for their superior dielectric strength and electrical resistance, allowing the wire to withstand high voltage levels without breakdown or failures.
| Characteristics | Test Standard | Conclusion |
| Bare Wire Diameter | 0.15±0.008MM | 0.145-0.155 |
| Overall Diameter | 0.35±0.020MM | 0.345-0.355 |
| Conductor Resistance | 879.3-1088.70Ω/KM | 1043.99Ω/KM |
| Breakdown voltage | AC 6KV/60S no crack | OK |
| Elongation | MIN:15% | 19.4-22.9% |
| Solder ability | 420±10℃ 2-10Secs | OK |
| Adhesion | Pull and break at a constant speed, and the exposed copper of the wire should not exceed 3mm | |
