| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.3mm*7 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | TIW-B TIW-F Triple Insulated Wire For High Voltage Transformers | Thermal Rating: | 130 |
|---|---|---|---|
| Diameter: | 0.1mm | Conductor Material: | Copper |
| Key Word: | TIW-B TIW-F Triple Insulated Wire For High Voltage Transformers | ||
| Highlight: | High Voltage Triple Insulated Wire,TIW-F Triple Insulated Wire,TIW-B Triple Insulated Wire |
||

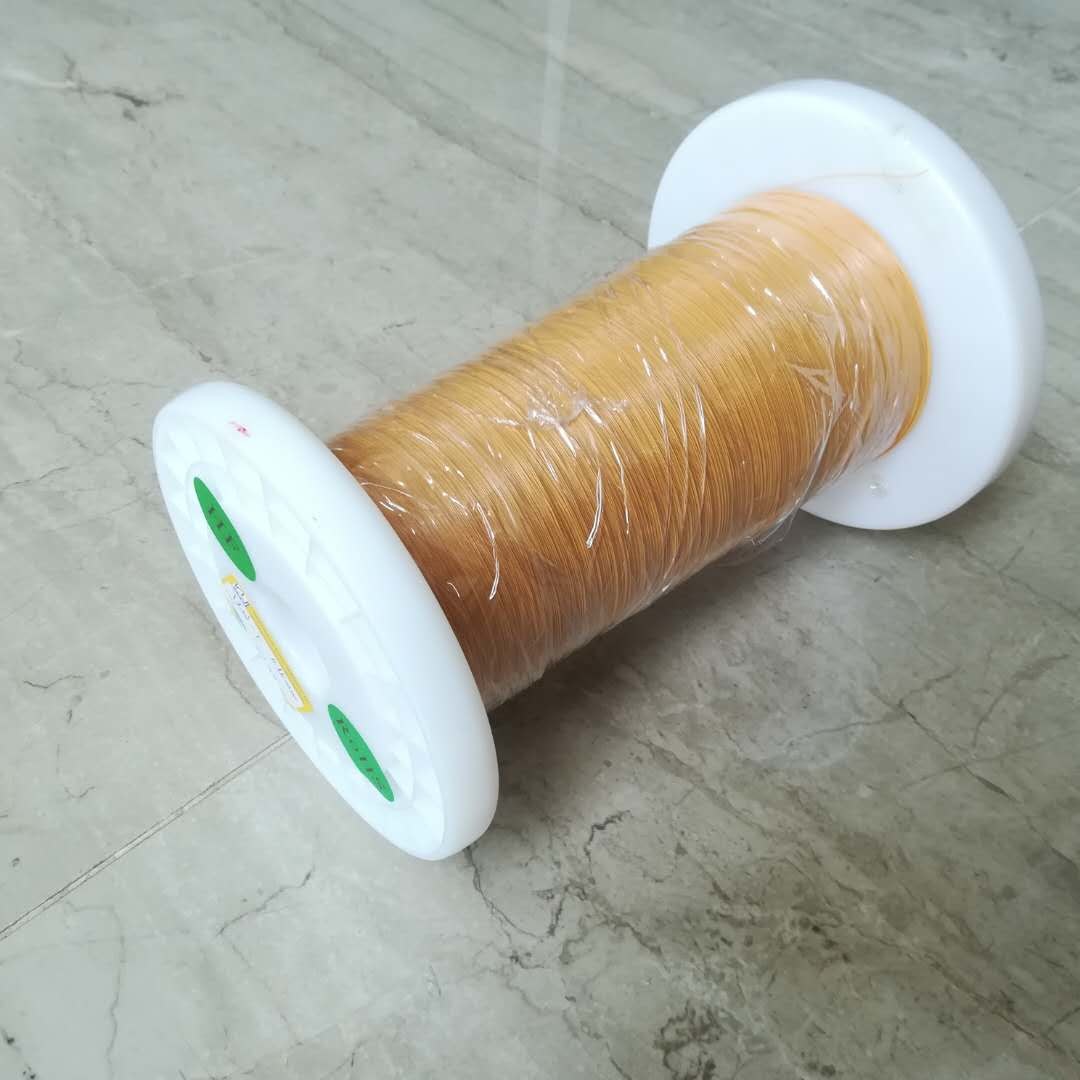

TIW-B TIW-F Triple Insulated Wire For High Voltage Transformers
Triple insulated wire, also known as triple insulated winding wire, is a type of electrical wire that is designed specifically for high voltage transformer windings. The term "triple insulated" refers to the multiple layers of insulation that are present on the wire, providing enhanced electrical safety and insulation properties.
We offer single conductor triplex wires and twisted triplex wires, standard packaging is 3000 meters per reel.
| Characteristics | Test Standard | Conclusion |
| Overall Diameter | /MM(MAX) | 0.302 |
| Insualtion thickness | /MM(Min) | 0.02 |
| Tolerance | 0.30±0.003mm | 0.30 |
| Pitch | S13±2 | OK |
| Overall dimension | 1.130MM(MAX) | 1.130 |
| Insulation thickness | 0.12±0.02MM(Min) | 0.12 |
| Pinhole | 0Max | 0 |
| Resistance | 37.37Ω/KM(Max) | 36.47 |
| Breakdown voltage | 6KV(Min) | 13.66 |
| Solder ability ±10℃ | 450 3Secs | OK |
