| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.3mm*7 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Copper Stranded Litz Wire Triple Insulated Wire For High Voltage Transformer | Thermal Rating: | 130 |
|---|---|---|---|
| Diameter: | 0.1mm | Conductor Material: | Copper |
| Key Word: | Copper Stranded Litz Wire Triple Insulated Wire For High Voltage Transformer | ||
| Highlight: | Copper Stranded Litz Wire,Triple Insulated Wire,High Voltage Transformer Wire |
||

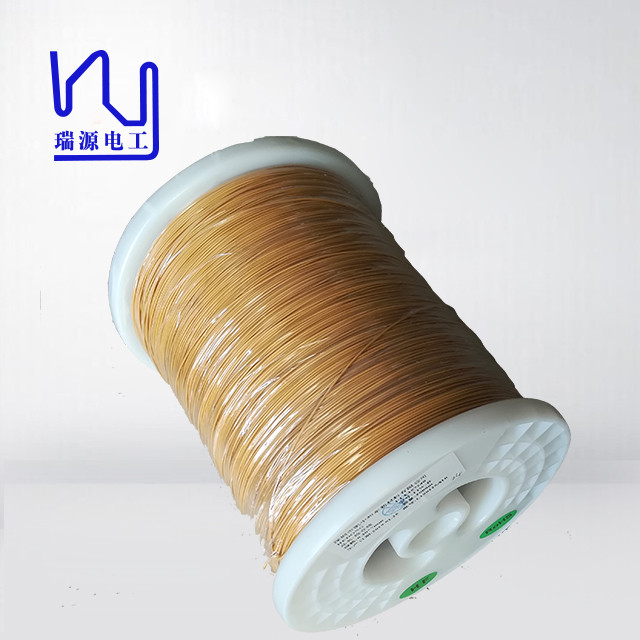

Copper Stranded Litz Wire Triple Insulated Wire For High Voltage Transformer
PTFE Triple Insulated Wire (FTIW) offers an excellent set of properties that make it ideal for a variety of applications. Its triple insulation design, coupled with the excellent properties of , provides superior corrosion resistance, electrical insulation, flame retardancy and aging resistance.
Whether used in aerospace, automotive, chemical processing or other industries, FTIW wire delivers reliable performance and durability, making it ideal for demanding applications.
| Characteristics | Test Standard | Conclusion |
| Overall Diameter | /MM(MAX) | 0.302 |
| Insualtion thickness | /MM(Min) | 0.02 |
| Tolerance | 0.30±0.003mm | 0.30 |
| Pitch | S13±2 | OK |
| Overall dimension | 1.130MM(MAX) | 1.130 |
| Insulation thickness | 0.12±0.02MM(Min) | 0.12 |
| Pinhole | 0Max | 0 |
| Resistance | 37.37Ω/KM(Max) | 36.47 |
| Breakdown voltage | 6KV(Min) | 13.66 |
| Solder ability ±10℃ | 450 3Secs | OK |
