| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.3mm*7 |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 7 Stranded Copper Triple Insulated Wire For Special Transformer | Thermal Rating: | 130 |
|---|---|---|---|
| Diameter: | 0.1mm | Conductor Material: | Copper |
| Key Word: | 7 Stranded Copper Triple Insulated Wire For Special Transformer | ||
| Highlight: | Special Transformer Triple Insulated Wire,7 Stranded Triple Insulated Wire,7 Stranded Copper Triple Insulated Wire |
||

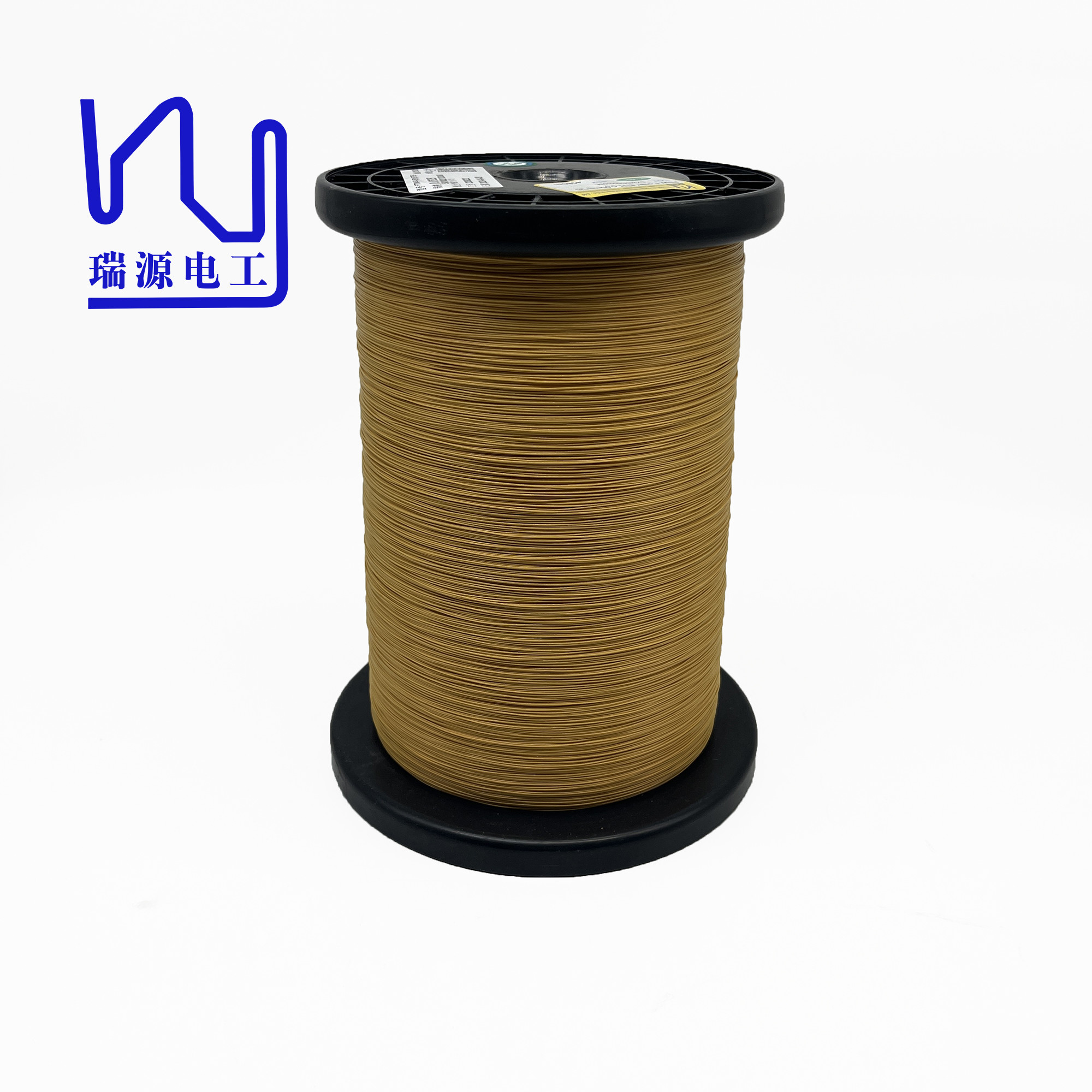

7 Stranded Copper Triple Insulated Wire for Special Transformer
The feature of three-layer insulated wire is its excellent flame retardancy and aging resistance. The PTFE material used in the insulation is inherently flame retardant, providing extra safety in the event of a fire. Additionally, the wire has excellent aging resistance, ensuring a long service life and minimal performance degradation over time. These properties make FTIW wire a reliable and durable solution for applications where safety and longevity are priorities.
| Characteristics | Test Standard | Conclusion |
| Overall Diameter | /MM(MAX) | 0.302 |
| Insualtion thickness | /MM(Min) | 0.02 |
| Tolerance | 0.30±0.003mm | 0.30 |
| Pitch | S13±2 | OK |
| Overall dimension | 1.130MM(MAX) | 1.130 |
| Insulation thickness | 0.12±0.02MM(Min) | 0.12 |
| Pinhole | 0Max | 0 |
| Resistance | 37.37Ω/KM(Max) | 36.47 |
| Breakdown voltage | 6KV(Min) | 13.66 |
| Solder ability ±10℃ | 450 3Secs | OK |
