| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.18mm |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.18mm 0.20mm Alcohol Self Adhesive Enameled Copper Winding Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.18mm |
| Conductor Material: | Copper | Key Word: | 0.18mm 0.20mm Alcohol Self Adhesive Enameled Copper Winding Wire |
| Type: | 0.18mm 0.20mm Alcohol Self Adhesive Enameled Copper Winding Wire | ||
| Highlight: | 32 gauge enameled copper winding wire,self bonding enameled copper winding wire,0.20mm enamel winding wire |
||

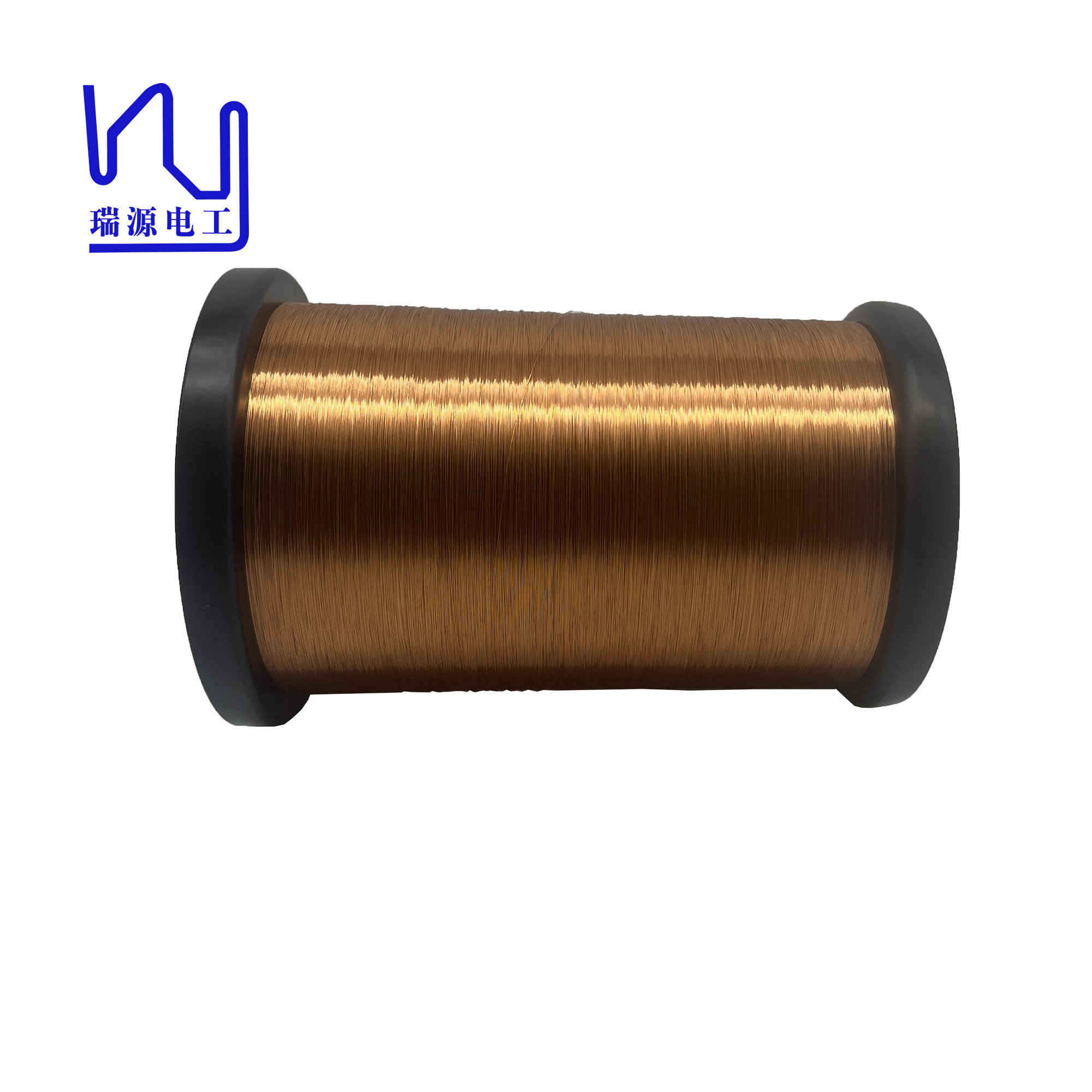

0.18mm 0.20mm Alcohol Self Adhesive Enameled Copper Winding Wire
The applications for this type of wire are almost limitless. From electronics to telecommunications, automobiles to electrical appliances, 0.2mm solvent self-adhesive enameled copper wire has its place in various industries. Its thin diameter enables flexible and easy installation even in tight spaces, ensuring efficient wire management and optimized performance.
One of the most notable advantages of this type of wire is its ability to self-adhesive. This adhesive layer not only ensures a strong adhesion to the surface, but also provides an extra layer of insulation.
This added layer of insulation protects against the effects of moisture, dust, and other environmental factors, thereby increasing the durability and reliability of the wire.
|
Name |
0.18mm 0.20mm Alcohol Self Adhesive Enameled Copper Winding Wire |
|
Key word |
0.18mm 0.20mm Alcohol Self Adhesive Enameled Copper Winding Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.18mm |
| Test Item | Unit | Standard Value | Reality Value | ||
| Min. | Ave. | Max. | |||
| Conductor dimensions | mm | 0.18±0.003 | 0.180 | 0.180 | 0.180 |
|
(Basecoat dimensions) Overall dimensions |
mm | Max.0.226 | 0.210 | 0.211 | 0.212 |
| Insulation Film Thickness | mm | Min. 0.008mm | 0.019 | 0.020 | 0.020 |
| Bonding Film Thickness | mm | Min.0.004 | 0.011 | 0.011 | 0.012 |
| Continuity of coverin(50V/30m) | Pcs | Max.60 | Max.0 | ||
| Flexibility | / | / | |||
| Adherence | no crack | Good | |||
| Breakdown Voltage | V | Min.2600 | Min.4469 | ||
|
Resistance to Softening(Cut Through) |
℃ | Continue 2 times pass | 300℃/Good | ||
|
(390℃±5℃)Solder test |
s | / | / | ||
| Bonding Strength | g | Min. 29.4 | 50 | ||
| Electrical Resistance(20℃) | Ω/m | Max.715.0 | 679 | 680 | 681 |
| Elongation | % | Min.15 | 29 | 30 | 30 |
| Breaking Load | N | Min | / | / | / |
| Surface appearance | Smooth | Good | |||
