| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.016mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW / 3 UEW 0.016mm Self-bonding Enameled Copper Wire For Mini Motors Insulated Solid | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.016mm |
| Conductor Material: | Copper | Key Word: | 2UEW / 3 UEW 0.016mm Self-bonding Enameled Copper Wire For Mini Motors Insulated Solid |
| Type: | 2UEW / 3 UEW 0.016mm Self-bonding Enameled Copper Wire For Mini Motors Insulated Solid | ||
| Highlight: | 2uew self bonding wire,0.016mm self bonding wire,2uew self bonding copper wire |
||

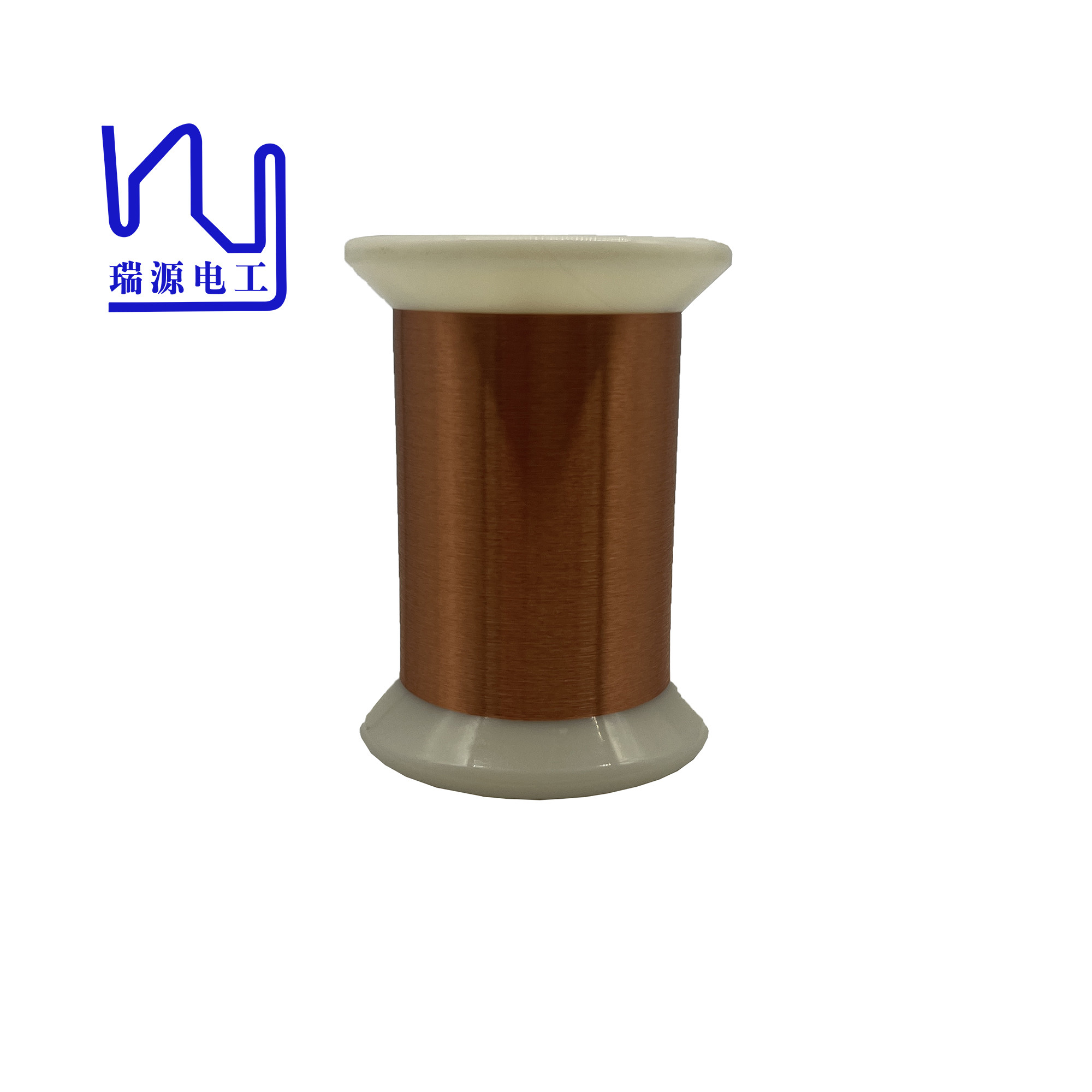

2UEW / 3 UEW 0.016mm Self-bonding Enameled Copper Wire for Mini Motors Insulated Solid
In the automotive industry, the characteristics of ultra-fine enamelled copper wire have also been widely used. It is used in automotive circuits including engine management systems, sensors, airbag systems, and more. Its small wire diameter and high conductivity ensure the stability and reliability of signal transmission, while also helping to save space and reduce vehicle weight.
| Name | 2UEW / 3 UEW 0.016mm Self-bonding Enameled Copper Wire for Mini Motors Insulated Solid | |||||
| Characteristics | Technical requests | Test Results | Conclusion | |||
| Sample 1 | Sample 2 | Sample 3 | ||||
| Surface | Good | OK | OK | OK | OK | |
| Bare Wire Diameter | 0.016± | 0.001 | 0.016 | 0.016 | 0.016 | OK |
| 0.001 | ||||||
| Overall diameter | ≤ 0.020mm | 0.015 | 0.0195 | 0.01958 | OK | |
| Insulation thickness | Min0.001 | 0.002 | 0.002 | 0.002 | OK | |
| Self-bonding layer thickness | Min0.001 | 0.0015 | 0.0015 | 0.0015 | OK | |
| Elongation | ≥ 6 % | 12 | 12 | 12 | OK | |
| Breakdown Voltage | ≥ 120V | 248 | 260 | 270 | OK | |
| Pinhole Test | ≤ 5 hole/5m | 0 | 0 | 0 | OK | |
| Enamel Continuity(50v/30m) | ≤ 60 hole/5m | 0 | 0 | 0 | OK | |
| Bonding Strength | ≥5 g | 10 | 10 | 9 | OK | |
| Electrical Resistance | 84.29-91.37Ω/m | 86.3 | 86.3 | 86.3 | OK | |
| key word | 2UEW / 3 UEW 0.016mm Self-bonding Enameled Copper Wire for Mini Motors Insulated Solid | |||||
