| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.016mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW-F 54 AWG Ultra-fine Self-adhesive Enameled Copper Winding Wire For Voice Coils | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.016mm |
| Conductor Material: | Copper | Key Word: | 2UEW-F 54 AWG Ultra-fine Self-adhesive Enameled Copper Winding Wire For Voice Coils |
| Type: | 2UEW-F 54 AWG Ultra-fine Self-adhesive Enameled Copper Winding Wire For Voice Coils | ||
| Highlight: | 54 awg enameled copper winding wire,self adhesive enameled copper winding wire,54 awg self bonding copper wire |
||

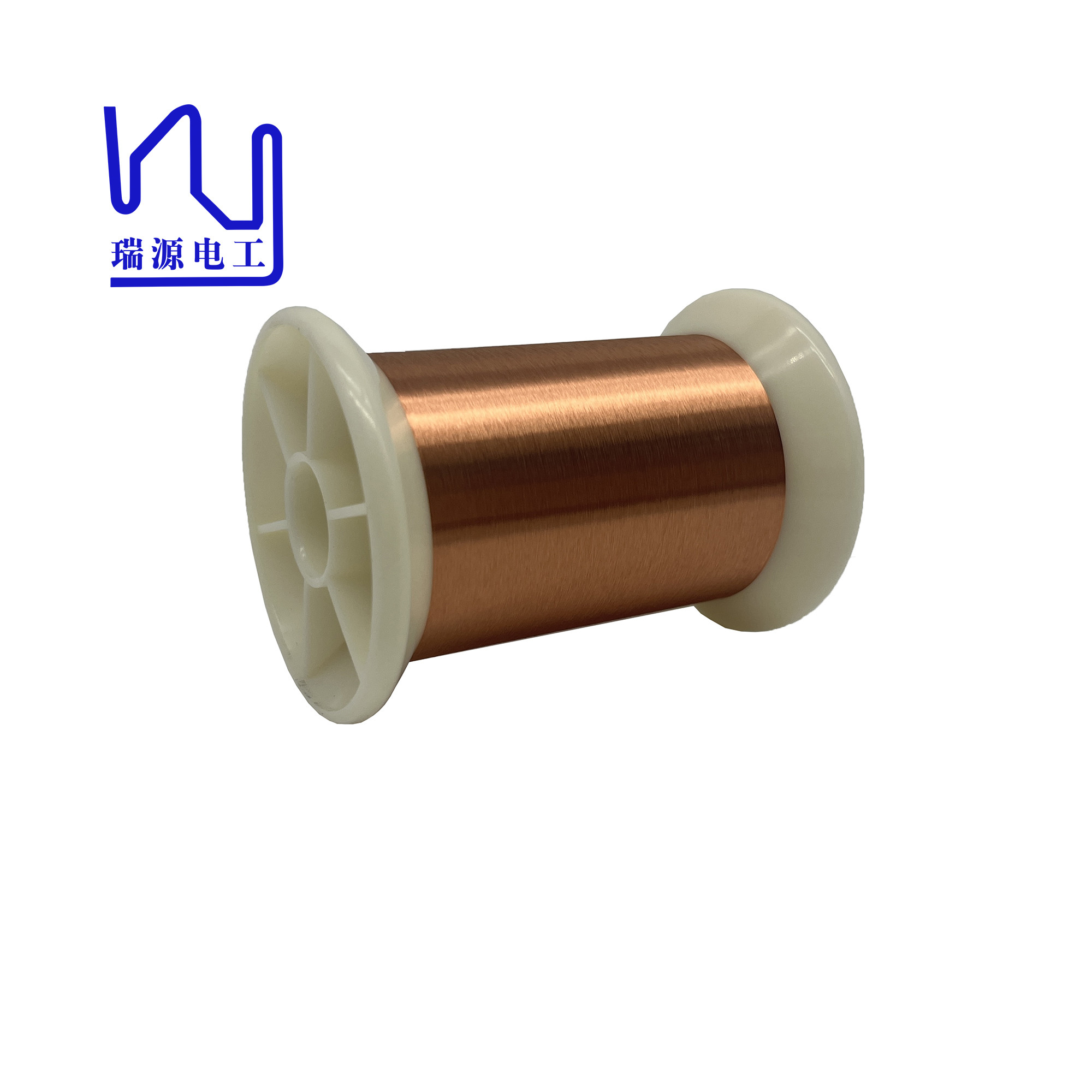

2UEW-F 54 AWG Ultra-fine Self-adhesive Enameled Copper Winding Wire For Voice Coils
Ultra-fine enameled copper wire is one of our superior products, and the wire diameter range covers enameled wire from 0.011mm to 0.08mm.
The super thin enameled copepr wire has a wide range of applications in various fields.
Ultra-fine enamelled copper wire plays an important role in the field of electronics. It is widely used in miniature electronic devices, mobile phones, computers and other tiny electronic products for conductive connection, signal transmission and circuit wiring.
|
Name |
2UEW-F 54 AWG Ultra-fine Self-adhesive Enameled Copper Winding Wire For Voice Coils |
|
Key word |
2UEW-F 54 AWG Ultra-fine Self-adhesive Enameled Copper Winding Wire For Voice Coils |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.016mm |
| Characteristics |
Technical requests |
Test Results | Conclusion |
|||
| Sample 1 | Sample 2 | Sample 3 | ||||
| Surface | Good | OK | OK | OK | OK | |
| Bare Wire Diameter |
0.016± |
0.001 | 0.016 |
0.016 |
0.016 |
OK |
| 0.001 | ||||||
| Overall diameter | ≤ 0.020mm | 0.015 | 0.0195 | 0.01958 | OK | |
| Insulation thickness | Min0.001 | 0.002 | 0.002 | 0.002 | OK | |
| Self-bonding layer thickness | Min0.001 | 0.0015 | 0.0015 | 0.0015 | OK | |
| Elongation | ≥ 6 % | 12 | 12 | 12 | OK | |
| Breakdown Voltage | ≥ 120V | 248 | 260 | 270 | OK | |
| Pinhole Test | ≤ 5 hole/5m | 0 | 0 | 0 | OK | |
| Enamel Continuity(50v/30m) | ≤ 60 hole/5m | 0 | 0 | 0 | OK | |
| Bonding Strength | ≥5 g | 10 | 10 | 9 | OK | |
| Electrical Resistance | 84.29-91.37Ω/m | 86.3 | 86.3 | 86.3 | OK | |
