| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW155/180 Hot Air Self Bonding Self-adhesive Enameled Copper Wire | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.05mm |
| Conductor Material: | Copper | Key Word: | 2UEW155/180 Hot Air Self Bonding Self-adhesive Enameled Copper Wire |
| Type: | 2UEW155/180 Hot Air Self Bonding Self-adhesive Enameled Copper Wire | ||
| Highlight: | 2uew155 enameled copper wire,self adhesive enameled copper wire,self bonding enamelled wire |
||

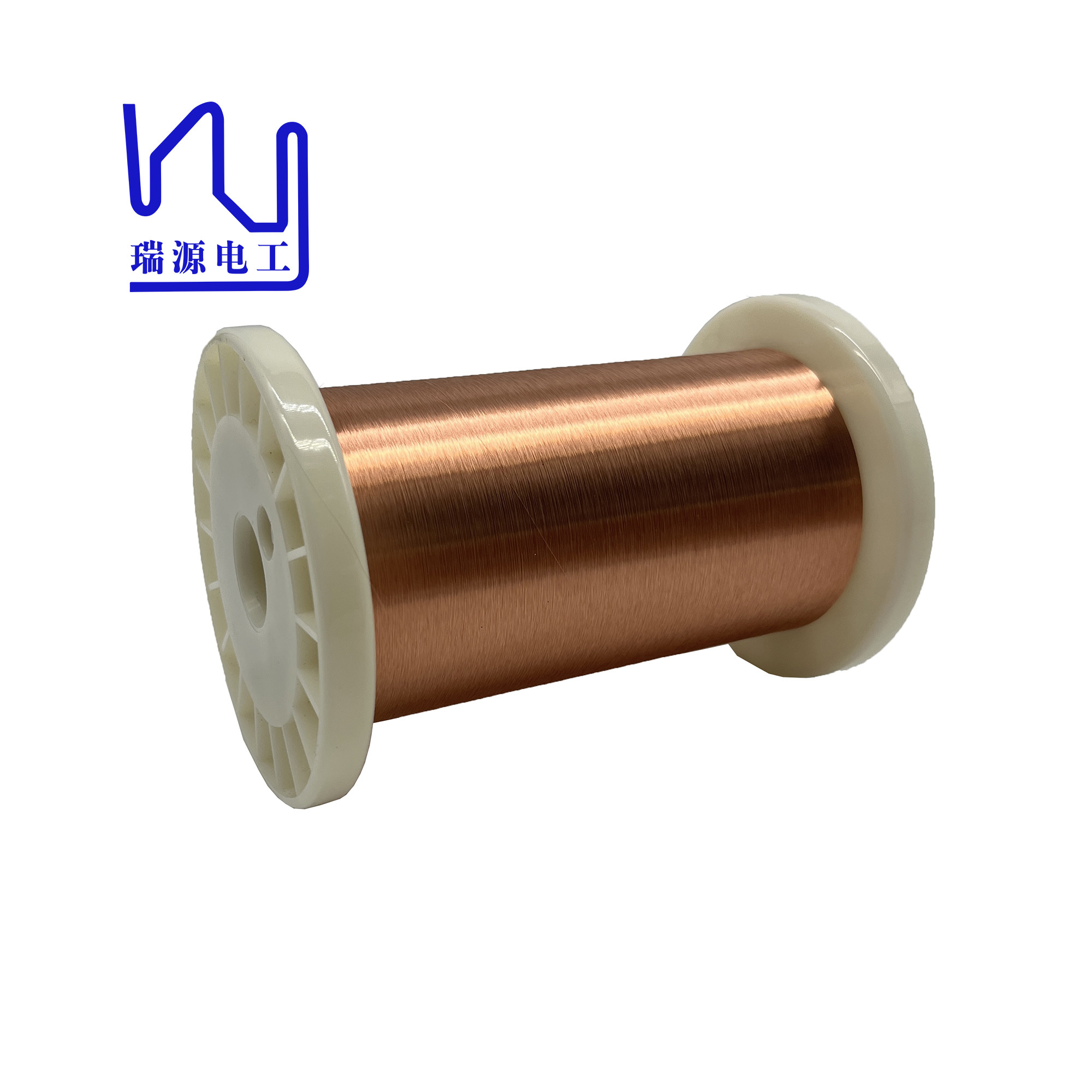

2UEW155/180 Hot Air Self bonding Self-adhesive enameled copper wire
When purchasing self-adhesive enameled copper wire, we will provide professional advice according to customer needs, and provide high-quality products and considerate services. We look forward to working with you to meet your wire product needs and provide the best solution for your project.
Key word | 2UEW155/180 Hot Air Self bonding Self-adhesive enameled copper wire | |||
Characteristics | Technical requests | Reality Value | ||
Min | Ave | Max | ||
Bare Wire Diameter(mm) | 0.050±0.002 | 0.050 | 0.050 | 0.050 |
(Basecoat dimension)Overall mimensions(mm) | Max. 0.061 | 0.0602 | 0.0603 | 0.0604 |
Insulation Film Thickness(mm) | Min 0.003 | 0.004 | 0.004 | 0.004 |
Bonding Film Thickness(mm) | Min 0.0015 | 0.002 | 0.002 | 0.002 |
Enamel Continuity(50v/30m) | Max.60 | 0 | ||
Breakdown Voltage(V) | Min.300 | 1201 | ||
Resistance to Solftening(Cut Through)℃ | Continue 2 times pass | 170℃/Good | ||
Solder test(375℃±5℃)s | Max.2 | Max.1.5 | ||
Bonding Strength(g) | Min.5 | 12 | ||
Electrical Resistance(20℃)Ω/m | 8.632-8.959 | 8.80 | 8.81 | 8.82 |
Elongation% | Min.16 | 20 | 21 | 22 |
