| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom 2UEW/3UEW 0.05mm Super Thin Self-adhesive Enameled Magnet Wire | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.05mm |
| Conductor Material: | Copper | Key Word: | Custom 2UEW/3UEW 0.05mm Super Thin Self-adhesive Enameled Magnet Wire |
| Type: | Custom 2UEW/3UEW 0.05mm Super Thin Self-adhesive Enameled Magnet Wire | ||
| Highlight: | self bonding enamel coated copper wire,3uew enameled magnet wire,self bonding enameled magnet wire |
||

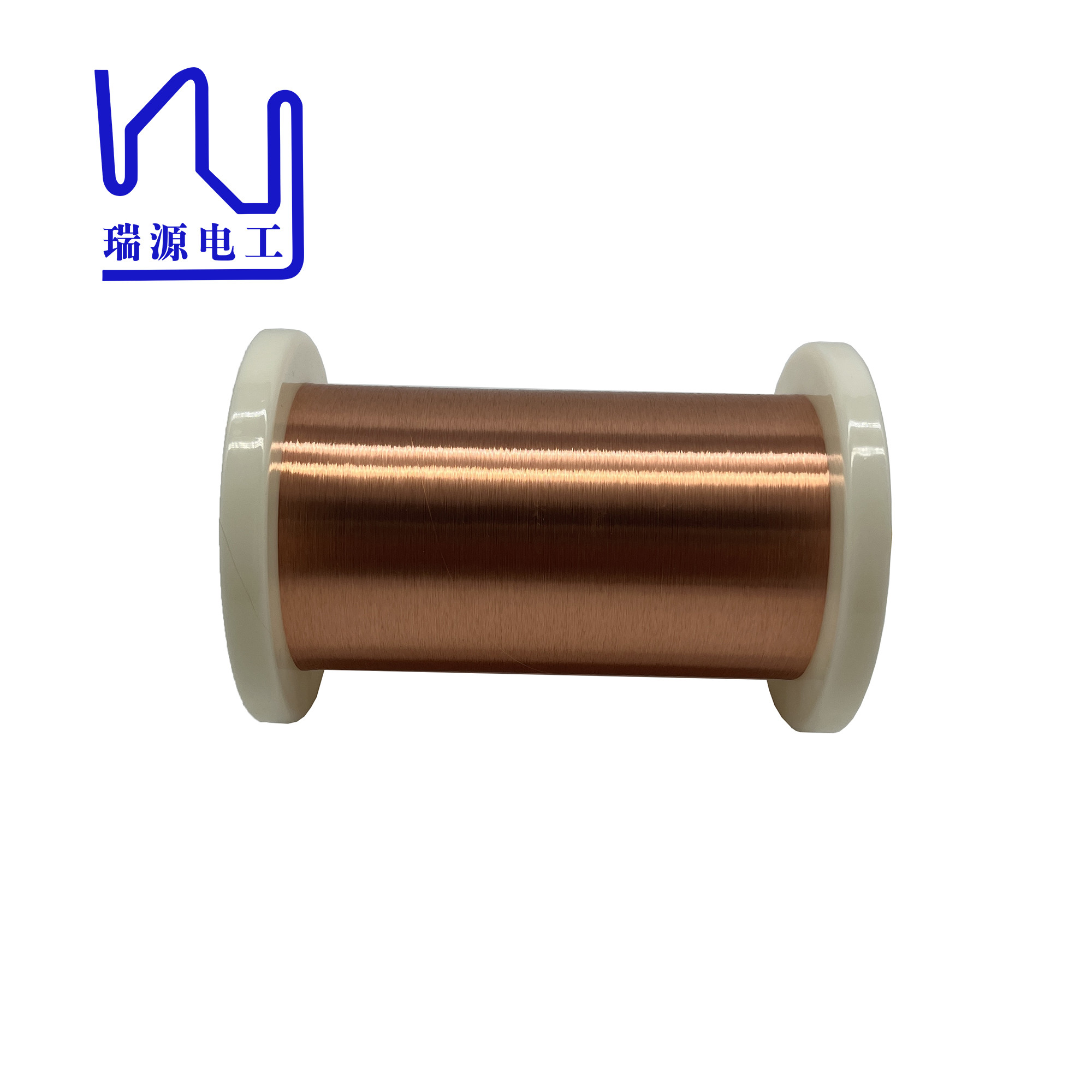

Custom 2UEW/3UEW 0.05mm Super Thin Self-adhesive Enameled Magnet Wire
Self-adhesive enameled copper wire is very convenient to use. The self-adhesive layer can be activated with a heat gun or heated in an oven to firmly bond the copper wire to other components.
Self-adhesive enamelled copper wire has a wide range of applications, especially playing an important role in the manufacture of audio equipment.
|
Key word |
Custom 2UEW/3UEW 0.05mm Super Thin Self-adhesive Enameled Magnet Wire |
|||
|
Characteristics |
Technical requests |
Reality Value |
||
|
Min |
Ave |
Max |
||
|
Bare Wire Diameter(mm) |
0.050±0.002 |
0.050 |
0.050 |
0.050 |
|
(Basecoat dimension)Overall mimensions(mm) |
Max. 0.061 |
0.0602 |
0.0603 |
0.0604 |
|
Insulation Film Thickness(mm) |
Min 0.003 |
0.004 |
0.004 |
0.004 |
|
Bonding Film Thickness(mm) |
Min 0.0015 |
0.002 |
0.002 |
0.002 |
|
Enamel Continuity(50v/30m) |
Max.60 |
0 |
||
|
Breakdown Voltage(V) |
Min.300 |
1201 |
||
|
Resistance to Solftening(Cut Through)℃ |
Continue 2 times pass |
170℃/Good |
||
|
Solder test(375℃±5℃)s |
Max.2 |
Max.1.5 |
||
|
Bonding Strength(g) |
Min.5 |
12 |
||
|
Electrical Resistance(20℃)Ω/m |
8.632-8.959 |
8.80 |
8.81 |
8.82 |
|
Elongation% |
Min.16 |
20 |
21 |
22 |
