| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.03mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Solderable Polyurethane 0.025mm 0.03mm Self Bonding Enameled Copper Wire | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.03mm |
| Conductor Material: | Copper | Key Word: | 3UEW 155 0.03mm Super Thin Hot Air Self-adhesive Enameled Copper Wire For Speaker Coils |
| Type: | Solderable Polyurethane 0.025mm 0.03mm Self Bonding Enameled Copper Wire | ||
| Highlight: | 0.025mm self bonding copper wire,0.03mm enamel coated magnet wire,self bonding enamel coated magnet wire |
||

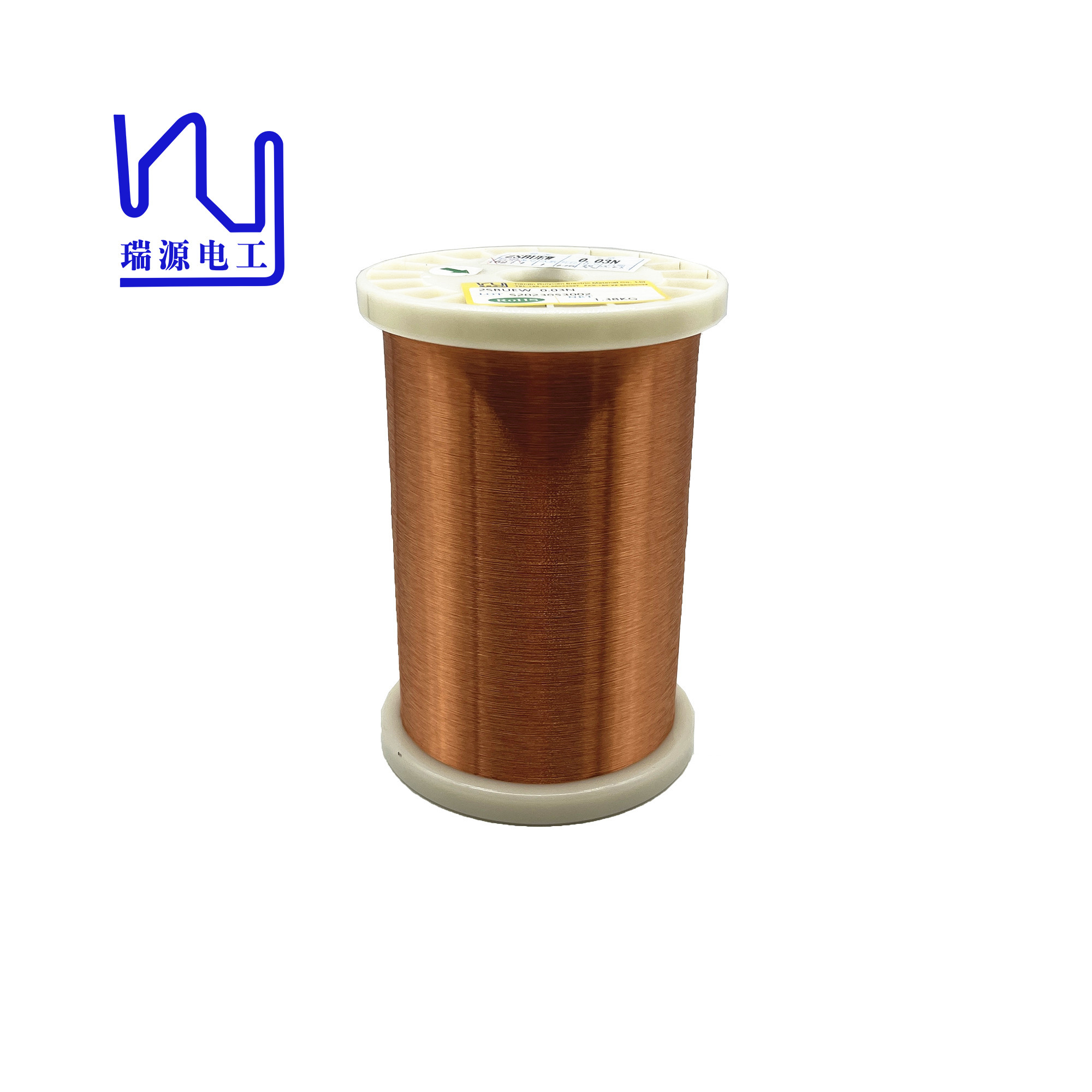

Solderable Polyurethane 0.025mm 0.03mm Self Bonding Enameled Copper Wire
At the same time, if you have special needs, we can also provide alcohol-type enameled wires to meet the needs of different markets. Whether you are an electrical engineer or an electronics manufacturer, we can provide you with the most suitable solution.
At the same time, if you have special needs, we can also provide alcohol-type enameled wires to meet the needs of different markets. Whether you are an electrical engineer or an electronics manufacturer, we can provide you with the most suitable solution.
|
Key word |
Solderable Polyurethane 0.025mm 0.03mm Self Bonding Enameled Copper Wire |
||||
|
Characteristics |
Technical requests |
Test Results |
|||
|
Sample 1 |
Sample 2 |
Sample 3 |
|||
|
Surface |
Good |
OK |
OK |
OK |
|
|
Bare Wire Diameter |
0.030mm± |
0.001 |
0.030mm |
0.030mm |
0.030mm |
|
Overall Diamter |
max.0.042mm |
0.0419mm |
0.0419mm |
0.0419mm |
|
|
Insulation Thickness |
min. 0.002mm |
0.003mm |
0.003mm |
0.003mm |
|
|
Bonding Film Thickness |
min. 0.002mm |
0.003mm |
0.003mm |
0.003mm |
|
|
Continuity of covering(12V/5m) |
max. 3 |
max. 0 |
max. 0 |
max. 0 |
|
|
Adherence |
No crack |
OK |
|||
|
Cut Through |
continue 3 times pass |
170℃/Good |
|||
|
Solder Test 375℃±5℃ |
max. 2s |
max. 1.5s |
|||
|
Bonding Strength |
min. 1.5g |
9 g |
|||
|
Conductor Resistance(20℃) |
≤ 23.98- 25.06Ω/m |
24.76Ω/m |
|||
|
Breakdown voltage |
≥ 375 V |
MIN. 1149V |
|||
|
Elongation |
min. 12% |
19% |
|||
