| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Multiple Color Selection ISO/UL Certificated Triple Insulated Magnet Wire | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.20mm |
| Conductor Material: | Copper | Key Word: | Custom Multiple Color Selection ISO/UL Certificated Triple Insulated Magnet Wire |
| Highlight: | uew triple insulated wire,gauge 22 triple insulated wire,22 gauge triple insulated magnet wire |
||

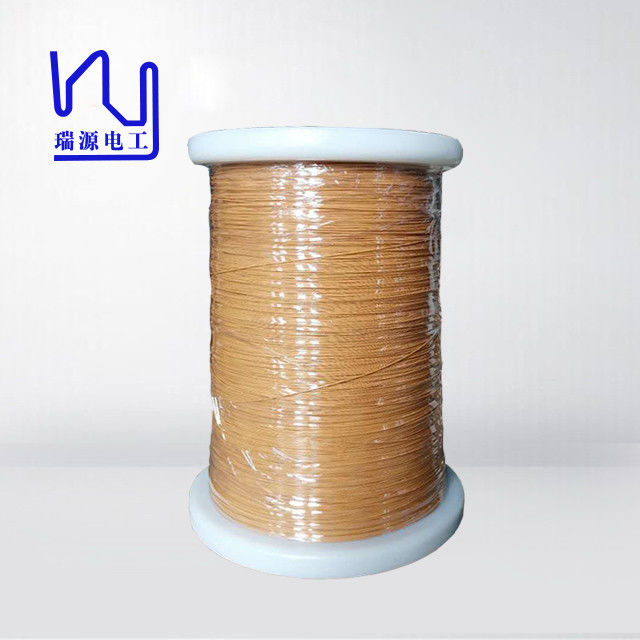

Custom Multiple Color Selection ISO/UL Certificated Triple Insulated Magnet Wire
Self bonding or adhesive triple insulated wire was designed for transformer tape replacement that save space of the transformer and reduce the costs
Here are the main features and benefits
Size range: 0.15-1.0mm
Operation voltage 1000Vms
Soldering temperature: 420-470 ℃
Breakdown voltage: Up to 15KV
Complies with UL-2353, VDE, IEC60950/61558 and CQC safety regulation
Conforms EU RoHS 2.0, HF and REACH environment requirement
| Description | Designation | Thermal Grade(℃) | Diameter(mm) | Breakdown Voltage(KV) |
| Triple Insulated Copper Wire | Class B/F/H | 130/155/180 | 0.13mm-1.0mm | ≧17 |
| Tinned | 130/155/180 | 0.13mm-1.0mm | ≧17 | |
| Self Bonding | 130/155/180 | 0.13mm-1.0mm | ≧15 | |
| seven strand litz wire | 130/155/180 | 0.10*7mm-0.37*7mm | ≧15 |
