| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.2mm |
| Minimum Order Quantity: | 3000 meter |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.3mm 0.4mm Enameled Copper Wire Class B TIW | Thermal Rating: | 130 |
|---|---|---|---|
| Insulation Material: | UEW | Diameter: | 0.20mm |
| Conductor Material: | Copper | Key Word: | 0.3mm 0.4mm Enameled Copper Wire Class B TIW |
| Highlight: | enameled copper wire,enameled copper wire 0.3mm,tiw insulated copper magnet wire |
||

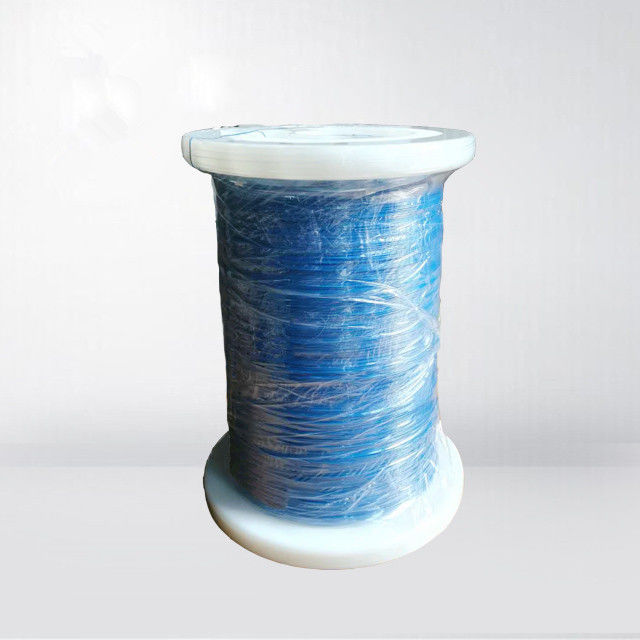

0.2mm 0.3mm 0.4mm Class B Triple Insulated Wire
1.High breakdown voltage. Up to 17KV
2.UL system certificated. Unlike UL certificate, UL system certificate is much more strict, that needs 5000 continuous hours test, if the wire failed below 5000hours, the experiment need to start again. Very a few manufacture can pass such strict test.
3.Very competitive price with top quality. We can compare quality with any other brand.
4.Conforms EU RoHS 2.0, HF AND REACH environment requirements
5.Complies with UL-2353, VDE IEC60950/61558 and CQC safety requirements
6.Stock for all sizes are available.
| Model |
Traditional Transformer (No Use Triple insulated wire) |
Smaller transformer (use TIW) |
|
| Output voltage | 20W | 20W | |
| Volume | cm³ | 36 | 16 |
| % | 100 | 53 | |
| Weight | g | 70 | 45 |
| % | 100 | 64 | |
