Product Name: | 2UEW 0.06mm 0.08mm Alcohol Self Adhesive Enameled Copper Winding Wire | Insulation: | UEW |
---|---|---|---|
Size: | 0.05mm | Application: | Motor/Transformer |
Key Word: | 2UEW 0.06mm 0.08mm Alcohol Self Adhesive Enameled Copper Winding Wire | Thermal Rating: | 155 |
Highlight: | 0.06mm self bonding wire,2uew self bonding wire,self bonding enameled copper winding wire |

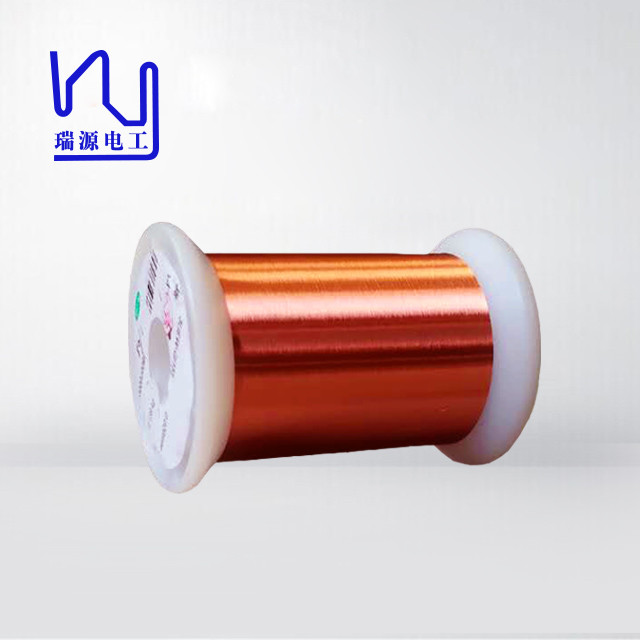

2UEW 0.06mm 0.08mm Alcohol self adhesive enameled copper winding wire
All bondcoats can be heat bonded, either by oven-heating or by directing hot air on to the wire during winding. In either case, the principle is to heat the winding slightly above the bondcoat’s reflow temperature and then cool it below its rated bond strength temperature. Oven bonding is accomplished by heating the coil for a period of time sufficient to obtain uniform heating throughout the winding, followed by a cooling cycle. Heating time is generally 10 to 30 minutes, depending on the size of the winding. Disadvantages of oven bonding are the longer bonding time as well as the potential need for many winding fixtures. Hot air bonding, though done typically at slower winding speed, has the advantage of the elimination of a secondary bonding operation. This method is cost effective and usually associated with low temperature bondcoats and wire sizes smaller than 34 gauge.
Product | 2UEW 0.06mm 0.08mm Alcohol self adhesive enameled copper winding wire |
Conductor diameter | 0.011mm-0.08mm |
Key word | 2UEW 0.06mm 0.08mm Alcohol self adhesive enameled copper winding wire |
Coating | UEW |
