Name: 0.4mm Transformer Using Tiw-B Triple Insulated Wire , Copper Winding Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.4mm
Price: Negotiable USD
Availability: InStock

0.4mm Transformer Using Tiw-B Triple Insulated Wire , Copper Winding Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.4mm

Minimum Order Quantity:	3000 meter
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Transformer Using TIW-B Triple Insulated Copper Winding Wire	Thermal Rating:	130
Insulation Material:	UEW	Diameter:	0.40mm
Conductor Material:	Copper	Key Word:	Transformer Using TIW-B Triple Insulated Copper Winding Wire
Highlight:	transformer triple insulated wire , 0.4mm triple insulated wire , triple insulated copper winding wire

Product Description

Transformer Using TIW-B Triple Insulated Copper Winding Wire

Triple Insulated wire or TIW is wildely used in transformer, our quanlity is similar with Furukawa, even is better at CLASS F. Self solderable makes soldering process much easier. UL system certificated give you perfect quality.

Features and Benefits:

1. Greatly reduce the size and weight of transformers.
2. Greatly improve the efficiency of transformer by reducing the distance between coil.
3. Allow to wind directly on the top of enameled wires. Eliminate the interleaved insulation tapes, barriers and insulating sleeves.
4. Shock resistance, Corrosion Resistant
5. Excellent durability, Durable Resistant
6. Superior strength, Reliability
7. Rust resistant, Affordability
8. Low maintenance

Description	Designation	Thermal Grade(℃)	Diameter (mm)	Breakdown Voltage(KV)	Solderability (Y/N)
Triple Insulated Copper Wire	Class B/F/H	130/155/180	0.13mm-1.0mm	≧17	Y
	Tinned	130/155/180	0.13mm-1.0mm	≧17	Y
	Self Bonding	130/155/180	0.13mm-1.0mm	≧15	Y
	seven strand litz wire	130/155/180	0.107mm- 0.377mm	≧15	Y

Product Name		Transformer Using TIW-B Triple Insulated Copper Winding Wire
Size		0.4mm
Insulation		Polyurethane
Thermal Rating		Class 130
Sample		Avaible on your requests.

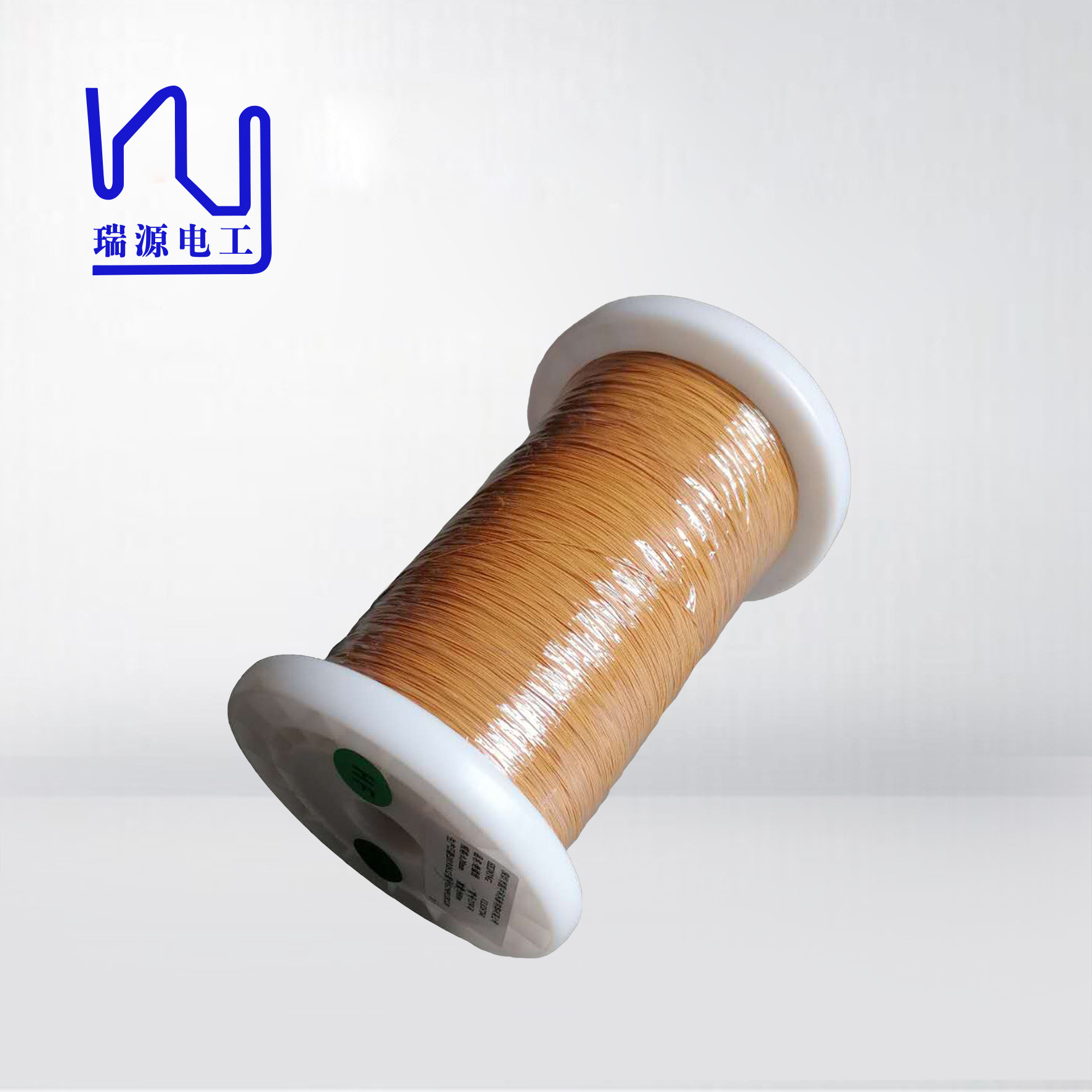

0.4mm Transformer Using Tiw-B Triple Insulated Wire , Copper Winding Wire 0

0.4mm Transformer Using Tiw-B Triple Insulated Wire , Copper Winding Wire 1

0.4mm Transformer Using Tiw-B Triple Insulated Wire , Copper Winding Wire 2

0.4mm Transformer Using Tiw-B Triple Insulated Wire , Copper Winding Wire 3

0.4mm Transformer Using Tiw-B Triple Insulated Wire , Copper Winding Wire 4
