| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.025mm Solvent Alcohol Self Adhesive Enameled Copper Wire | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.025mm |
| Conductor Material: | Copper | Key Word: | 0.025mm Solvent Alcohol Self Adhesive Enameled Copper Wire |
| Highlight: | 0.025mm bondable magnet wire,self adhesive bondable magnet wire,0.025 mm enamelled copper wire |
||

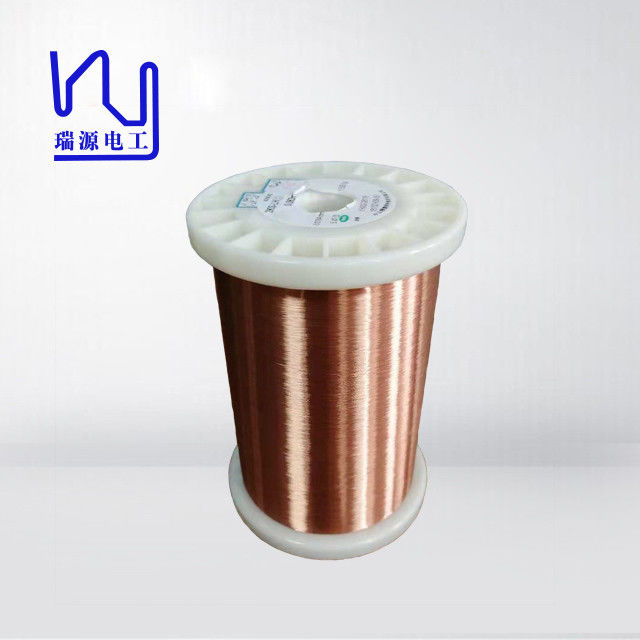

0.025mm Solvent alcohol self adhesive enameled copper wire
A small but growing segment of the wire enamel market are self-bonding coatings. Always used as a top layer, these materials allow manufacturers to wind the electrical component without undergoing an impregnation step.The advantages to this type of process include reduced cycle times, less handling, and virtually no environmental impact.
|
Name |
0.025mm Solvent alcohol self adhesive enameled copper wire |
|
Key word |
Enameled copper wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155/180 |
|
Diameter of the enameled copper wire |
0.025mm |
|
Type |
0.025mm Solvent alcohol self adhesive enameled copper wire |
| Characteristics | Technical requests | Test Results | Conclusion | |||||||||
| Sample 1 | Sample 2 | Sample 3 | ||||||||||
| 1 | Surface | Good | OK | OK | OK | OK | ||||||
| 2 | Bare Wire Diameter | 0.025± | 0.001 | 0.025 | 0.025 | 0.025 | OK | |||||
| 0.001 | ||||||||||||
| 3 | Overall diameter | ≤ 0.034 mm | 0.0339 | 0.0339 | 0.0339 | OK | ||||||
| 4 | Insulation thickness | Min0.002 | 0.003 | 0.003 | 0.003 | OK | ||||||
| 5 | Self-bonding layer thickness | Min0.002 | 0.003 | 0.003 | 0.003 | OK | ||||||
| 6 | Elongation | ≥ 14 % | 18 | 18 | 18 | OK | ||||||
| 7 | Breakdown Voltage | ≥ 300 V | 769 | 900 | 855 | OK | ||||||
| 8 | Pinhole Test | ≤ 3 hole/5m | 0 | 0 | 0 | OK | ||||||
| 9 | Bonding Strength | ≥10 g | 12 | 11 | 12 | OK | ||||||
| 10 | Electrical Resistance | 34-36Ω/m | 34.99 | 34.99 | 34.99 | OK | ||||||
| Remark: | ||||||||||||
| Test Items | Technical Requests | Results | Conclusion: | |||||||||
| 1 | Adhesive | No crack | OK | Approved | ||||||||
| 2 | Heat Shock | 175℃/1h no crack | OK | Audit by | Tested by | |||||||
| 3 | Solder Ability | 390℃±5C/2S Smooth | OK |
|||||||||
