| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 20 - 56 AWG |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| AWG: | 20-56 | Temperature: | 130/155/180 |
|---|---|---|---|
| Standard: | IEC/NEMA/JIC | Brand: | Rvyuan |
| Size Range: | 0.012-0.8mm | ||
| Highlight: | covered copper wire,flat copper wire |
||

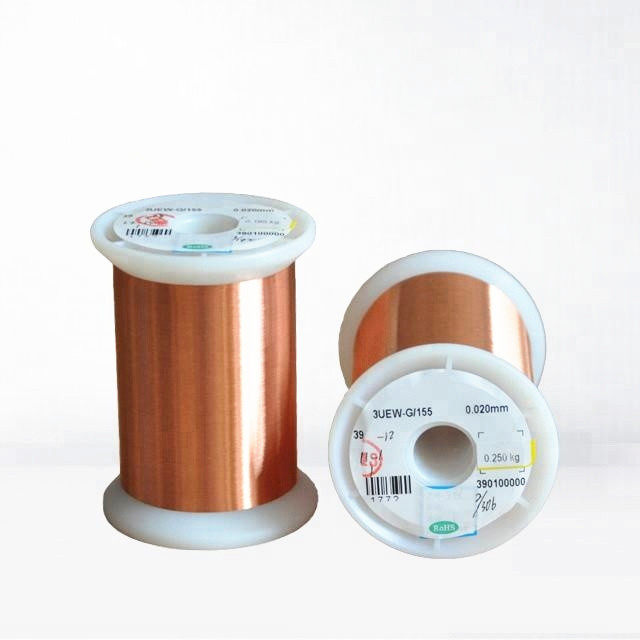

MULTIPLE SIZE ULTRA THIN ENAMELED COPPER WIRE 20-56 AWG WINDING WIRE FOR TRANSFORMER
A special type of enamelled wire is self bonding wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.
FEATURES AND BENEFITS
Suitable for use in electromagnet windings and transformer coils
Greater than 99 percent pure copper
Uninsulated single-strand wire with two red color protective coatings
Maximum operating temperature of 155 degrees C
Meets NEMA MW 80 standards forc copper magnet wire and complies with RoHS regulation
Applications of enamelled copper wire for Computer/Phones
Daptors
Chargers
Mainboard
Screen
Battery
SPECIFICATION
|
Product Name |
Thermal class |
Performance feature |
Main application |
|
1.Polyurethane enameled copper round wire |
130/155/180 centigrade |
1.Good direct soldering. 2.Resistance to high frequency. 3.Can be painted different colors. 4.Good humidity-resistance.
|
1.Household appliance. 2.Electronic instrument. 3.Telecommunication meter. 4.Connecting line of electronic equipment. |
|
2.Polyurethane nylon enameled copper round wire |
130/155/180 centigrade |
1.Good winding performance. 2.Good pinhole performance. 3.Good direct soldering. 4.Resistance to high frequency. 5.Good solvent-resistance. |
1.Household appliance. 2.Electronic instrument. 3.Telecommunication meter. 4.Connecting line of electronic equipment. |
|
3.Polyester copper enameled round wire |
130 centigrade |
1.High mechanical strength. 2.Soft-resistance and high temperature for breakdown. 3.High performance for shaving-resistance and solvent-resistance |
1.Electric motors. 2.Electric appliances. 3.Meter and telecommunication apparatus. |
|
4.Modified polyester copper enameled round wire |
155 centigrade |
1.Good heat shock-resistance. 2.High mechanical strength. 3.Resistance to softening and breakdown. 4.Good electric solvent performance |
1.Electric motor. 2.Miniature motor. 3.Some highly-demanded transformer. |
|
5.Polyester imine enameled copper round wire |
180 centigrade |
1.Good heat shock-resistance and soft-resistance. 2.High mechanical strength. 3.Good performance of involution-resistance and chemical resistance. |
1.Eclectic motor which work in high temperature environment. 2.Electric appliance 3.Meter 4.Transformer |
|
6.Polyamide-imide compound enameled copper round wire |
200 centigrade |
1.High temperature-resistance 2.Cold-resistance. 3.Radiation-resistance 4.Softening-resistance 5.Freezing-resistance |
1.Electric machine or electrical appliance working under high temperature, severe cold, radiated, over-loaded environment |
|
7.Polyimide enameled copperround wire |
220 centigrade |
1.High temperature-resistance 2.Cold-resistance. 3.Radiation-resistance 4.Softening-resistance 5.Freezing-resistance |
1.Used as the winding wire of large and medium size electric machine or electrical appliance working under high temperature, severe cold, radiated, over-loaded environment. |
