| Certification: | ISO9001/ISO14001/UL/SGS | Standard: | IEC,NEMA,JIS |
|---|---|---|---|
| Insulation: | Polyester | Material: | Copper |
| Thermal Class: | 155/180 | Diameter: | 0.012-1.00MM |
| Conductor Type: | Solid | ||
| Highlight: | covered copper wire,flat copper wire |
||

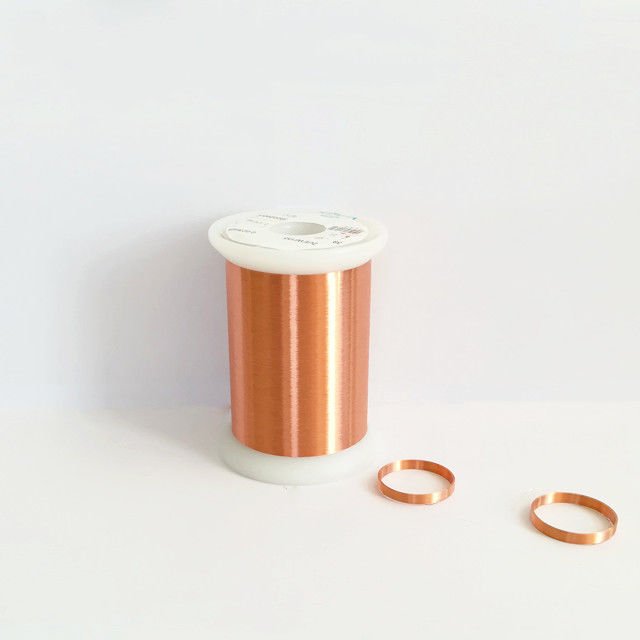

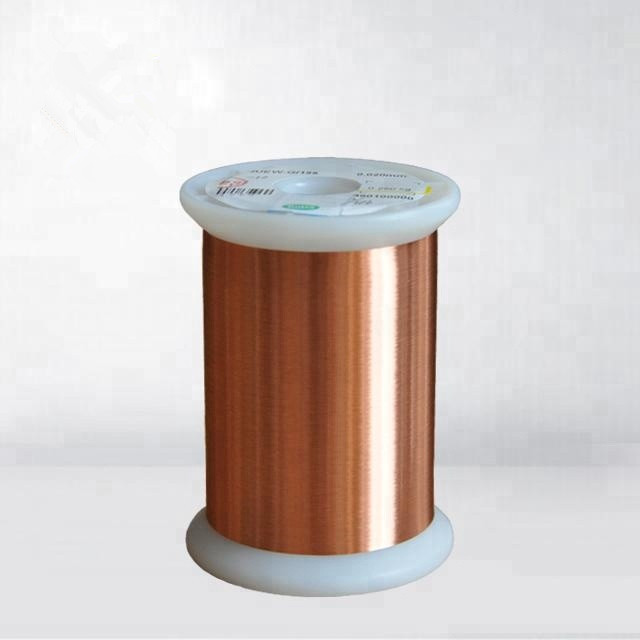

SUPER FINE SELF BONDING WIRE MAGNET WIRE SOLID CONDUCTOR 0.012-1.00 MM DIAMETER
A special type of enamelled wire is self bonding wire. Self bonding wire is an enamelled wire with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of self bonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.Self bonding wire can be supplied with different conductor materials such as self bonding copper clad aluminum wire, self bonding aluminum wire etc.
FEATURES
Excellent crazing,abrasion,chemical resistance and provides good thermal stability.
PEW has excellent physical properties for example, fexibility abrasion resistance adhesion...,better than PVF.
SPECIFICATION
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
|
Elongation |
Pin Hole |
Electrical Resistance |
|
|
|
mm |
|
|
≥ V |
|
≥% |
≤Default/5m |
Ω/km (20℃) |
|
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50.000 |
---- |
5.00 |
10.00 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70.000 |
---- |
5.00 |
10.00 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70.000 |
---- |
5.00 |
10.00 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.020 |
80.000 |
---- |
5.00 |
10.00 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90.000 |
---- |
5.00 |
8.00 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90.000 |
---- |
5.00 |
8.00 |
66.60 |
85.75 |
|
0.018 |
---- |
0.020 |
0.023 |
100.000 |
---- |
5.00 |
8.00 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100.000 |
---- |
5.00 |
8.00 |
53.95 |
67.75 |
|
0.020 |
0.001 |
0.022 |
0.024 |
100.000 |
---- |
8.00 |
8.00 |
51.83 |
60.81 |
|
0.050 |
±0.002 |
0.007 |
0.062 |
400.000 |
1200.00 |
12.00 |
5.00 |
7981.00 |
9528.00 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400.000 |
1200.00 |
12.00 |
5.00 |
6642.00 |
7815.00 |
|
0.060 |
±0.002 |
0.007 |
0.073 |
500.000 |
1200.00 |
14.00 |
5.00 |
5614.00 |
6526.00 |
|
0.065 |
±0.002 |
0.007 |
0.078 |
500.000 |
1200.00 |
14.00 |
5.00 |
4807.00 |
5531.00 |
|
0.070 |
±0.002 |
0.007 |
0.083 |
500.000 |
1200.00 |
15.00 |
5.00 |
4163.00 |
4747.00 |
|
0.075 |
±0.002 |
0.007 |
0.088 |
550.000 |
1200.00 |
15.00 |
5.00 |
3640.00 |
4119.00 |
|
0.080 |
±0.002 |
0.008 |
0.094 |
550.000 |
1200.00 |
16.00 |
5.00 |
3209.00 |
3608.00 |
|
0.085 |
±0.002 |
0.008 |
0.099 |
550.000 |
1200.00 |
16.00 |
5.00 |
2851.00 |
3187.00 |
|
0.090 |
±0.002 |
0.010 |
0.106 |
650.000 |
1200.00 |
16.00 |
5.00 |
2550.00 |
2835.00 |
|
0.095 |
±0.002 |
0.010 |
0.111 |
650.000 |
1200.00 |
17.00 |
5.00 |
2294.00 |
2538.00 |
|
0.100 |
±0.002 |
0.011 |
0.118 |
650.000 |
1200.00 |
17.00 |
5.00 |
2074.00 |
2286.00 |
|
0.110 |
±0.002 |
0.011 |
0.129 |
---- |
1300.00 |
17.00 |
5.00 |
1720.00 |
1882.00 |
|
0.120 |
±0.002 |
0.011 |
0.139 |
---- |
1500.00 |
17.00 |
5.00 |
1450.00 |
1577.00 |
|
0.130 |
±0.002 |
0.011 |
0.149 |
---- |
1500.00 |
18.00 |
5.00 |
1239.00 |
1340.00 |
|
0.140 |
±0.002 |
0.011 |
0.159 |
---- |
1600.00 |
19.00 |
5.00 |
1070.00 |
1153.00 |
|
0.150 |
±0.002 |
0.011 |
0.169 |
---- |
1700.00 |
20.00 |
5.00 |
934.10 |
1002.00 |
|
0.160 |
±0.002 |
0.012 |
0.180 |
---- |
1700.00 |
21.00 |
5.00 |
822.30 |
879.40 |
|
0.170 |
±0.003 |
0.013 |
0.192 |
---- |
2000.00 |
22.00 |
5.00 |
721.10 |
787.10 |
|
0.180 |
±0.003 |
0.014 |
0.204 |
---- |
2000.00 |
22.00 |
5.00 |
644.40 |
700.70 |
|
0.190 |
±0.003 |
0.014 |
0.214 |
---- |
2000.00 |
23.00 |
5.00 |
579.40 |
627.80 |
|
0.200 |
±0.003 |
0.014 |
0.224 |
---- |
2000.00 |
23.00 |
5.00 |
523.70 |
565.70 |
|
0.210 |
±0.003 |
0.014 |
0.234 |
---- |
2000.00 |
23.00 |
5.00 |
475.70 |
512.30 |
|
0.220 |
±0.003 |
0.014 |
0.245 |
---- |
2200.00 |
23.00 |
5.00 |
434.00 |
466.20 |
|
0.230 |
±0.003 |
0.016 |
0.257 |
---- |
2200.00 |
24.00 |
5.00 |
397.50 |
426.00 |
|
0.240 |
±0.003 |
0.016 |
0.267 |
---- |
2200.00 |
24.00 |
5.00 |
365.50 |
390.80 |
|
0.250 |
±0.003 |
0.016 |
0.277 |
---- |
2300.00 |
24.00 |
5.00 |
337.10 |
359.80 |
|
0.260 |
±0.004 |
0.018 |
0.287 |
---- |
2300.00 |
25.00 |
5.00 |
309.60 |
335.00 |
|
0.270 |
±0.004 |
0.018 |
0.297 |
---- |
2300.00 |
25.00 |
5.00 |
287.40 |
310.30 |
|
0.280 |
±0.004 |
0.022 |
0.313 |
---- |
2300.00 |
25.00 |
5.00 |
267.60 |
288.20 |
|
0.290 |
±0.004 |
0.022 |
0.323 |
---- |
2500.00 |
25.00 |
5.00 |
249.70 |
268.40 |
|
0.300 |
±0.004 |
0.022 |
0.334 |
---- |
2500.00 |
25.00 |
5.00 |
233.50 |
250.60 |
|
0.310 |
±0.004 |
0.022 |
0.344 |
---- |
2500.00 |
25.00 |
5.00 |
218.90 |
234.40 |
|
0.315 |
±0.004 |
0.022 |
0.349 |
---- |
2500.00 |
25.00 |
5.00 |
212.10 |
227.00 |
|
0.320 |
±0.004 |
0.023 |
0.355 |
---- |
2700.00 |
25.00 |
5.00 |
205.60 |
219.80 |
|
0.330 |
±0.004 |
0.023 |
0.365 |
---- |
2700.00 |
25.00 |
5.00 |
193.50 |
206.60 |
|
0.350 |
±0.004 |
0.023 |
0.385 |
---- |
2700.00 |
26.00 |
5.00 |
172.20 |
183.40 |
|
0.355 |
±0.004 |
0.023 |
0.390 |
---- |
2700.00 |
26.00 |
5.00 |
167.40 |
178.20 |
|
0.370 |
±0.004 |
0.024 |
0.406 |
---- |
2900.00 |
26.00 |
5.00 |
154.30 |
163.90 |
|
0.380 |
±0.004 |
0.024 |
0.416 |
---- |
2900.00 |
26.00 |
5.00 |
146.40 |
155.30 |
|
0.400 |
±0.004 |
0.025 |
0.437 |
---- |
2900.00 |
27.00 |
5.00 |
132.20 |
140.00 |
|
0.410 |
±0.004 |
0.025 |
0.447 |
---- |
2900.00 |
27.00 |
5.00 |
125.90 |
133.20 |
|
0.440 |
±0.004 |
0.025 |
0.477 |
---- |
2900.00 |
27.00 |
5.00 |
109.50 |
115.50 |
|
0.450 |
±0.004 |
0.025 |
0.487 |
---- |
2900.00 |
27.00 |
5.00 |
104.70 |
110.40 |
|
0.470 |
±0.004 |
0.026 |
0.508 |
---- |
3100.00 |
27.00 |
5.00 |
96.05 |
101.10 |
|
0.500 |
±0.004 |
0.026 |
0.539 |
---- |
3100.00 |
27.00 |
5.00 |
84.96 |
89.23 |
|
0.550 |
±0.004 |
0.027 |
0.590 |
---- |
3300.00 |
28.00 |
5.00 |
70.31 |
73.64 |
|
0.600 |
±0.005 |
0.027 |
0.640 |
---- |
3500.00 |
28.00 |
5.00 |
58.96 |
62.01 |
|
0.650 |
±0.005 |
0.027 |
0.690 |
---- |
3500.00 |
28.00 |
5.00 |
50.30 |
52.77 |
|
0.700 |
±0.005 |
0.029 |
0.742 |
---- |
3500.00 |
28.00 |
5.00 |
43.42 |
45.45 |
|
0.750 |
±0.005 |
0.030 |
0.794 |
---- |
3800.00 |
28.00 |
5.00 |
37.86 |
39.55 |
|
0.800 |
±0.005 |
0.032 |
0.846 |
---- |
3800.00 |
28.00 |
5.00 |
33.30 |
34.73 |
