Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	0.75mm

Minimum Order Quantity:	30000 meters
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Color:	Yellow	Certification:	UL/VDE/RoHS
Size:	0.75mm	Packing:	Plastic Roll Then In Carton
Rated Temperature:	130	Solderability:	Directly
Conductor:	Copper	Solder Temperature:	420-470
Highlight:	insulated copper wire , tiw wire

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance

	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50	----	5	10	142.64	157.65
0.013	----	0.015	0.017	70	----	5	10	118.41	133.98
0.014	----	0.016	0.018	70	----	5	10	102.64	120.45
0.015	----	0.017	0.02	80	----	5	10	89.83	104.41
0.016	----	0.018	0.021	90	----	5	8	74.67	97.56
0.017	----	0.019	0.022	90	----	5	8	66.6	85.75
0.018	----	0.02	0.023	100	----	5	8	59.77	75.95
0.019	----	0.021	0.024	100	----	5	8	53.95	67.75
0.05	±0.002	0.007	0.062	400	1200	12	5	7981	9528
0.055	±0.002	0.007	0.068	400	1200	12	5	6642	7815
0.06	±0.002	0.007	0.073	500	1200	14	5	5614	6526
0.065	±0.002	0.007	0.078	500	1200	14	5	4807	5531
0.07	±0.002	0.007	0.083	500	1200	15	5	4163	4747
0.075	±0.002	0.007	0.088	550	1200	15	5	3640	4119
0.08	±0.002	0.008	0.094	550	1200	16	5	3209	3608
0.085	±0.002	0.008	0.099	550	1200	16	5	2851	3187
0.09	±0.002	0.01	0.106	650	1200	16	5	2550	2835
0.095	±0.002	0.01	0.111	650	1200	17	5	2294	2538
0.1	±0.002	0.011	0.118	650	1200	17	5	2074	2286
0.11	±0.002	0.011	0.129	----	1300	17	5	1720	1882
0.12	±0.002	0.011	0.139	----	1500	17	5	1450	1577
0.13	±0.002	0.011	0.149	----	1500	18	5	1239	1340
0.14	±0.002	0.011	0.159	----	1600	19	5	1070	1153
0.15	±0.002	0.011	0.169	----	1700	20	5	934.1	1002
0.16	±0.002	0.012	0.18	----	1700	21	5	822.3	879.4
0.17	±0.003	0.013	0.192	----	2000	22	5	721.1	787.1
0.18	±0.003	0.014	0.204	----	2000	22	5	644.4	700.7
0.19	±0.003	0.014	0.214	----	2000	23	5	579.4	627.8
0.2	±0.003	0.014	0.224	----	2000	23	5	523.7	565.7
0.21	±0.003	0.014	0.234	----	2000	23	5	475.7	512.3
0.22	±0.003	0.014	0.245	----	2200	23	5	434	466.2
0.23	±0.003	0.016	0.257	----	2200	24	5	397.5	426
0.24	±0.003	0.016	0.267	----	2200	24	5	365.5	390.8
0.25	±0.003	0.016	0.277	----	2300	24	5	337.1	359.8
0.26	±0.004	0.018	0.287	----	2300	25	5	309.6	335
0.27	±0.004	0.018	0.297	----	2300	25	5	287.4	310.3
0.28	±0.004	0.022	0.313	----	2300	25	5	267.6	288.2
0.29	±0.004	0.022	0.323	----	2500	25	5	249.7	268.4
0.3	±0.004	0.022	0.334	----	2500	25	5	233.5	250.6
0.31	±0.004	0.022	0.344	----	2500	25	5	218.9	234.4
0.315	±0.004	0.022	0.349	----	2500	25	5	212.1	227
0.32	±0.004	0.023	0.355	----	2700	25	5	205.6	219.8
0.33	±0.004	0.023	0.365	----	2700	25	5	193.5	206.6
0.35	±0.004	0.023	0.385	----	2700	26	5	172.2	183.4
0.355	±0.004	0.023	0.39	----	2700	26	5	167.4	178.2
0.37	±0.004	0.024	0.406	----	2900	26	5	154.3	163.9
0.38	±0.004	0.024	0.416	----	2900	26	5	146.4	155.3
0.4	±0.004	0.025	0.437	----	2900	27	5	132.2	140

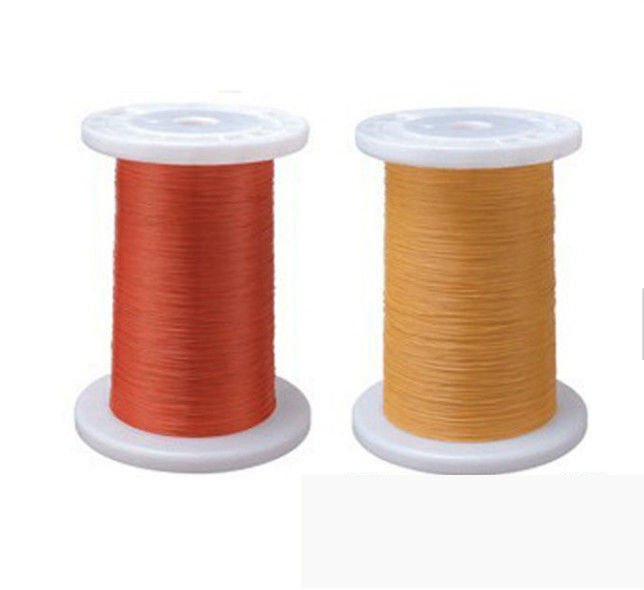

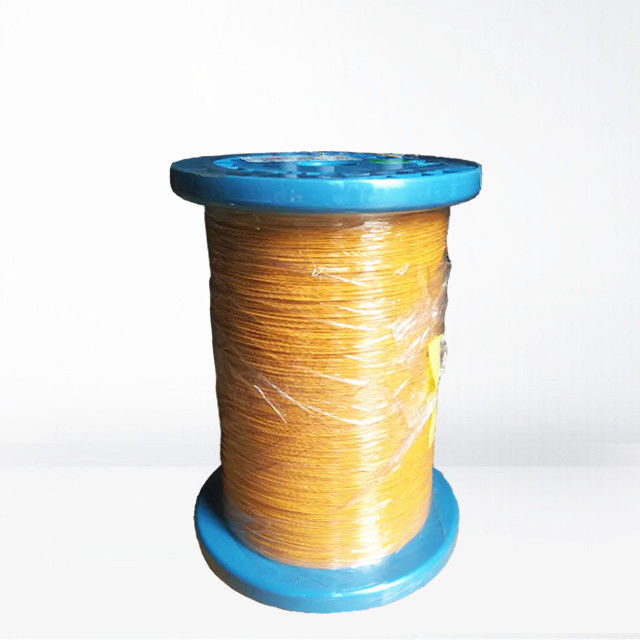

TIW Wire Triple Insulated Copper Wire Size 0.75mm Yellow Color
