| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | ISO9001/ISO14001 /UL/SGS |
| Model Number: | TIW-B |
| Minimum Order Quantity: | 3000 kilometers |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | Triple Insulated Wire | Color: | Red/Pink/Blue/Yellow |
|---|---|---|---|
| Size: | 0.10-1.00mm | Packing: | 3000m/roll |
| Rated Temperature: | 130 | Rated Voltage: | 6000 Vrms |
| Solderability: | Directly | Conductor: | High Purity Copper |
| Highlight: | insulated magnet wire,tiw wire |
||

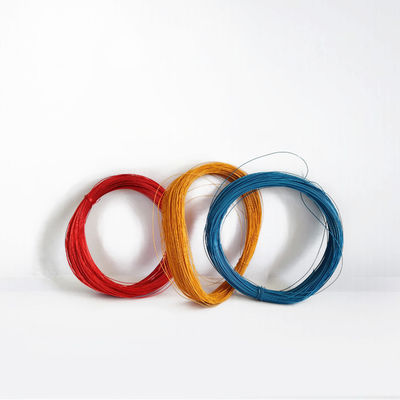

ISO STANDARD HIGH VOLTAGE ENAMELED COPPER WIRE TIW B TRIPLE INSULATED WIRE 0.1-1MM
1. Production standard range:0.1-1.0mm
2. Withstand voltage class, class B 130℃, class F 155℃.
3.Excellent withstand voltage characteristics, breakdown voltage greater than 15KV, obtained reinforced insulation.
4.No need to peel off the outer layer can be direct welding, solder ability 420℃-450℃≤3s.
5.Special abrasive resistance and surface smoothness, staticfriction coefficient ≤0.155, the product can meet the automatic winding machine high-speed winding.
6.Resistant chemical solvents and impregnated paint performance, Rating voltage Rated voltage(working voltage)1000VRMS, UL.
7. High strength insulation layer toughness, repeated bending strethc, the insulation layers will not crack damage.
