| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.15mm | Number Of Strands: | 60 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | Customized Copper Litz Wire 0.15mm 0.2mm Mult-strands Silk Covered Litz Wire |
| Product Name: | Customized Copper Litz Wire 0.15mm 0.2mm Mult-strands Silk Covered Litz Wire | ||
| Highlight: | Silk Covered Copper Litz Wire,0.15mm Copper Litz Wire,0.2mm Copper Litz Wire |
||

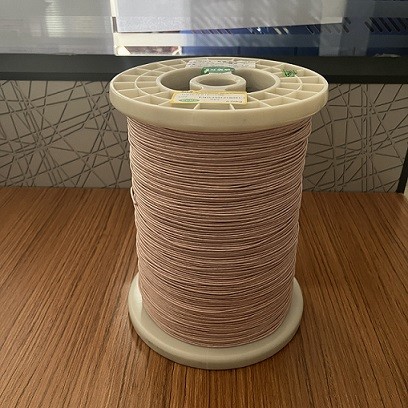

Customized Copper Litz Wire 0.15mm 0.2mm mult-strands Silk Covered Litz Wire
Our custom high-frequency Silk-covered Litz wire is a versatile, high-performance solution for a wide range of applications, including transformers, coils, and audio cables. With its unique construction, high-temperature resistance, and complete customization options, this product is designed to meet the highest quality and performance standards. Whether you are an engineer, manufacturer, or audiophile, our Silk covered Litz wire is the perfect choice for your next project, ensuring you get the best results. Experience the difference our premium Silk-covered Litz wire can make in your application today.
|
Type Conductor diameter*Strand number |
2USTC-H 0.15*60 | ||
|
Single wire(strand) |
Conductor diameter(mm) | 0.150±0.003 | |
| overall diameter (mm) | 0.165-0.177 | ||
| Thermal Class(℃) | 180 | ||
|
Strands construction |
Strands number | 60 | |
| Pitch(mm) | 32±3 | ||
| bunching direction | S | ||
|
Insulation layer |
Material type | Nylon | |
| Material specs(mm*mm or D) | 350 | ||
| Times of Wrapping | 1 | ||
| Overlap(%) or thickness(mm),mini | 0.02 | ||
| Wrapping direction | S | ||
|
Characteristics |
Overall Diameter | Nominal (mm) | 1.61 |
| Max(mm) | 1.62 | ||
| Max pinholes 个/6m | 40 | ||
| Max resistance (Ω/Km at20℃) | 17.28 | ||
| Breakdown voltage Mini (V) | 1300 | ||
