| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.2mm | Number Of Strands: | 300 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | Custom USTC White Silk Covered Stranded Wire 0.2mm Enameled Copper Litz Wire |
| Product Name: | Custom USTC White Silk Covered Stranded Wire 0.2mm Enameled Copper Litz Wire | ||
| Highlight: | White Silk Covered Stranded Wire,0.2mm Enameled Copper Litz Wire |
||

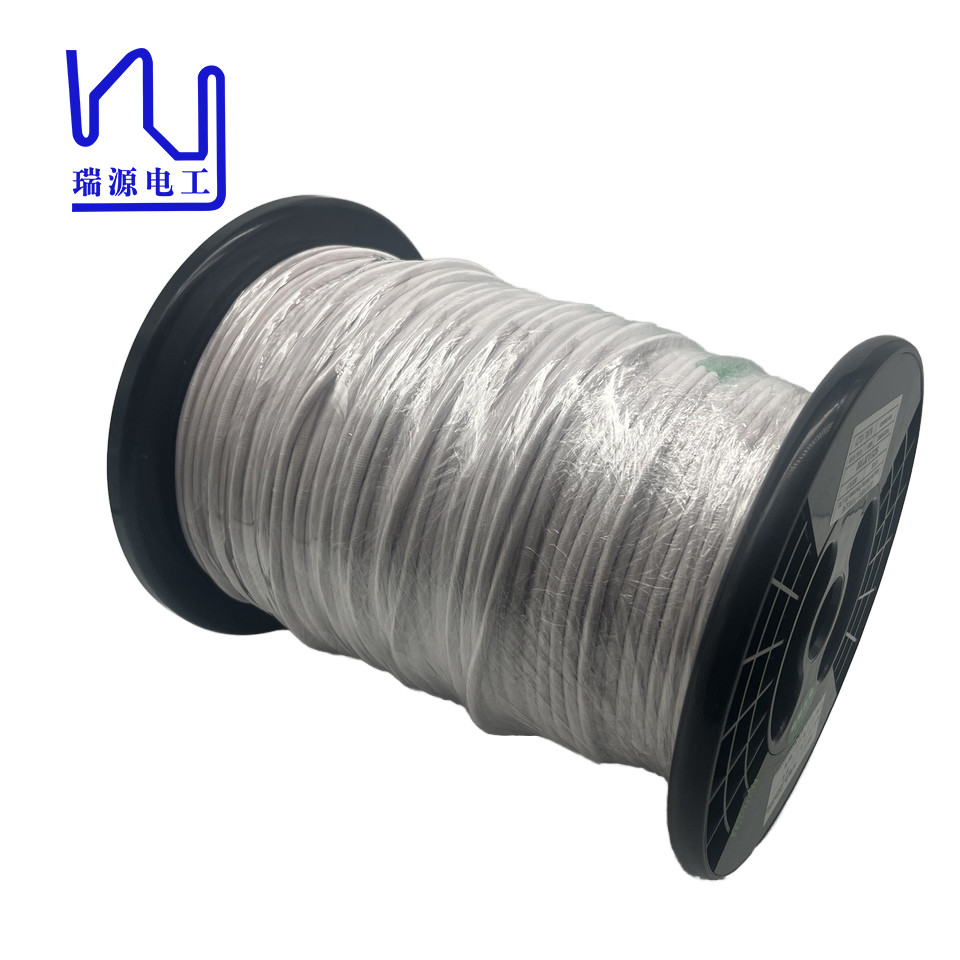

Custom USTC White Silk Covered Stranded Wire 0.2mm Enameled Copper Litz Wire
In addition, we also provide enameled wire with single wire diameter from 0.025mm to 0.8mm, and the number of strands can be increased to accommodate up to 10,000 strands. This flexibility ensures you get a product that's perfectly suited to your specific application.
One of the most important applications is in transformer windings. Transformers are key components in electrical systems, responsible for transferring electrical energy between circuits. The use of stranded wires in transformer windings improves efficiency by reducing losses due to skin effect and proximity effect.
|
Item |
Conductor outer diameter mm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Solderability |
|
Tech requirement |
0.216-0.231 |
0.2 |
5.49 |
0.001924 |
1600 |
390±5℃, 25s |
|
± |
|
0.003 |
Max |
Max. |
Min |
Smooth, no pinhole |
|
1 |
0.219-0.224 |
0.198-0.2 |
4.74-5.0 |
0.001843 |
3800 |
130 |
