| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.03mm | Number Of Strands: | 10 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | 2USTC-F 10 X 0.03mm Ultra Fine Silk Covered Litz Wire For Small Transformers |
| Product Name: | 2USTC-F 10 X 0.03mm Ultra Fine Silk Covered Litz Wire For Small Transformers | ||
| Highlight: | 2USTC-F Ustc Litz Wire,10 x 0.03mm Ustc Litz Wire,Small Transformers Ustc Litz Wire |
||

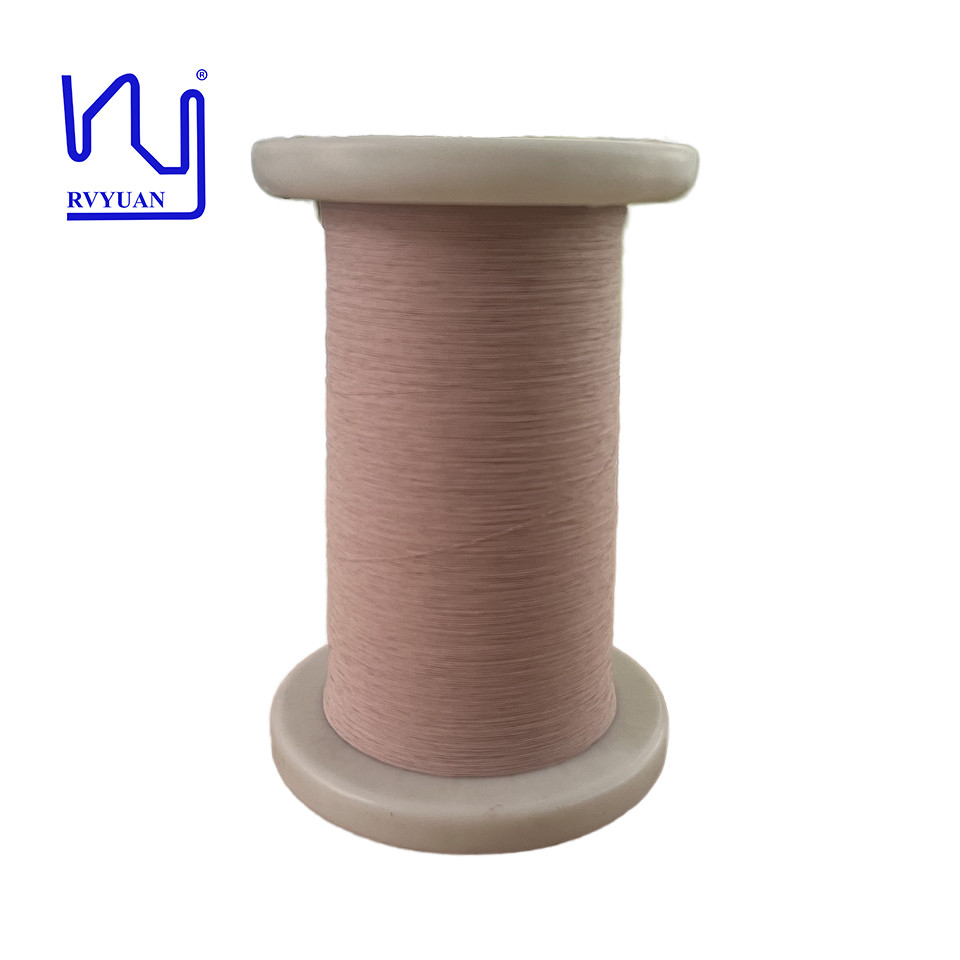

2USTC-F 10 x 0.03mm Ultra fine Silk Covered Litz Wire For Small Transformers
At the heart of our silk covered litz wire is the use of ultra-fine enameled copper wire, which has a diameter of only 0.03 mm. This ultra-fine wire is carefully crafted from 10 strands of ultra-fine wire to ensure optimal flexibility and minimal skin effect. The unique construction of our litz wire allows for superior conductivity, reducing energy losses and increasing the overall efficiency of transformer windings.
| Item | Conductor diameter mm | Single wire diameter mm | O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch mm | Pinhole |
| Tech requirement | 0.035-0.044 | 0.03 | 0.21 | 2.827 | 400 | 16 |
6m 20 faults |
| ± | 0.002 | Max | Max. | Min | 2 | Max | |
| 1 | 0.037 | 0.028 | 0.16 | 2.48 | 1700 | √ | 6 |
| 2 | 0.039 | 0.030 | 0.18 | 2.49 | 1900 | √ | 4 |
