| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.2mm | Number Of Strands: | 300 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | 2USTC-F 0.2mm X 300 High Frequency Silk Covered Litz Wire For Transformer |
| Product Name: | 2USTC-F 0.2mm X 300 High Frequency Silk Covered Litz Wire For Transformer | ||
| Highlight: | High Frequency Ustc Litz Wire,Transformer Ustc Litz Wire,0.2mm X 300 Ustc Litz Wire |
||

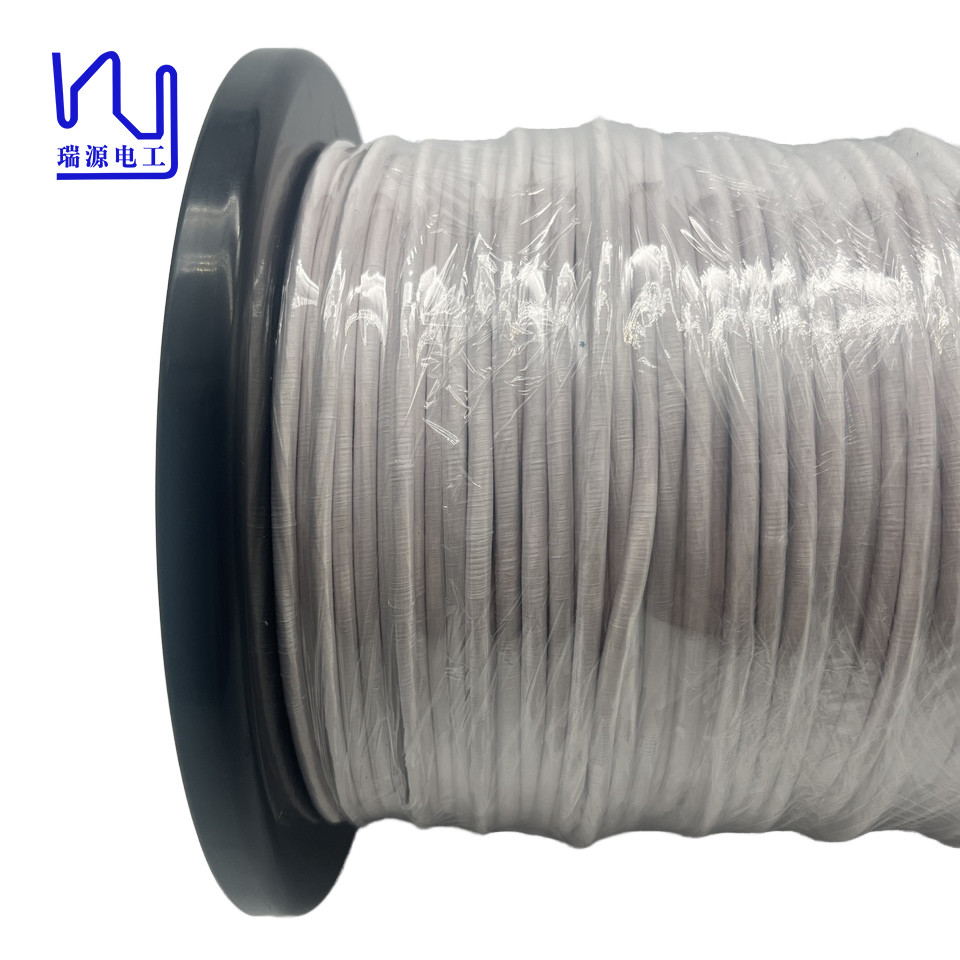

2USTC-F 0.2mm X 300 High Frequency Silk Covered Litz Wire For Transformer
In the field of electrical engineering, wire selection can significantly affect the performance and efficiency of equipment. We are proud to introduce our custom silk covered litz wire, a premium solution designed to meet the specific needs of your application.
The single wire has a diameter of 0.2 mm and consists of 300 strands twisted together and covered with nylon yarn, this nylon served litz wire has a temperature resistance rating of 155 degrees.
|
Item |
Conductor outer diameter mm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Solderability |
|
Tech requirement |
0.216-0.231 |
0.2 |
5.49 |
0.001924 |
1600 |
390±5℃, 25s |
|
± |
|
0.003 |
Max |
Max. |
Min |
Smooth, no pinhole |
|
1 |
0.219-0.224 |
0.198-0.2 |
4.74-5.0 |
0.001843 |
3800 |
130 |
