| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.2mm | Number Of Strands: | 300 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | HF 0.2mmx300 Litz Wire Served By Nylon Yarns |
| Product Name: | HF 0.2mmx300 Litz Wire Served By Nylon Yarns | ||
| Highlight: | 0.2mmx300 Litz Wire,Nylon Yarns Litz Wire,HF Litz Wire |
||

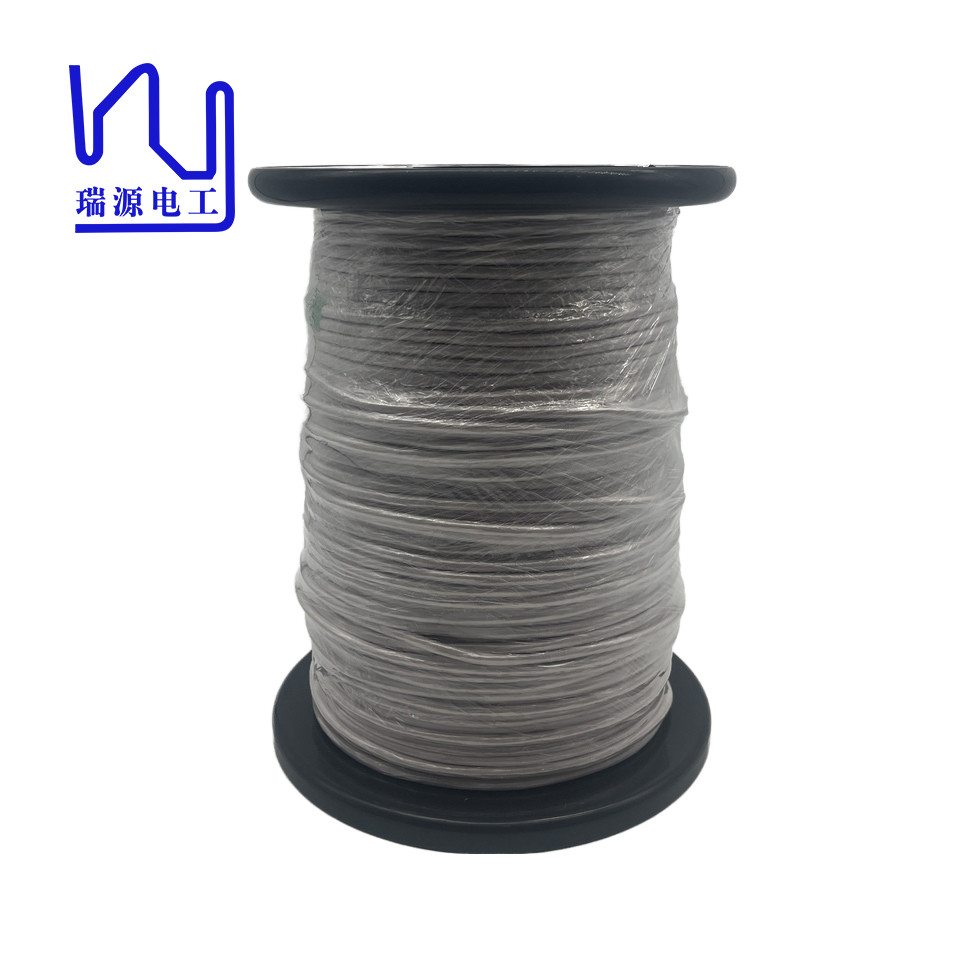

HF 0.2mmx300 Litz Wire Served by Nylon Yarns
One of the most important applications is in transformer windings. Transformers are key components in electrical systems, responsible for transferring electrical energy between circuits. The use of stranded wires in transformer windings improves efficiency by reducing losses due to skin effect and proximity effect. Our silk covered litz wire offers superior insulation and customizable features, making it especially suitable for this application. It ensures that the transformer is operating at optimal performance levels, helping to improve the overall efficiency of the electrical system.
|
Item |
Conductor outer diameter mm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Solderability |
|
Tech requirement |
0.216-0.231 |
0.2 |
5.49 |
0.001924 |
1600 |
390±5℃, 25s |
|
± |
|
0.003 |
Max |
Max. |
Min |
Smooth, no pinhole |
|
1 |
0.219-0.224 |
0.198-0.2 |
4.74-5.0 |
0.001843 |
3800 |
130 |
