| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.15mm | Number Of Strands: | 60 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | USTC 155 0.1mm Nylon Covered Litz Wire Copper Stranded Litz Wire |
| Product Name: | USTC 155 0.1mm Nylon Covered Litz Wire Copper Stranded Litz Wire | ||
| Highlight: | USTC 155 Litz Wire,0.1mm Nylon Covered Litz Wire,Copper Stranded Litz Wire |
||

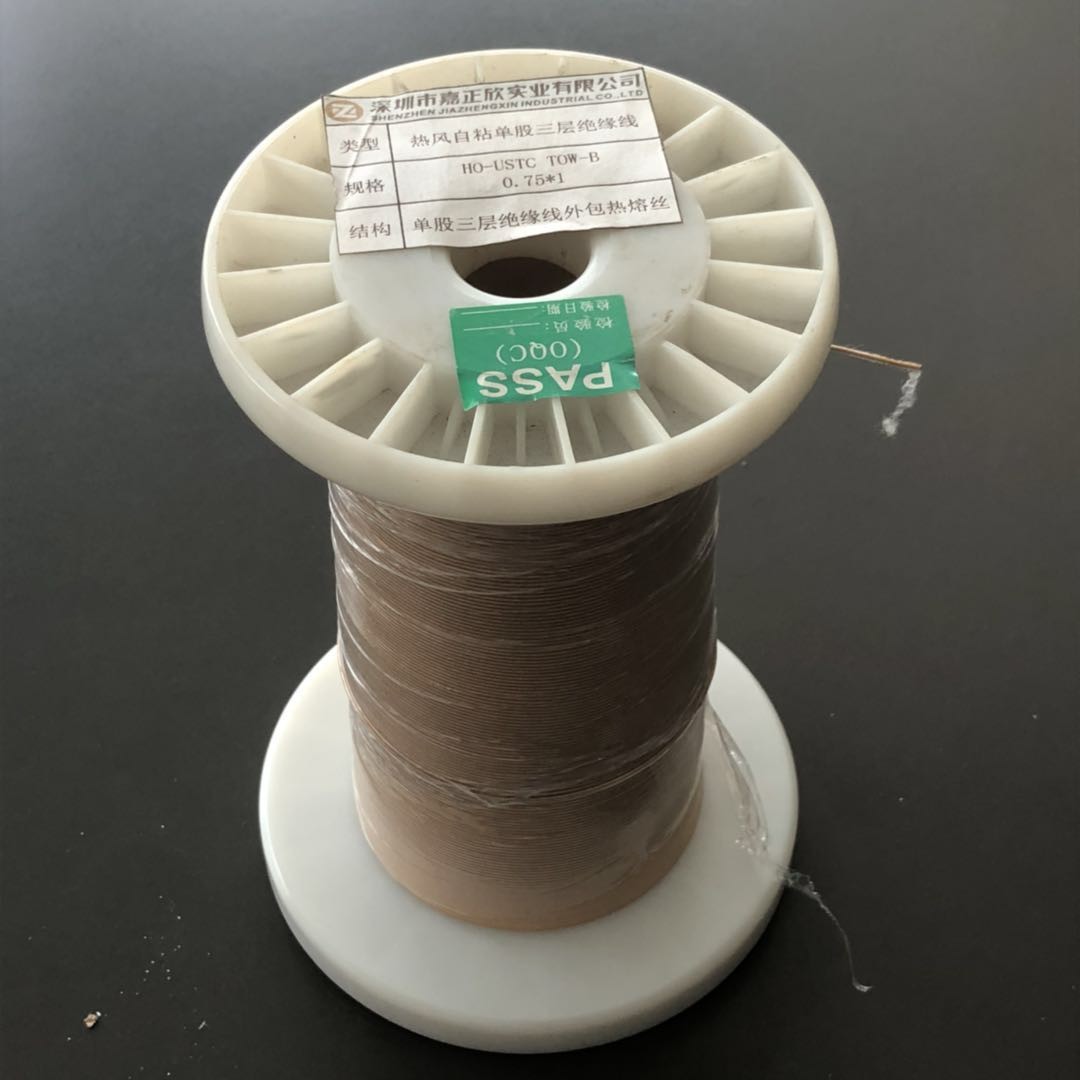

USTC 155 0.1mm Nylon Covered Litz Wire Copper Stranded Litz Wire
We offer the option of using silver conductors for the strands, further enhancing the performance of our silk covered stranded wire. Silver is known for its exceptional conductivity, making it an excellent choice for applications where electrical performance is critical. By combining silver conductors with the luxurious silk covering, we offer a product that not only excels in performance, but also stands out in terms of quality and craftsmanship.
|
Type Conductor diameter*Strand number |
2USTC-H 0.15*60 | ||
|
Single wire(strand) |
Conductor diameter(mm) | 0.150±0.003 | |
| overall diameter (mm) | 0.165-0.177 | ||
| Thermal Class(℃) | 180 | ||
|
Strands construction |
Strands number | 60 | |
| Pitch(mm) | 32±3 | ||
| bunching direction | S | ||
|
Insulation layer |
Material type | Nylon | |
| Material specs(mm*mm or D) | 350 | ||
| Times of Wrapping | 1 | ||
| Overlap(%) or thickness(mm),mini | 0.02 | ||
| Wrapping direction | S | ||
|
Characteristics |
Overall Diameter | Nominal (mm) | 1.61 |
| Max(mm) | 1.62 | ||
| Max pinholes 个/6m | 40 | ||
| Max resistance (Ω/Km at20℃) | 17.28 | ||
| Breakdown voltage Mini (V) | 1300 | ||
