| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.15mm | Number Of Strands: | 60 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | Custom High Frequency Litz Wire Copper Wire Stranded For Transformers |
| Product Name: | Custom High Frequency Litz Wire Copper Wire Stranded For Transformers | ||
| Highlight: | Custom High Frequency Litz Wire,Transformers Stranded Litz Wire,Copper Wire Stranded Litz Wire |
||

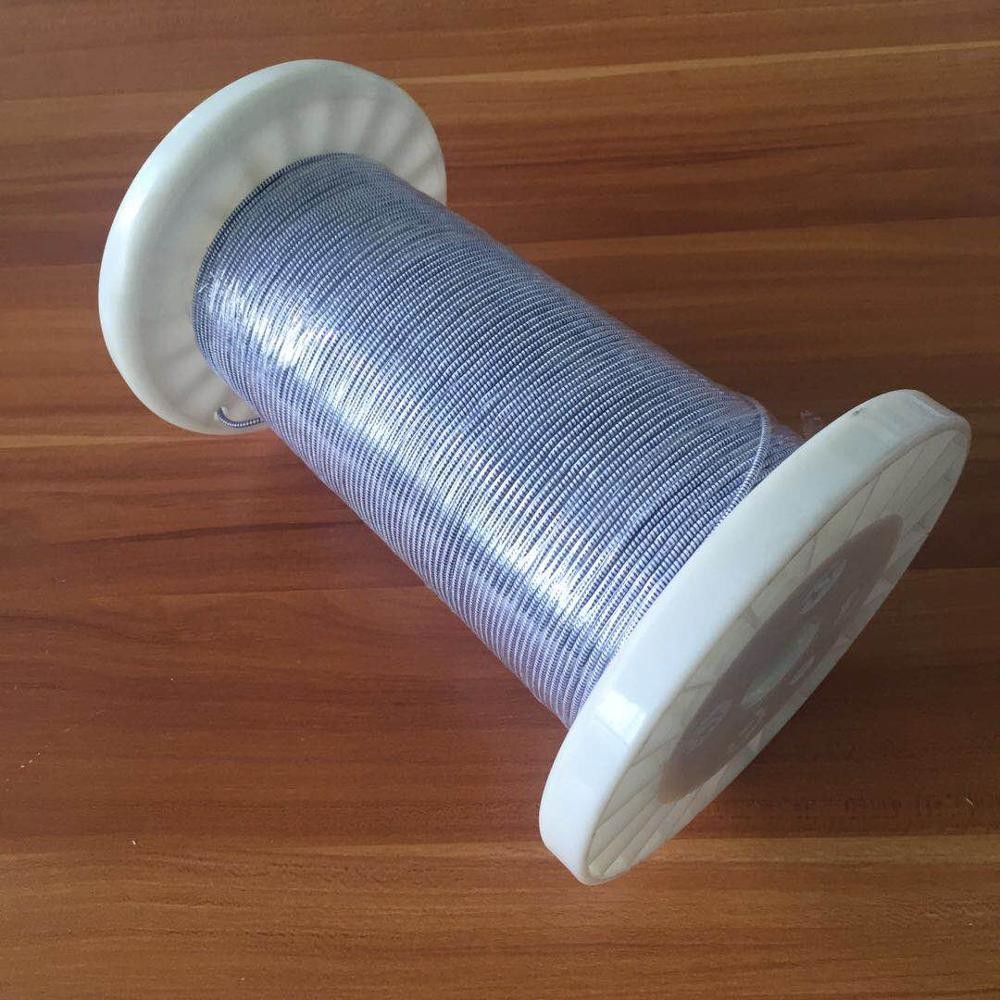

Custom High Frequency Litz Wire Copper Wire Stranded For Transformers
Customization is at the heart of our products. We understand that different projects require different specifications, which is why we support full customization of our silk covered stranded wire. Customers can choose the size of the individual wires, ranging from 0.025mm to 0.8mm in diameter. Additionally, the number of strands can be customized based on specific requirements, with up to 12,700 strands available. This level of customization ensures that our customers receive a product that is exactly what their project requires, whether they are designing a transformer, coil, or hi-fi audio cable.
|
Type Conductor diameter*Strand number |
2USTC-H 0.15*60 | ||
|
Single wire(strand) |
Conductor diameter(mm) | 0.150±0.003 | |
| overall diameter (mm) | 0.165-0.177 | ||
| Thermal Class(℃) | 180 | ||
|
Strands construction |
Strands number | 60 | |
| Pitch(mm) | 32±3 | ||
| bunching direction | S | ||
|
Insulation layer |
Material type | Nylon | |
| Material specs(mm*mm or D) | 350 | ||
| Times of Wrapping | 1 | ||
| Overlap(%) or thickness(mm),mini | 0.02 | ||
| Wrapping direction | S | ||
|
Characteristics |
Overall Diameter | Nominal (mm) | 1.61 |
| Max(mm) | 1.62 | ||
| Max pinholes 个/6m | 40 | ||
| Max resistance (Ω/Km at20℃) | 17.28 | ||
| Breakdown voltage Mini (V) | 1300 | ||
