| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.15mm | Number Of Strands: | 60 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | Custom High Frequency Litz Wire 0.15mmX60 Copper Wire Stranded For Transformers |
| Product Name: | Custom High Frequency Litz Wire 0.15mmX60 Copper Wire Stranded For Transformers | ||
| Highlight: | Custom High Frequency Litz Wire,0.15mmX60 Litz Wire,Transformers Litz Wire |
||

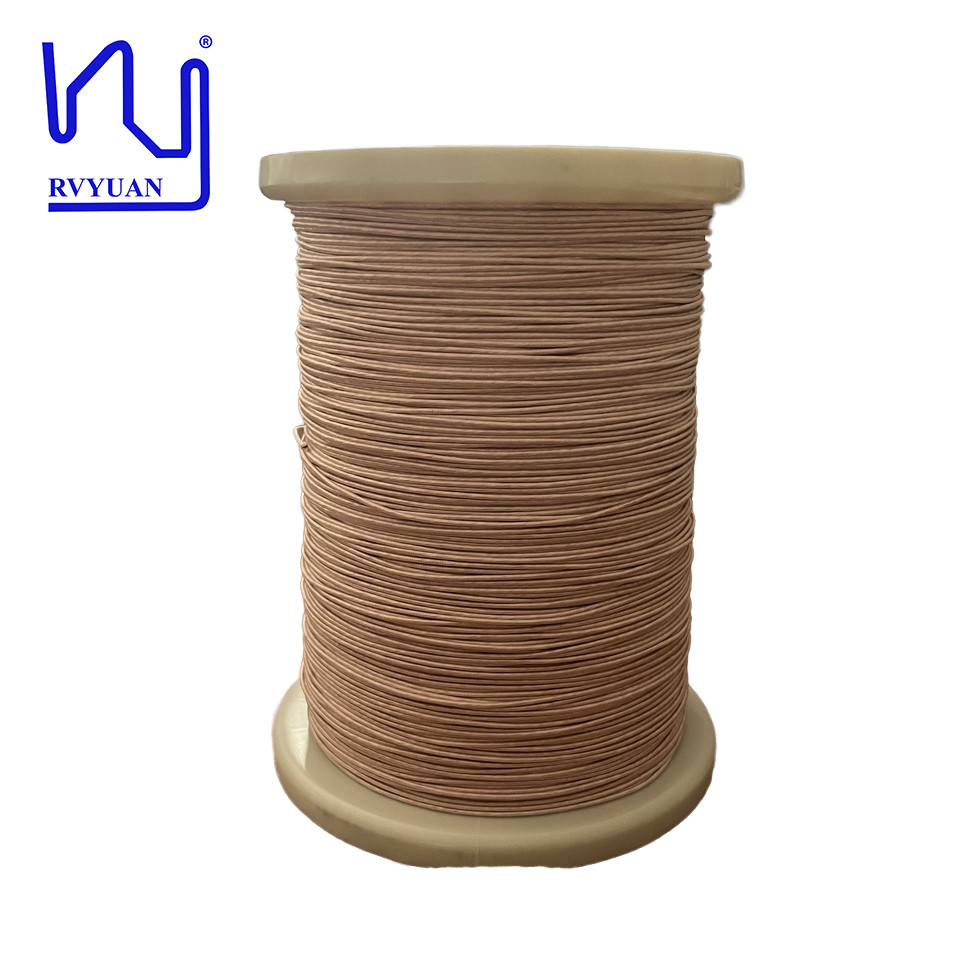

Custom High Frequency Litz Wire 0.15mmX60 Copper Wire Stranded For Transformers
Our Silk Covered Litz Wire is also gaining acceptance in the audio industry. Using precious natural silk as the outer layer not only adds to the aesthetics, it also helps improve the acoustic performance of the wire. Audiophiles and sound engineers appreciate the enhanced sound quality that Silk Covered Litz Wire provides in audio cables. The unique properties of the silk help reduce unwanted resonances and distortion, resulting in clearer, more accurate sound reproduction. This makes our products an excellent choice for high-end audio applications where every detail counts.
|
Type Conductor diameter*Strand number |
2USTC-H 0.15*60 | ||
|
Single wire(strand) |
Conductor diameter(mm) | 0.150±0.003 | |
| overall diameter (mm) | 0.165-0.177 | ||
| Thermal Class(℃) | 180 | ||
|
Strands construction |
Strands number | 60 | |
| Pitch(mm) | 32±3 | ||
| bunching direction | S | ||
|
Insulation layer |
Material type | Nylon | |
| Material specs(mm*mm or D) | 350 | ||
| Times of Wrapping | 1 | ||
| Overlap(%) or thickness(mm),mini | 0.02 | ||
| Wrapping direction | S | ||
|
Characteristics |
Overall Diameter | Nominal (mm) | 1.61 |
| Max(mm) | 1.62 | ||
| Max pinholes 个/6m | 40 | ||
| Max resistance (Ω/Km at20℃) | 17.28 | ||
| Breakdown voltage Mini (V) | 1300 | ||
