| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.15mm | Number Of Strands: | 60 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | 2USTC-F/H 0.15mmX60 Stranded Copper Wire Silk Covered Litz Wire For Transformers |
| Product Name: | 2USTC-F/H 0.15mmX60 Stranded Copper Wire Silk Covered Litz Wire For Transformers | ||
| Highlight: | 0.15mmX60 Stranded Copper Wire,Transformers Stranded Copper Wire,2USTC-F/H Stranded Copper Wire |
||

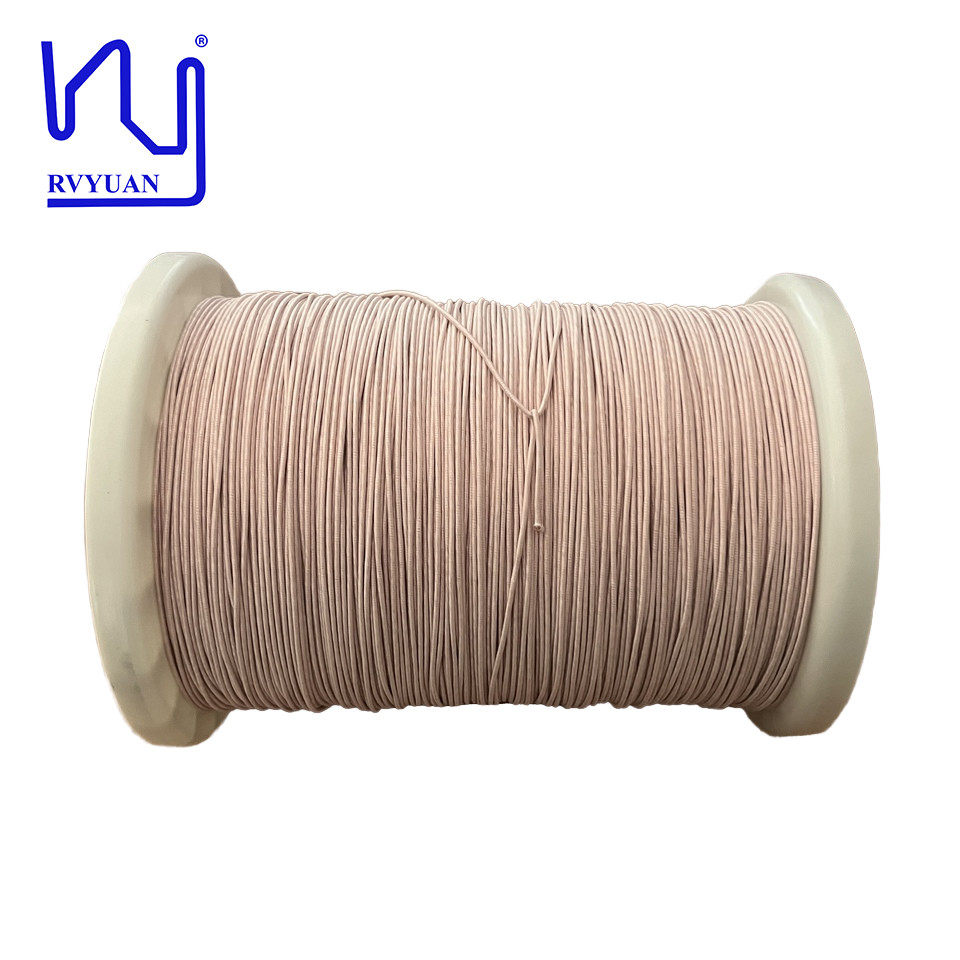

2USTC-F/H 0.15mmX60 Stranded Copper Wire Silk Covered Litz Wire For Transformers
Our Silk Covered Litz Wire is ideal for winding transformers and coils where efficiency and performance are critical. Litz wire is designed to minimize skin effect and proximity effect losses, resulting in superior conductivity and reduced energy dissipation. This is especially important in transformer applications, where the wire's ability to handle high frequencies can significantly improve the overall performance and efficiency of the equipment. By using our Silk Covered Litz Wire, manufacturers can ensure their transformers and coils are operating at optimal levels, providing reliable power conversion and energy transfer.
|
Type Conductor diameter*Strand number |
2USTC-H 0.15*60 | ||
|
Single wire(strand) |
Conductor diameter(mm) | 0.150±0.003 | |
| overall diameter (mm) | 0.165-0.177 | ||
| Thermal Class(℃) | 180 | ||
|
Strands construction |
Strands number | 60 | |
| Pitch(mm) | 32±3 | ||
| bunching direction | S | ||
|
Insulation layer |
Material type | Nylon | |
| Material specs(mm*mm or D) | 350 | ||
| Times of Wrapping | 1 | ||
| Overlap(%) or thickness(mm),mini | 0.02 | ||
| Wrapping direction | S | ||
|
Characteristics |
Overall Diameter | Nominal (mm) | 1.61 |
| Max(mm) | 1.62 | ||
| Max pinholes 个/6m | 40 | ||
| Max resistance (Ω/Km at20℃) | 17.28 | ||
| Breakdown voltage Mini (V) | 1300 | ||
