| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.03mm | Number Of Strands: | 5 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | USTC155 0.03mm X 5 Silk Covered Litz Wire Polyester Nylon Enameled Stranded Wire |
| Product Name: | USTC155 0.03mm X 5 Silk Covered Litz Wire Polyester Nylon Enameled Stranded Wire | ||
| Highlight: | Polyester Nylon Enameled Stranded Wire,USTC155 Silk Covered Litz Wire,Ustc 155 Litz Wire |
||

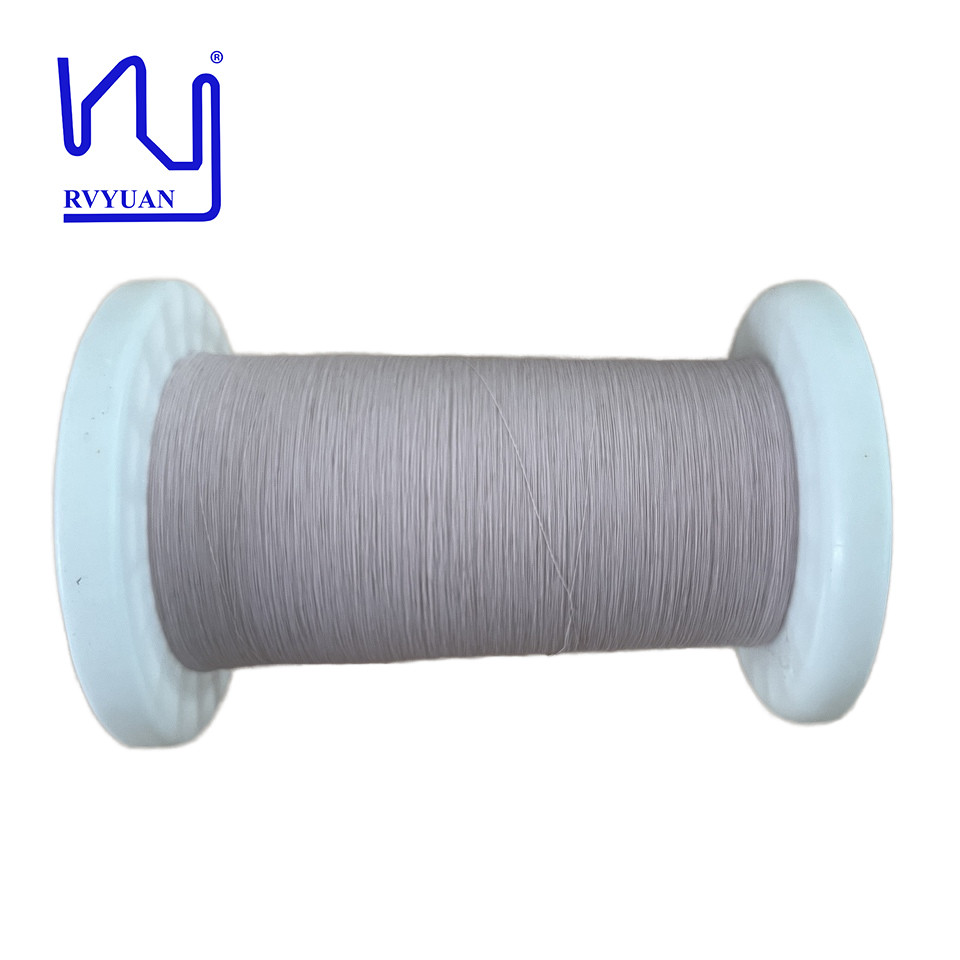

USTC155 0.03mm X 5 Silk Covered Litz Wire Polyester Nylon Enameled Stranded Wire
Our silk covered Litz wire with nylon represents the pinnacle of wire technology. Its small outer diameter coupled with excellent performance characteristics make it an indispensable component for small transformer windings and other specialized applications. Use our silk coverd Litz wire and experience the difference that quality craftsmanship and innovative design can make for your project.
| Item | Conductor diameter mm | Single wire diameter mm | O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch mm | Pinhole |
| Tech requirement | 0.033-0.044 | 0.03 | 0.18 | 5.654 | 400 | 16 |
6m 20 faults |
| ± | 0.002 | Max | Max. | Min | 2 | Max | |
| 1 | 0.037 | 0.028 | 0.14 | 5.106 | 2600 | √ | 6 |
| 2 | 0.038 | 0.029 | 0.17 | 5.100 | 2800 | √ | 4 |
