| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.03mm | Number Of Strands: | 10 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | 2USTC-F 0.03mmx5 Strands Copper Wire Silk Cover Litz Wire Insulated |
| Product Name: | 2USTC-F 0.03mmx5 Strands Copper Wire Silk Cover Litz Wire Insulated | ||
| Highlight: | Silk Cover Ustc Litz Wire,Insulated Ustc Litz Wire,0.03mmx5 Strands Ustc Litz Wire |
||

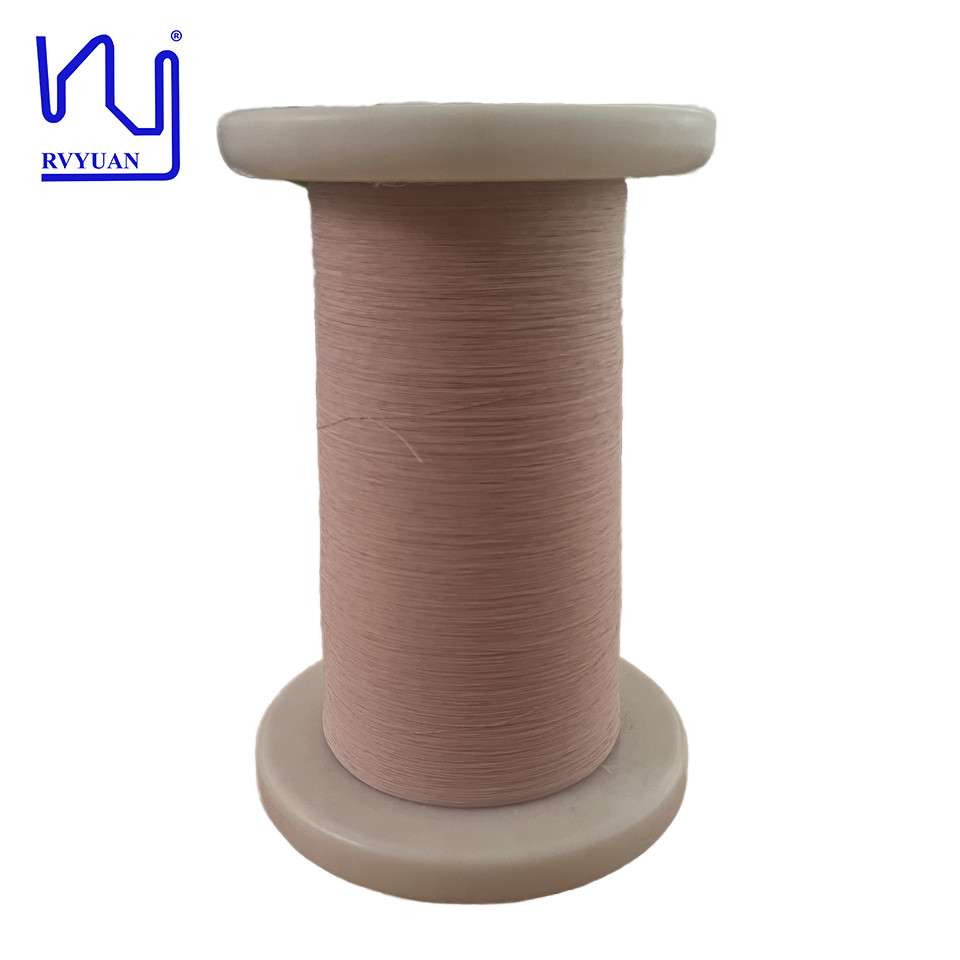

2USTC-F 0.03mmx5 Strands Copper Wire Silk Cover Litz Wire Insulated
Because of the wire’s smaller outer diameter allows for compact designs without compromising performance. The silk covering ensures that the wire maintains its integrity and functionality, even in challenging environments.
| Item | Conductor diameter mm | Single wire diameter mm | O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch mm | Pinhole |
| Tech requirement | 0.033-0.044 | 0.03 | 0.18 | 5.654 | 400 | 16 |
6m 20 faults |
| ± | 0.002 | Max | Max. | Min | 2 | Max | |
| 1 | 0.037 | 0.028 | 0.14 | 5.106 | 2600 | √ | 6 |
| 2 | 0.038 | 0.029 | 0.17 | 5.100 | 2800 | √ | 4 |
