| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.03mm | Number Of Strands: | 10 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | 2USTC-F 5×0.03mm Silk Cover Litz Wire Copper Conductor Insulated |
| Product Name: | 2USTC-F 5×0.03mm Silk Cover Litz Wire Copper Conductor Insulated | ||
| Highlight: | Copper Conductor Ustc Litz Wire,5×0.03mm Ustc Litz Wire,Insulated Ustc Litz Wire |
||

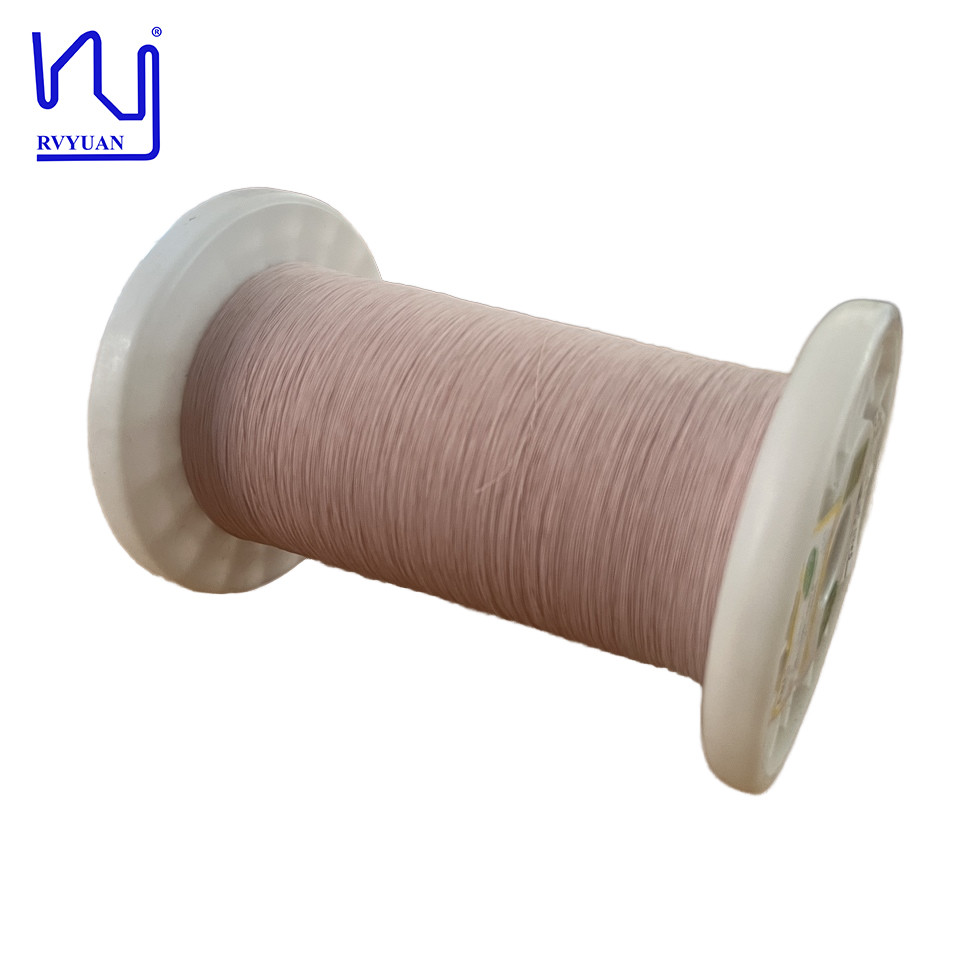

2USTC-F 5×0.03mm Silk Cover Litz Wire Copper Conductor Insulated
This innovative product features a unique construction consisting of five ultra-fine strands, each measuring just 0.03 mm in diameter. The combination of these strands creates a highly flexible and efficient conductor, ideal for use in small transformer windings and other complex electrical components.
| Item | Conductor diameter mm | Single wire diameter mm | O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch mm | Pinhole |
| Tech requirement | 0.033-0.044 | 0.03 | 0.18 | 5.654 | 400 | 16 |
6m 20 faults |
| ± | 0.002 | Max | Max. | Min | 2 | Max | |
| 1 | 0.037 | 0.028 | 0.14 | 5.106 | 2600 | √ | 6 |
| 2 | 0.038 | 0.029 | 0.17 | 5.100 | 2800 | √ | 4 |
