| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Taped litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Electrical Vehicle Use 2UEW-F-PI 0.06*385 High Breakdown Voltage Taped Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm | Conductor: | Copper |
| Insulation: | PI Film | Rated Temperature: | 180 |
| Key Word: | Electrical Vehicle Use 2UEW-F-PI 0.06*385 High Breakdown Voltage Taped Litz Wire | No. Of Strands: | 385 |
| Highlight: | 0.06*385 Litz Wire,High Breakdown Voltage Litz Wire,Electrical Vehicle Litz Wire |
||

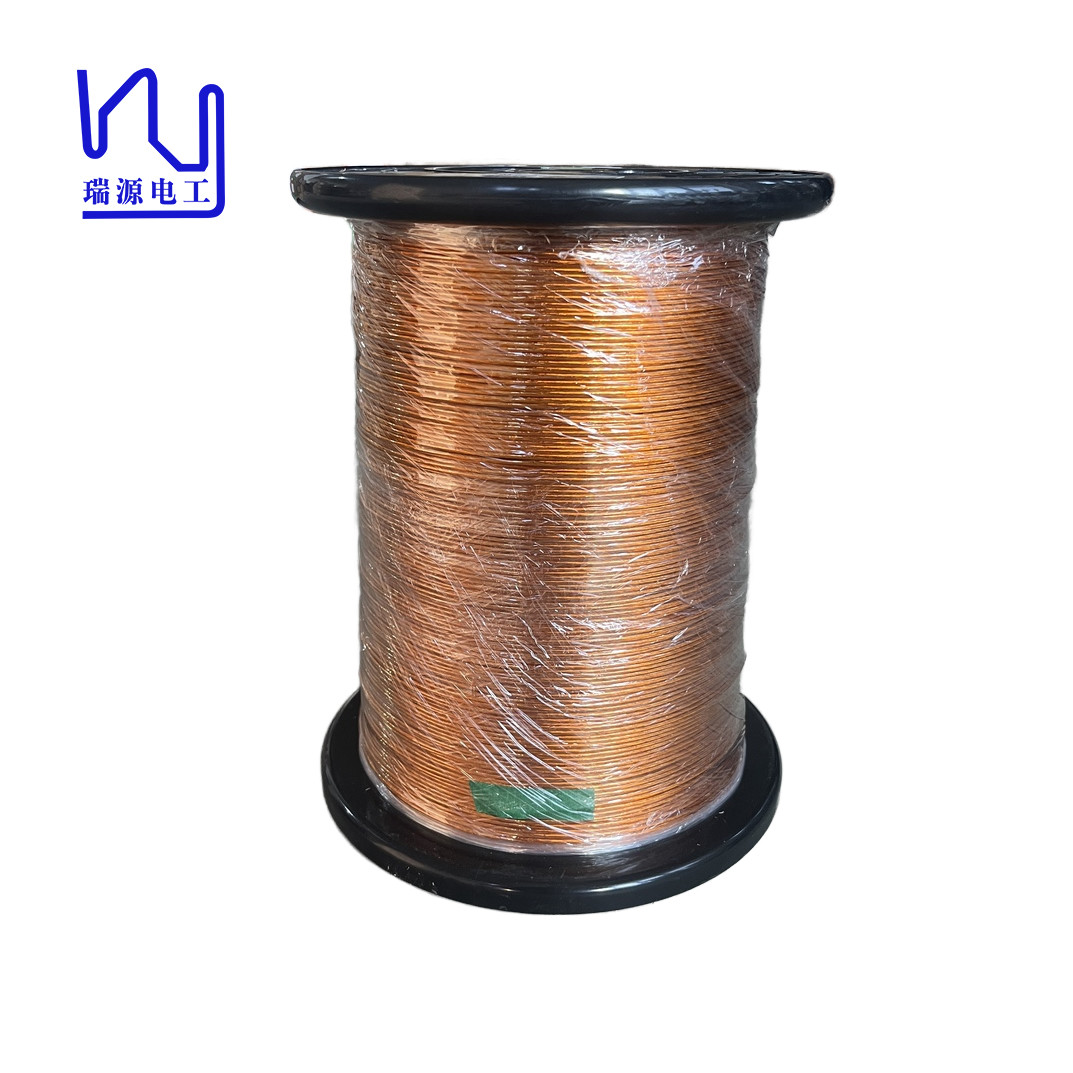

Electrical Vehicle Use 2UEW-F-PI 0.06*385 High Breakdown Voltage Taped Litz Wire
Our Taped Litz Wire is suitable for a variety of other applications including inductors, motors and high frequency coils. This wire is versatile and is an excellent choice for engineers and designers looking to optimize product efficiency and reliability. Whether you are developing a new transformer or upgrading an existing design, our Taped Litz Wire delivers the performance and durability needed to meet modern electrical engineering challenges.
|
Outgoing test of stranded wire |
Spec: 0.06x385 |
Model: 2UEW-F-PI |
|
Item |
Standard |
Test result |
|
Outer conductor diameter(mm) |
0.068-0.081 |
0.068-0.071 |
|
Conductor diameter(mm) |
0.06±0.003 |
0.056-0.060 |
|
Overall diameter (mm) |
Max.1.86 |
1.68-1.82 |
|
Pitch(mm) |
29±5 |
17 |
|
Max resistance (Ω/m at20℃) |
Max. 0.01809 |
0.01573 |
|
Breakdown voltage Mini (V) |
6000 |
13700 |
|
NO. Of strands |
385 |
77x5 |
|
Tape overlap% |
Min.50 |
53 |
