| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Taped litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Taped Litz Wire 0.06mmx385 Class 180 PI Taped Copper Stranded Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm | Conductor: | Copper |
| Insulation: | PI Film | Rated Temperature: | 180 |
| Key Word: | Taped Litz Wire 0.06mmx385 Class 180 PI Taped Copper Stranded Litz Wire | No. Of Strands: | 385 |
| Highlight: | Class 180 PI Taped Litz Wire,Copper Stranded Taped Litz Wire,0.06mmx385 Taped Litz Wire |
||

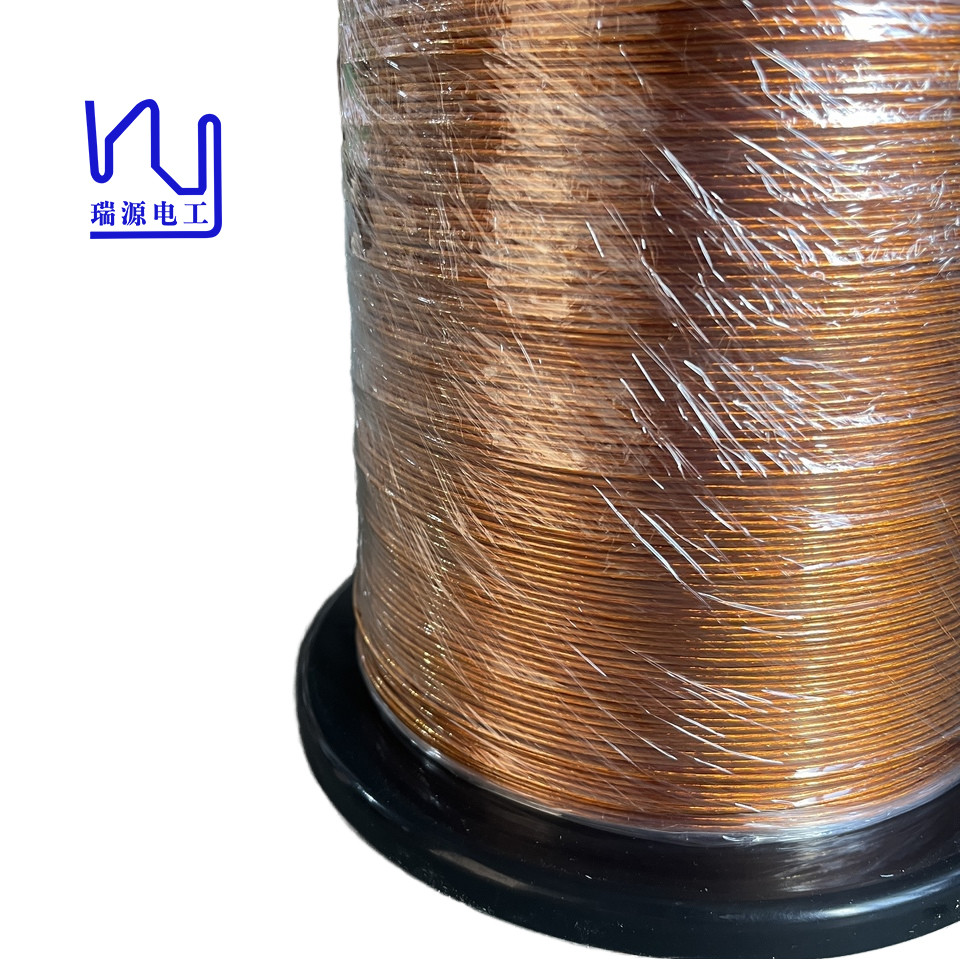

Taped Litz Wire 0.06mmx385 Class 180 PI Taped Copper Stranded Litz Wire
This is a taped litz wire, it’s made of 385 strands of 0.06mm enamelled copper wire stranded and covered with PI film.
Litz wire is known for its ability to reduce skin effect and proximity effect losses, making it ideal for high frequency applications. Our Taped Litz Wire goes a step further and features a taped wrapped design that significantly improves pressure resistance. Rated to over 6000 volts, the line meets the stringent requirements of modern electrical systems, ensuring they operate under high-stress conditions without compromising safety or efficiency.
|
Outgoing test of stranded wire |
Spec: 0.06x385 |
Model: 2UEW-F-PI |
|
Item |
Standard |
Test result |
|
Outer conductor diameter(mm) |
0.068-0.081 |
0.068-0.071 |
|
Conductor diameter(mm) |
0.06±0.003 |
0.056-0.060 |
|
Overall diameter (mm) |
Max.1.86 |
1.68-1.82 |
|
Pitch(mm) |
29±5 |
17 |
|
Max resistance (Ω/m at20℃) |
Max. 0.01809 |
0.01573 |
|
Breakdown voltage Mini (V) |
6000 |
13700 |
|
NO. Of strands |
385 |
77x5 |
|
Tape overlap% |
Min.50 |
53 |
