| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Taped litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Class 180 385x0.06mm PI Taped Litz Wire Min.6000V Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm | Conductor: | Copper |
| Insulation: | PI Film | Rated Temperature: | 180 |
| Key Word: | Class 180 385x0.06mm PI Taped Litz Wire Min.6000V Litz Wire | No. Of Strands: | 385 |
| Highlight: | 385x0.06mm PI Taped Litz Wire,Class 180 PI Taped Litz Wire,Min.6000V PI Taped Litz Wire |
||

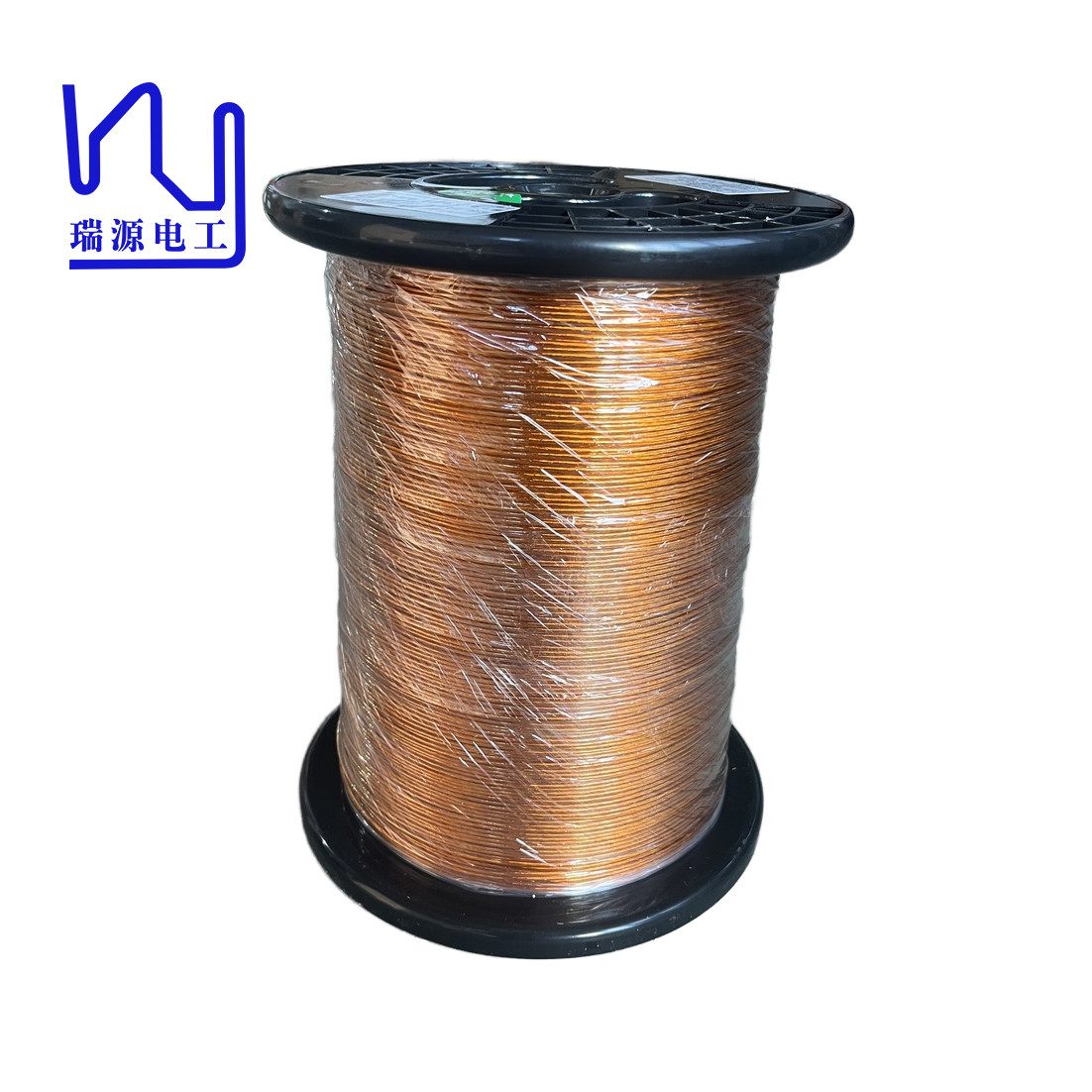

Class 180 385x0.06mm PI Taped Litz Wire Min.6000V litz wire
One of the main applications for our Taped Litz Wire is in transformers where high frequency performance is critical. Transformers are essential components in the distribution and conversion of electricity, and the efficiency of these devices can be greatly affected by the quality of the wires used. By using our high frequency litz wires, manufacturers can achieve lower losses and better thermal management, thereby improving the overall performance of the transformer.
|
Outgoing test of stranded wire |
Spec: 0.06x385 |
Model: 2UEW-F-PI |
|
Item |
Standard |
Test result |
|
Outer conductor diameter(mm) |
0.068-0.081 |
0.068-0.071 |
|
Conductor diameter(mm) |
0.06±0.003 |
0.056-0.060 |
|
Overall diameter (mm) |
Max.1.86 |
1.68-1.82 |
|
Pitch(mm) |
29±5 |
17 |
|
Max resistance (Ω/m at20℃) |
Max. 0.01809 |
0.01573 |
|
Breakdown voltage Mini (V) |
6000 |
13700 |
|
NO. Of strands |
385 |
77x5 |
|
Tape overlap% |
Min.50 |
53 |
