| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEWF 4X0.2mm Litz Wire Class 155 High Frequency Copper Stranded Wire For Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.2mm | Conductor: | Copper |
| Key Word: | 2UEWF 4X0.2mm Litz Wire Class 155 High Frequency Copper Stranded Wire For Transformer | No. Of Strands: | 40 |
| Thermal Rating: | 155 | ||
| Highlight: | High Frequency Copper Stranded Wire,Transformer Copper Stranded Wire,4X0.2mm Copper Stranded Wire |
||

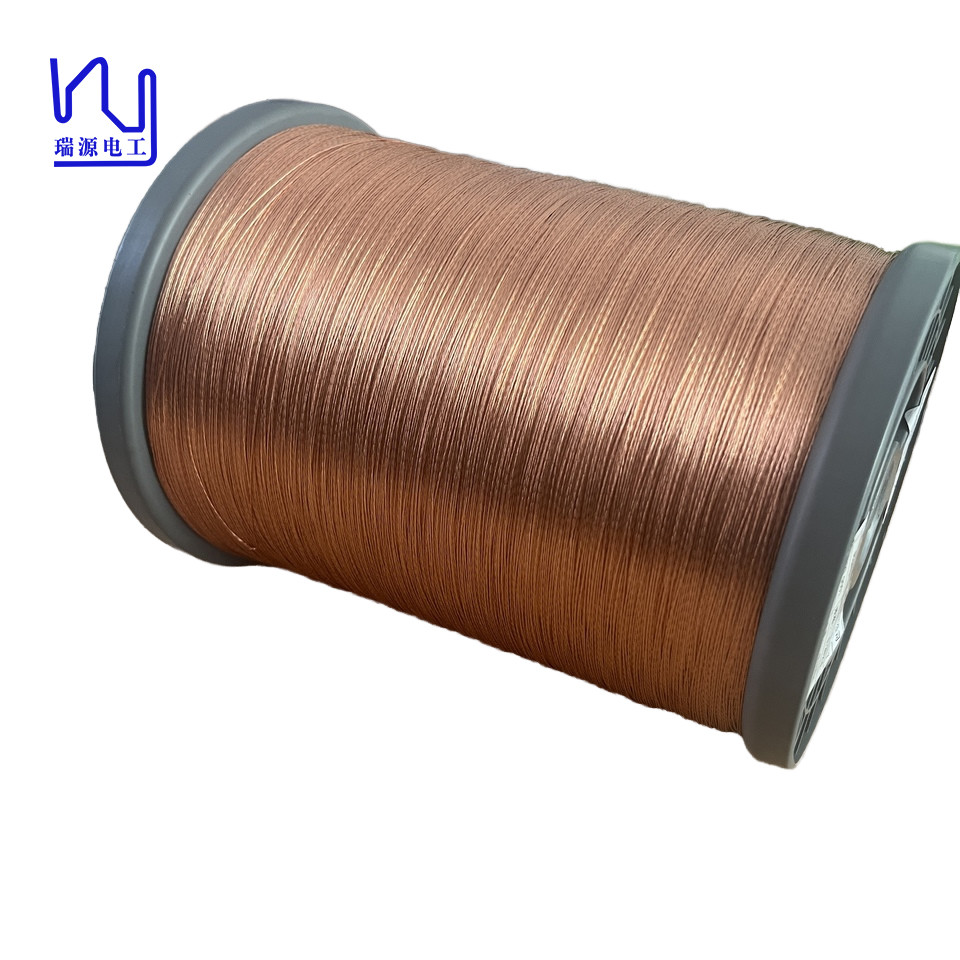

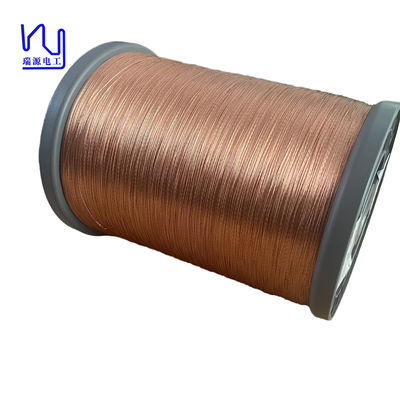

2UEWF 4X0.2mm litz wire Class 155 High Frequency Copper Stranded Wire For Transformer
This specialized stranded wire is carefully crafted from four strands of 0.2 mm enameled copper wire, ensuring optimal flexibility and minimal skin effect at high frequencies. The unique construction of Litz wire reduces electromagnetic interference, making it ideal for high frequency transformers and other demanding electronic applications.
| Outgoing test of stranded wire | Spec: 0.2x4 | Model: 2UEWF | |
| Conductor diameter(mm) | 0.20±0.003 | 0.198 | 0.200 |
| Overall diameter (mm) | 0.216-0.231 | 0.220 | 0.223 |
| Pitch(mm) | 14±2 | OK | OK |
| Overall Diameter | Max.0.53 | 0.51 | 0.51 |
| Max pinholes Faults/6m | Max. 6 | 0 | 0 |
| Max resistance (Ω/m at20℃) | Max. 0.1443 | 0.1376 | 0.1371 |
| Breakdown voltage Mini (V) | 1600 | 5700 | 5800 |
